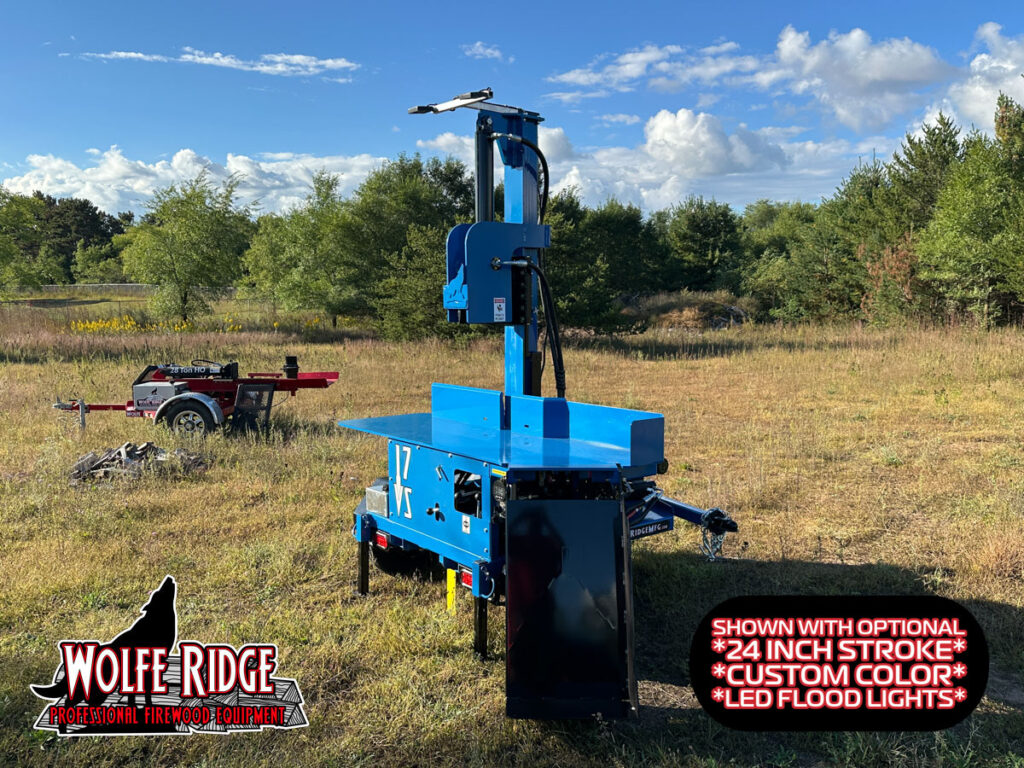

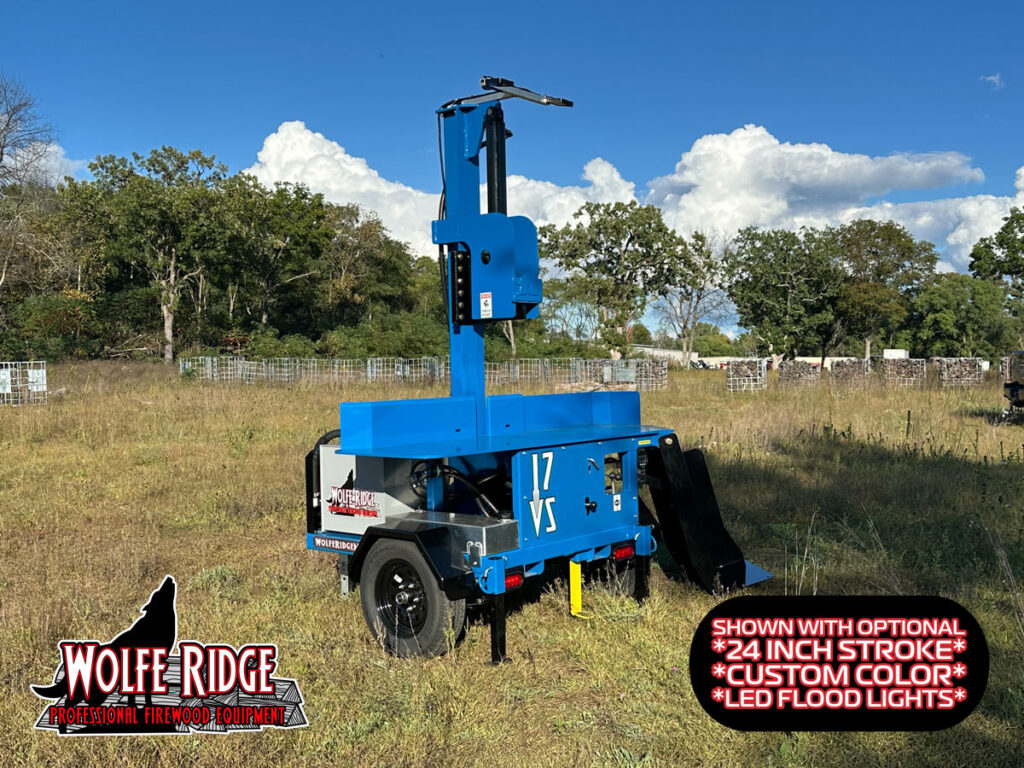

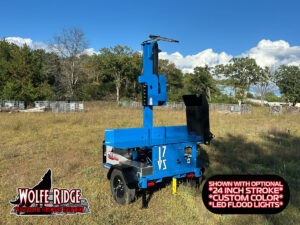

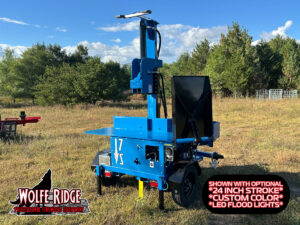

Get the best vertical splitter value with a Wolfe Ridge 17VS-PB! The 17VS-PB is heavy built, easy to use, highway towable and includes hydraulic POWER BEYOND functionality. Powered by a Honda iGX700 v-twin engine and 27 gallon per minute hydraulic pump, the 17VS-PB is fast and powerful. Built to last, made in the USA, all Wolfe Ridge machines are produced with top-quality materials to ensure reliable performance, day in and day out.

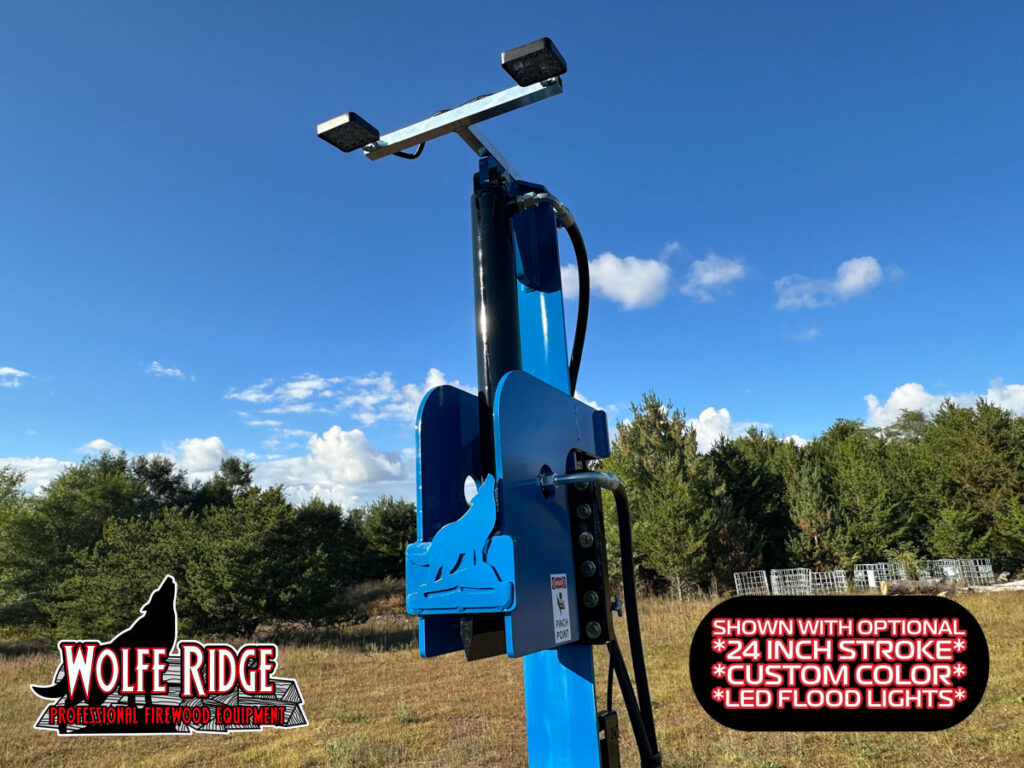

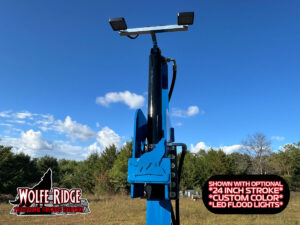

The 17VS-PB frame is designed, cut, and welded in house. It features a large 14 inch multi-taper wedge made from AR400 material. With a 17 ton cylinder and 27 gallon per minute hydraulic pump, the 17VS-PB has a fast cycle time of 3.5 seconds or 4 seconds with the optional 24 inch stroke length! The secondary pump section provides a 5 gallon per minute flow rate to power auxiliary accessories such as a standalone conveyor.
- 17-ton splitting force
- SUPER FAST 3.5 second cycle time
- 180 degree Hydraulic log lift – lift up to 36” diameter rounds
- Hydraulic power beyond functionality
- Powerful Honda engine for consistent performance

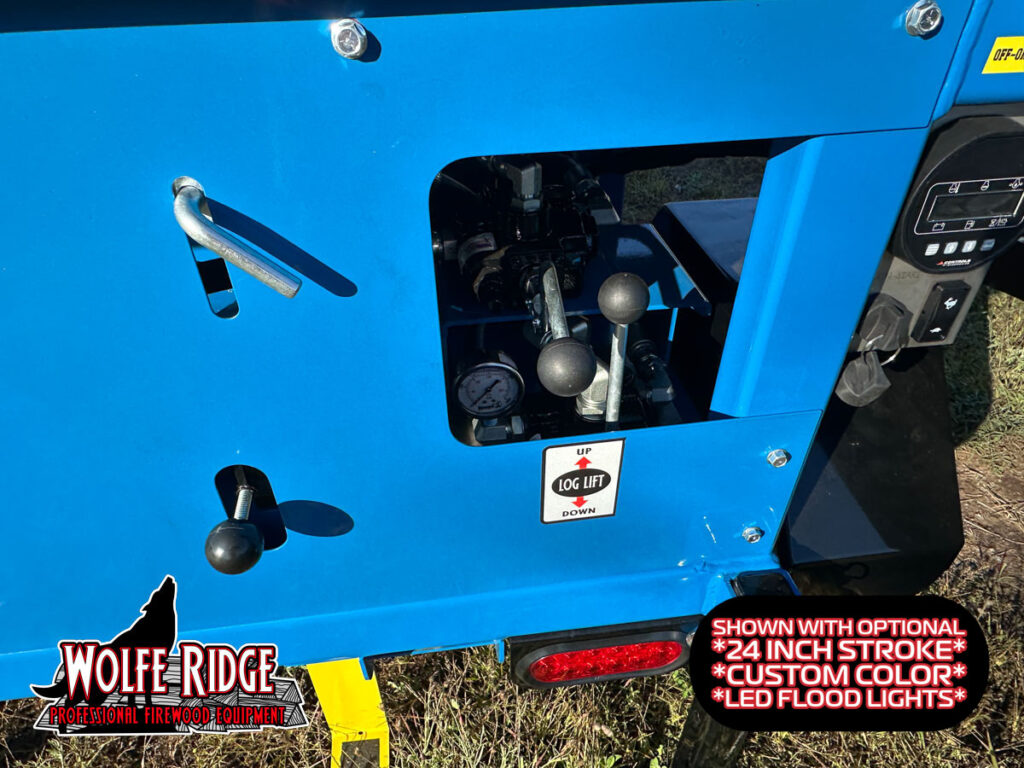

- Easy-to-use controls – Made in USA Prince hydraulic valves
- Sandblasted and powder coated for a tough, long lasting appearance
- Red, Orange, Gray, or Blue as standard color options
- Custom colors with any RAL color code for added fee
- 1 year warranty on machine – 3 year on engine
Whether you’re looking to split large rounds into manageable sizes, or make the perfect size firewood consistently for your most demanding clients, Wolfe Ridge has you covered. The 17VS-PB is the ultimate log splitter choice for making bundle wood with consistent split sizes, minimal waste, and offers future expansion flexibility with the Power Beyond functionality. Invest in a high-quality, made in USA log splitter that delivers exceptional results every time.
Tech Specs

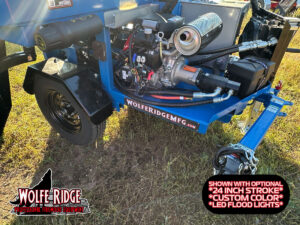

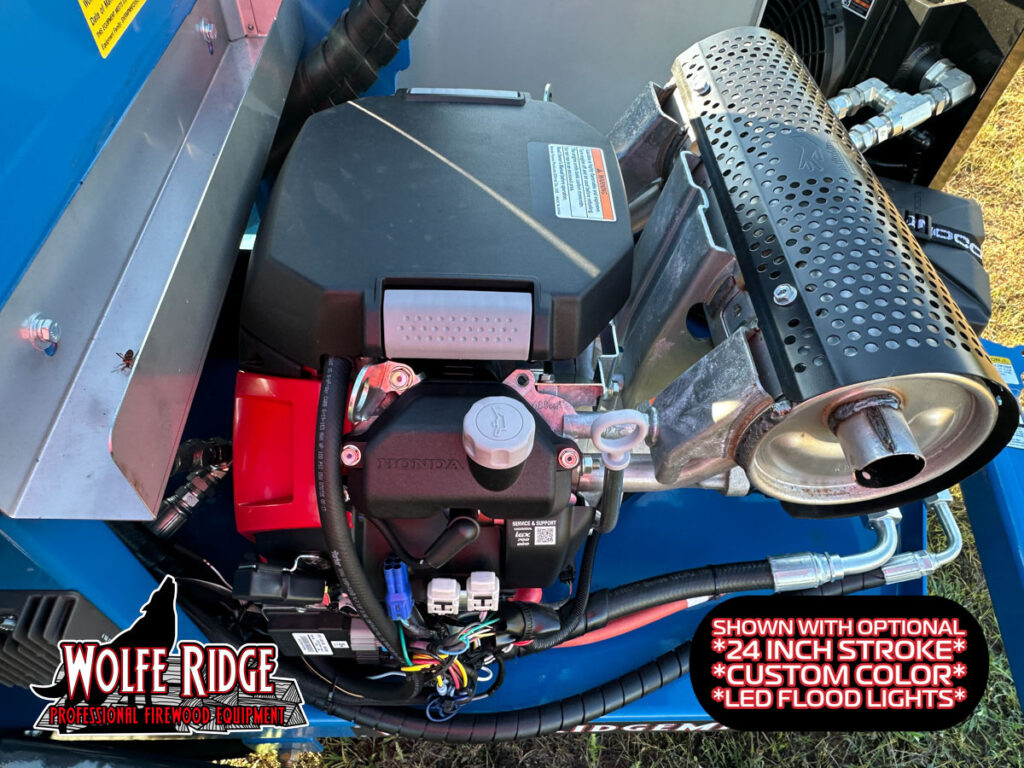

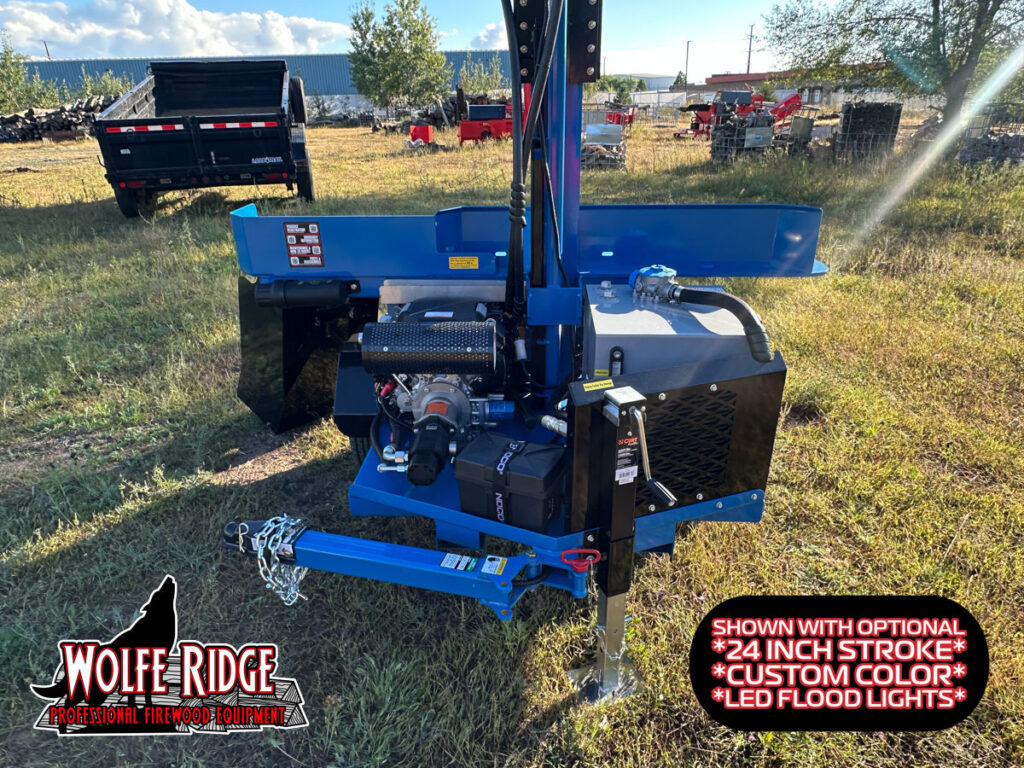

- Honda iGX700 22HP engine with EFI and electronic governor

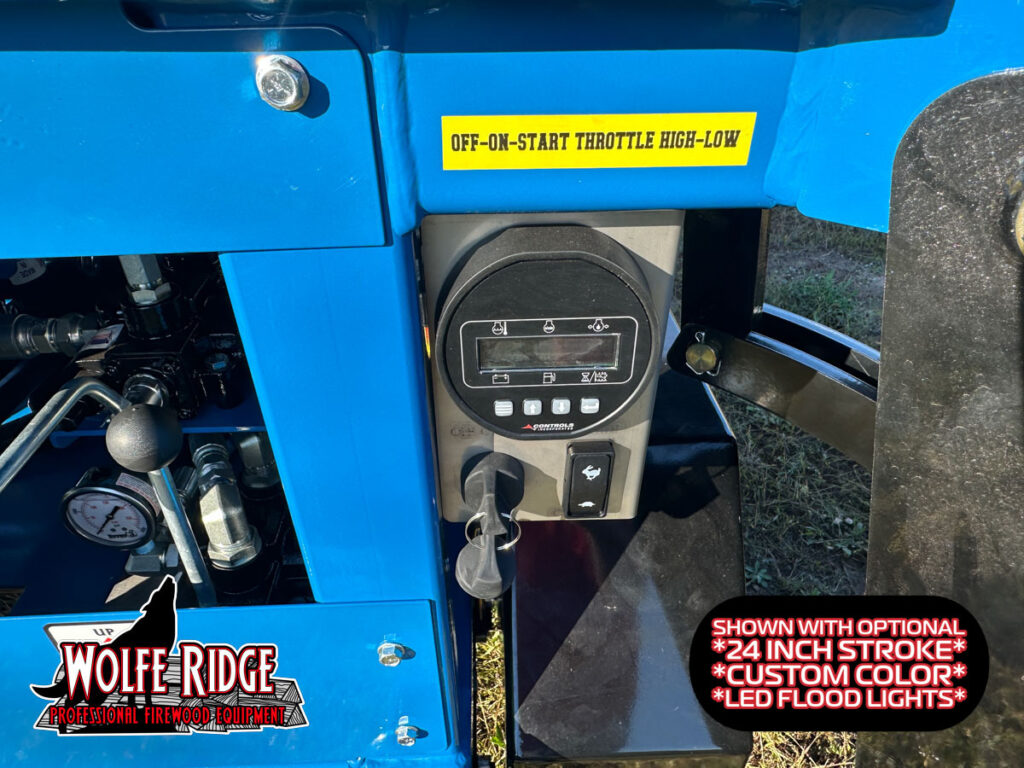

- Electric start with engine controls at operator’s position
- 6 gallon aluminum welded fuel tank with front fill up location
- 27 GPM / 5 GPM hydraulic pump

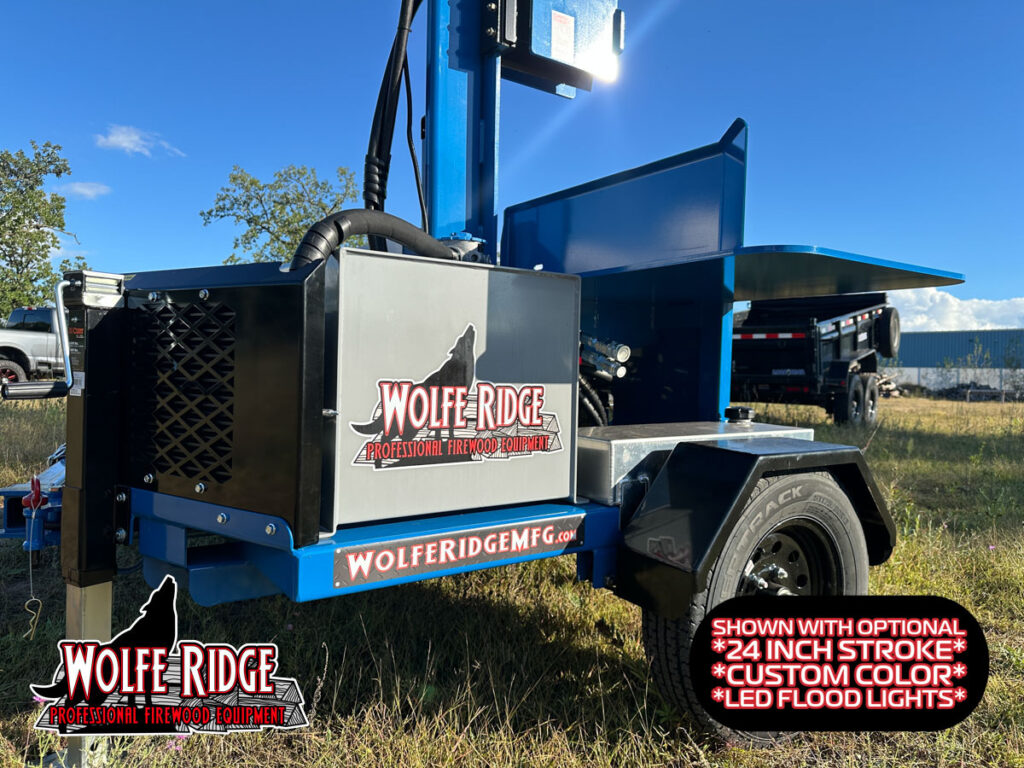

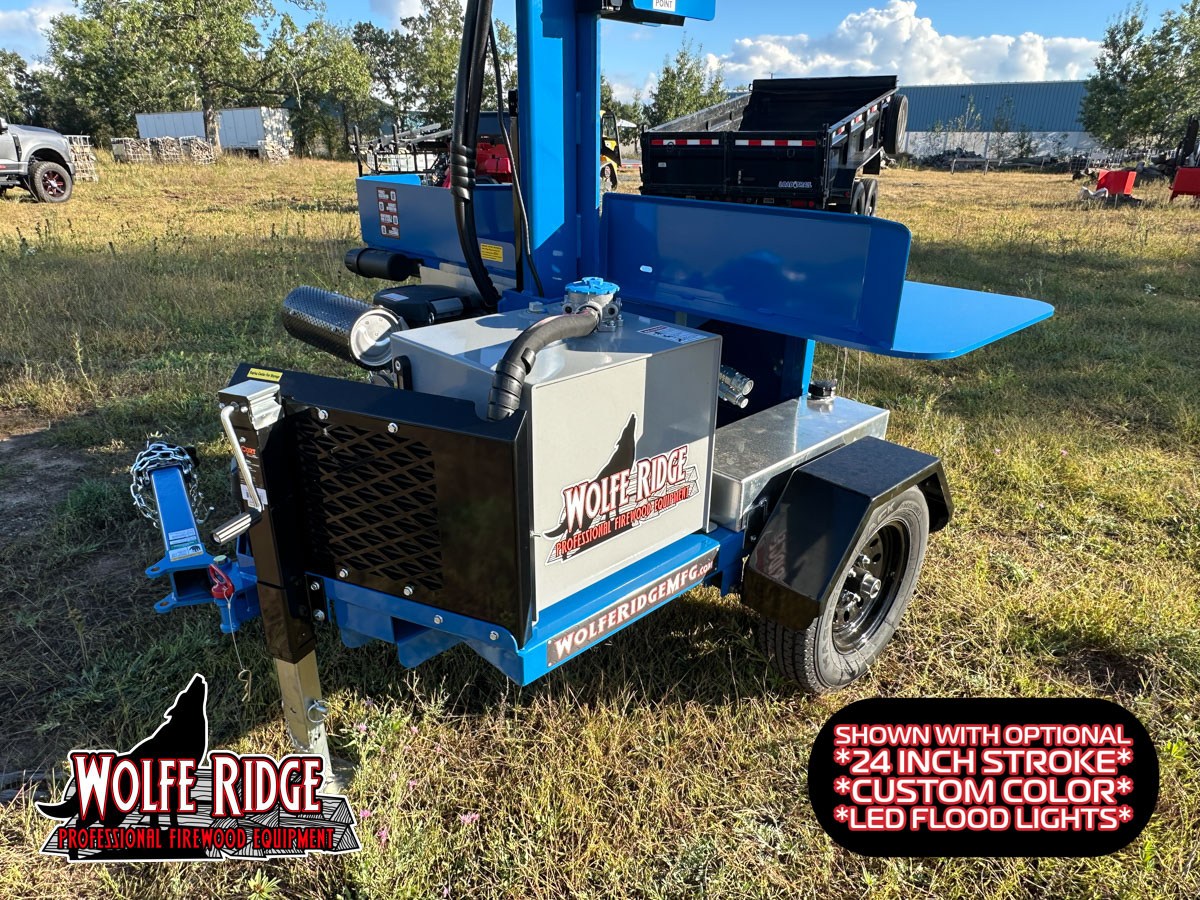

- NEW high capacity 30 gallon steel hydraulic oil tank with cartridge return filter
- Foot pedal controlled split action with auto return and manual override
- Hydraulic log lift included
- 180 degrees of movement
- 400lb lift capacity
- 180 degrees of movement
- Hydraulic Power Beyond
- 5GPM pump section
- Hydraulic forward and momentary reverse

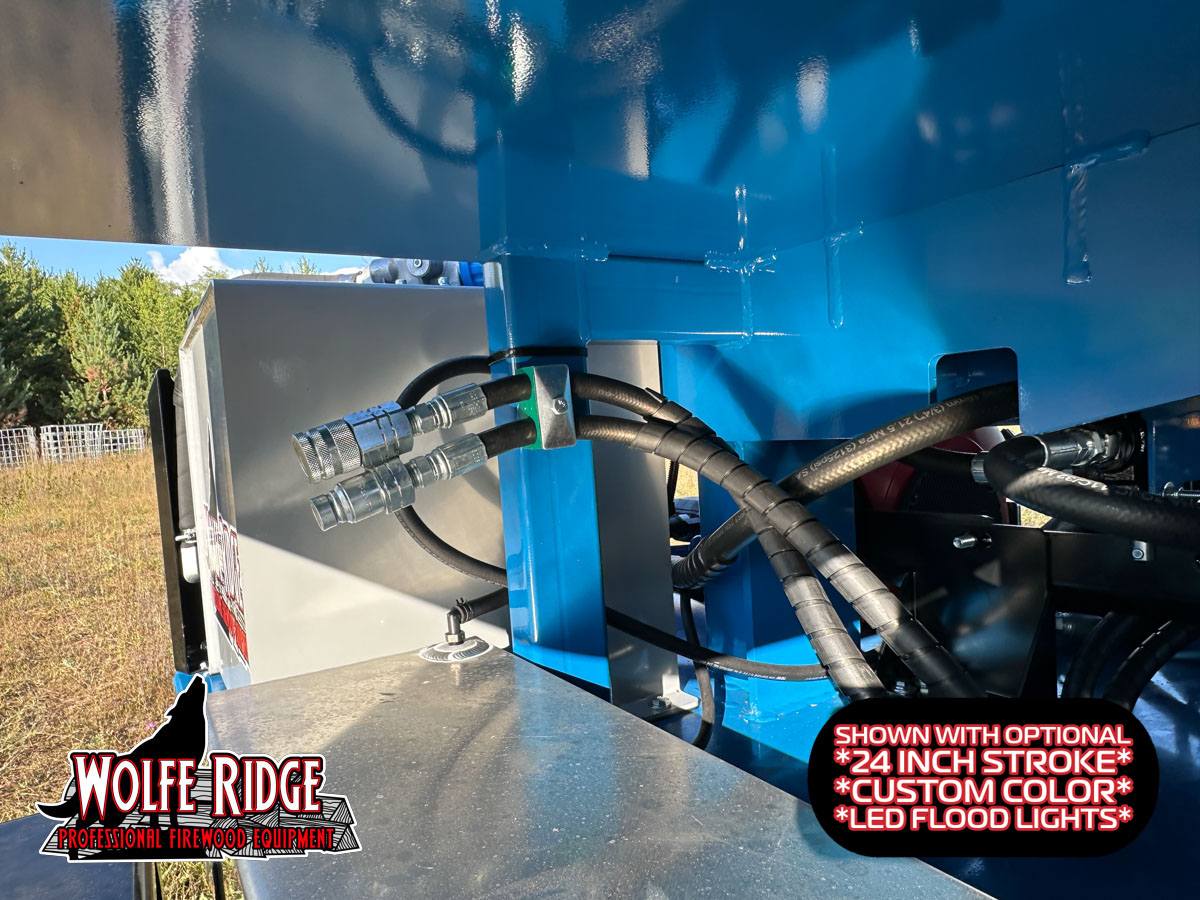

- Flat face quick connectors mounted under splitting table

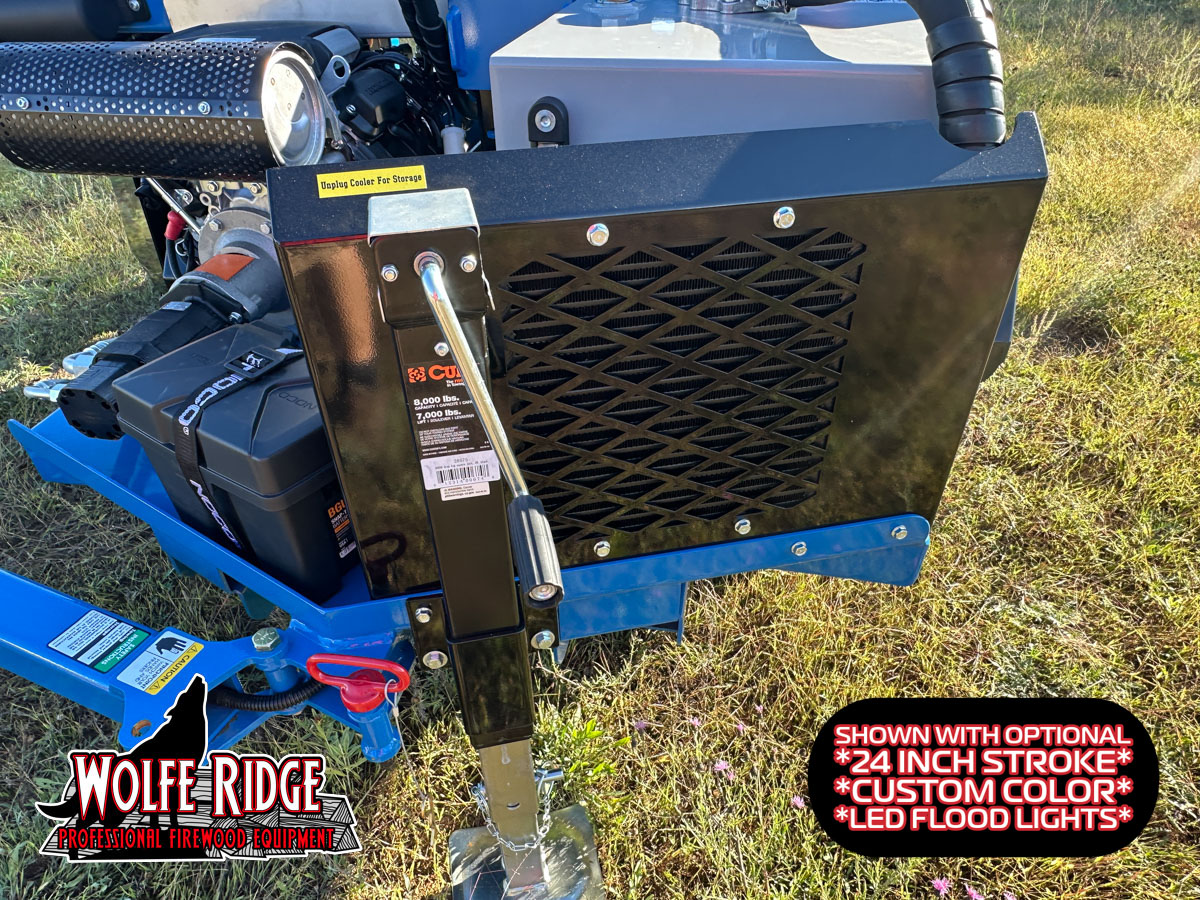

- Hydraulic oil cooler with fan and thermostat
- Bronze self lube slides on splitter wedge
- In-house welded & fabricated splitter beam

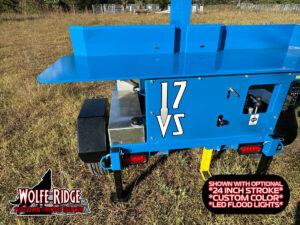

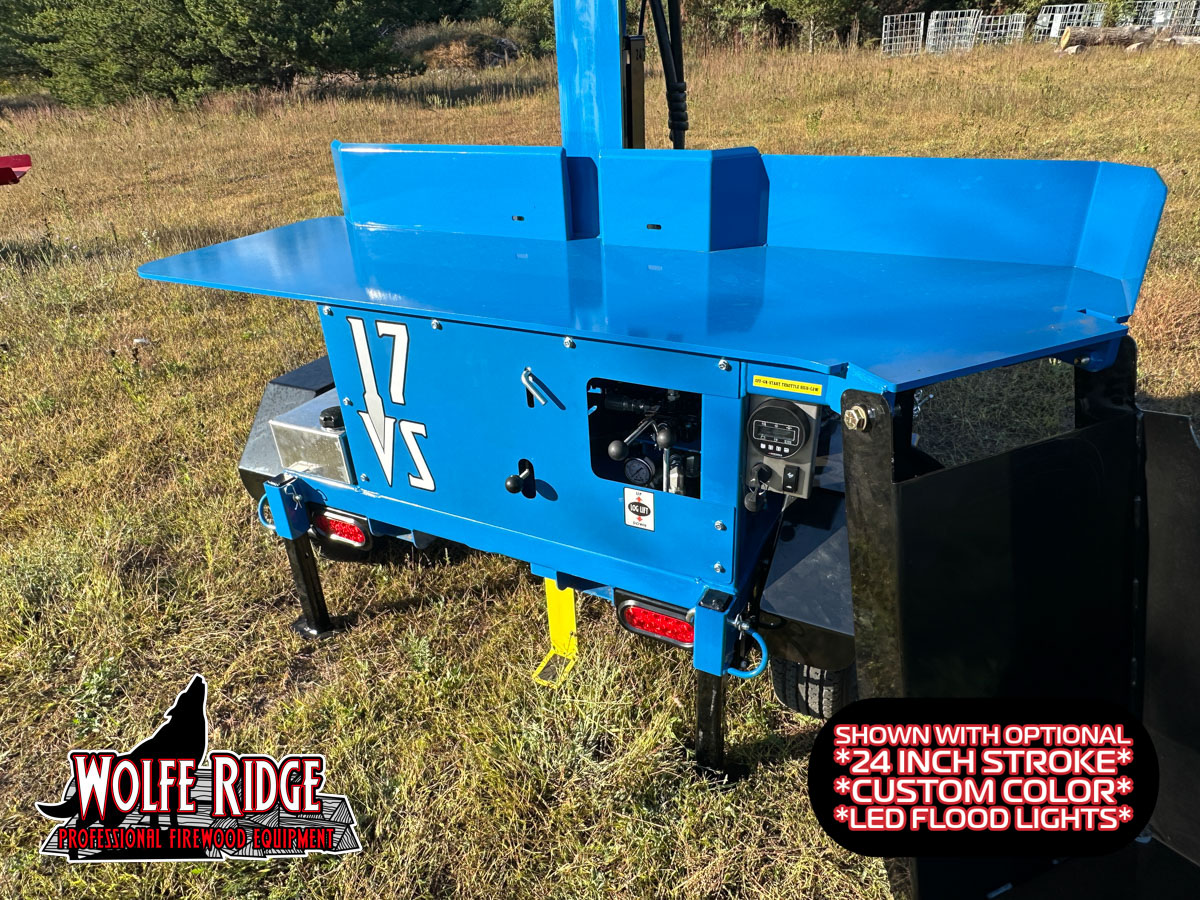

- 37 inch tall table height

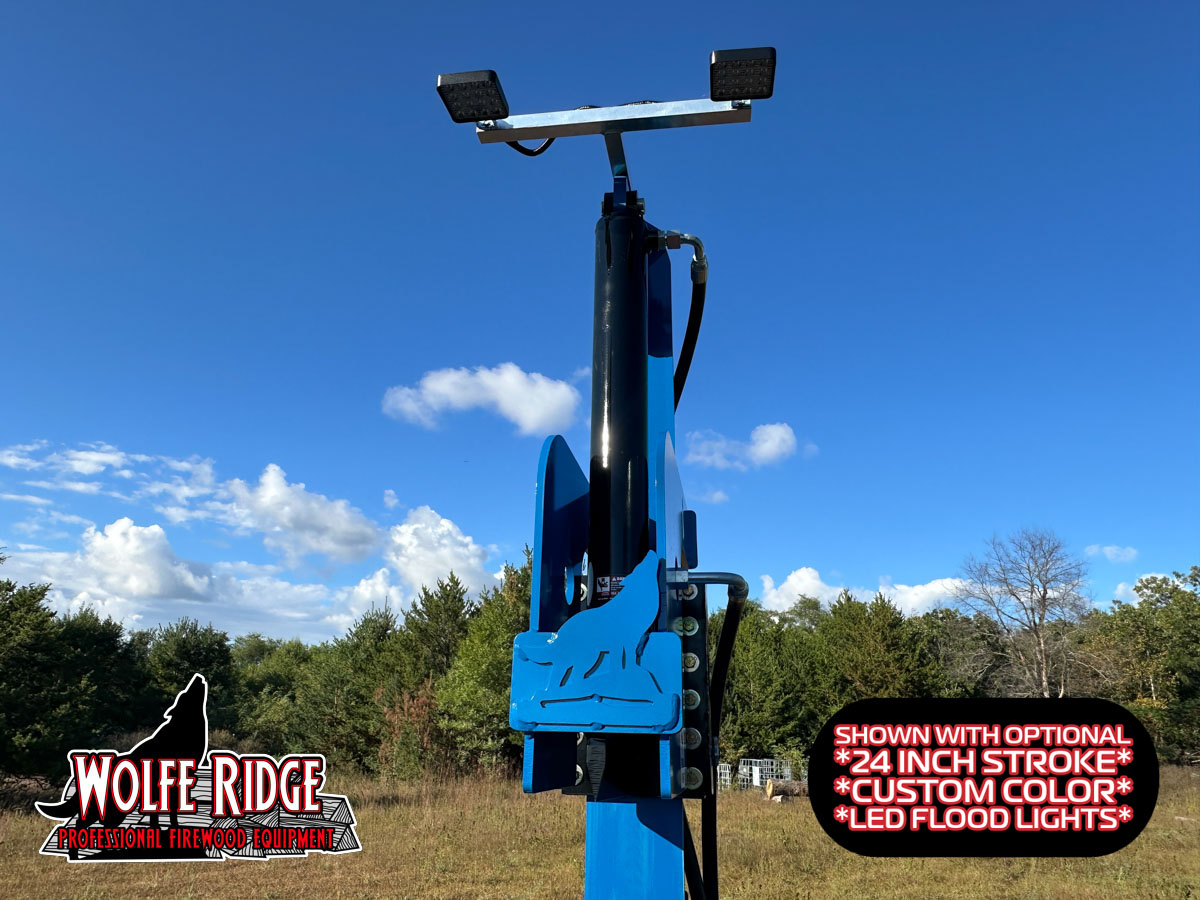

- 20 inch stroke length (optional 24 inch)
- Easy adjustable stroke length limiter
- Swing-away drawbar with 2 inch hitch ball coupler
- 80 MPH recommended max towing speed
- 13 inch rims, 24 inch radial tires, spring suspension axle
- LED taillight package included as standard!
- Dimensions:
- Height without wheels = 120 inch
- Height with wheels = 126 inch
- Outside total width = 90 inch
- Outside fender to fender width = 66 inch
- Length with tongue folded in = 70 inch
- Length with tongue folded out = 100 inch
- Weight: 2450 LB
Shipping
Our vertical splitters ship via partial flatbed / hotshot trucking. If you have a freight terminal near you we can arrange freight to that location. Or, if a semi truck / hotshot can get to your address, we can arrange delivery to your location. You could also buy your new machine from the closest Wolfe Ridge dealer. Check out our dealer locator.
Please note:
- If you have a machine shipped via partial flatbed or hotshot, you will need a piece of equipment for unloading. Such as a forklift, tractor or skid steer with pallet forks and sufficient lifting capacity.
