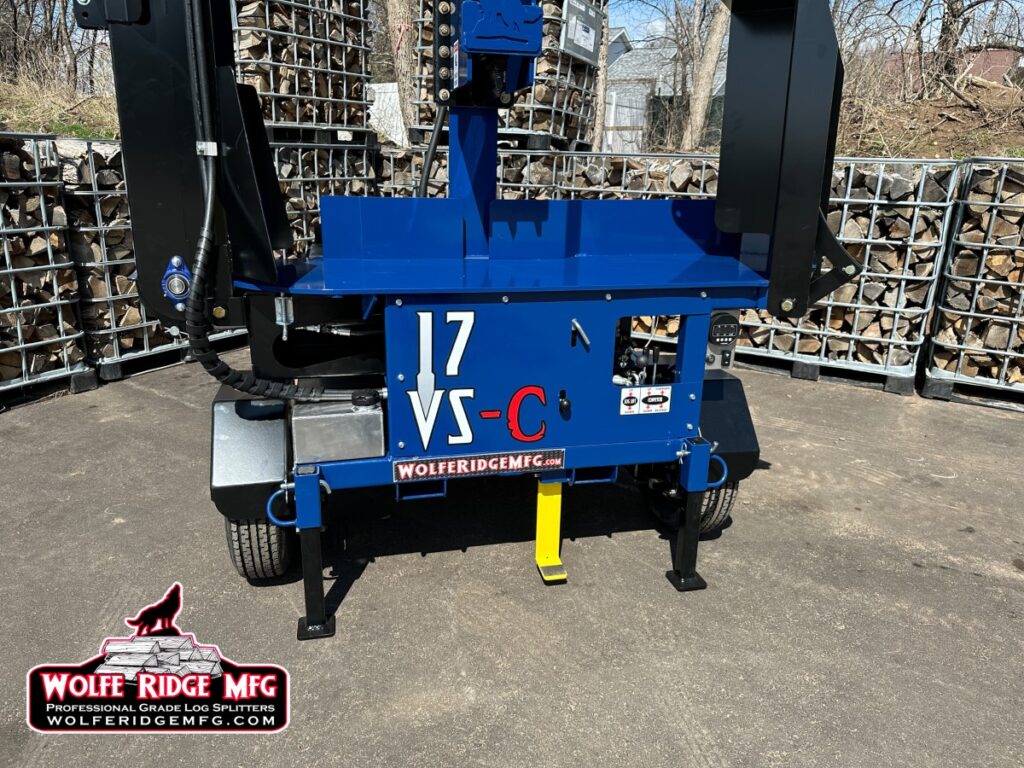

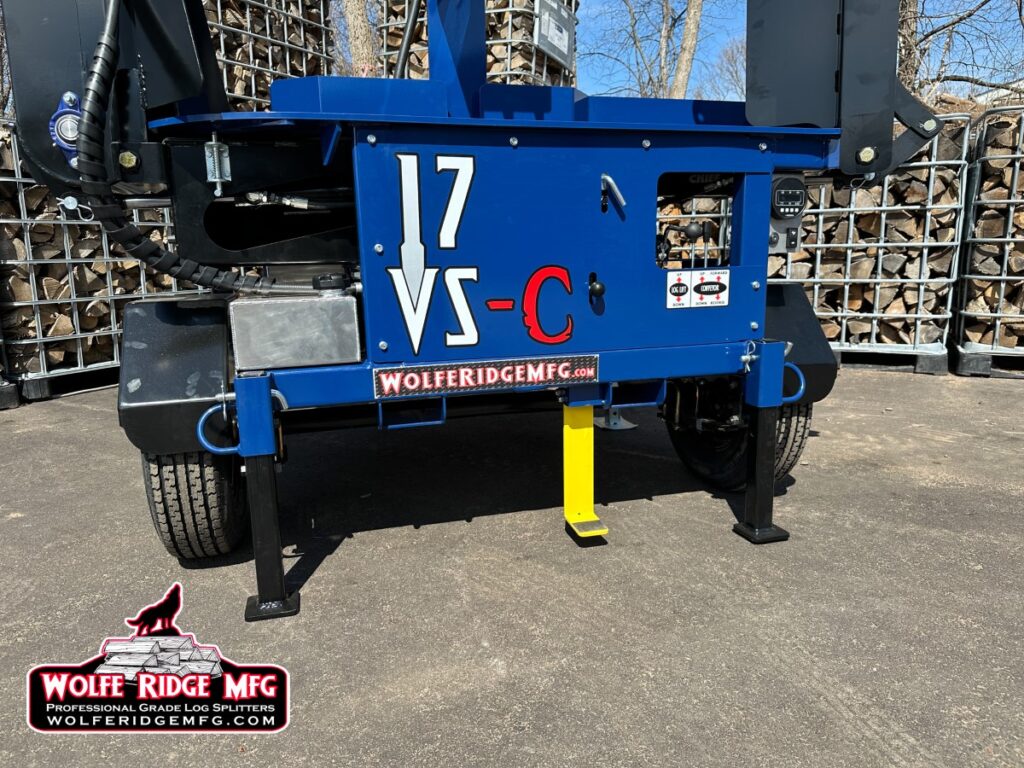

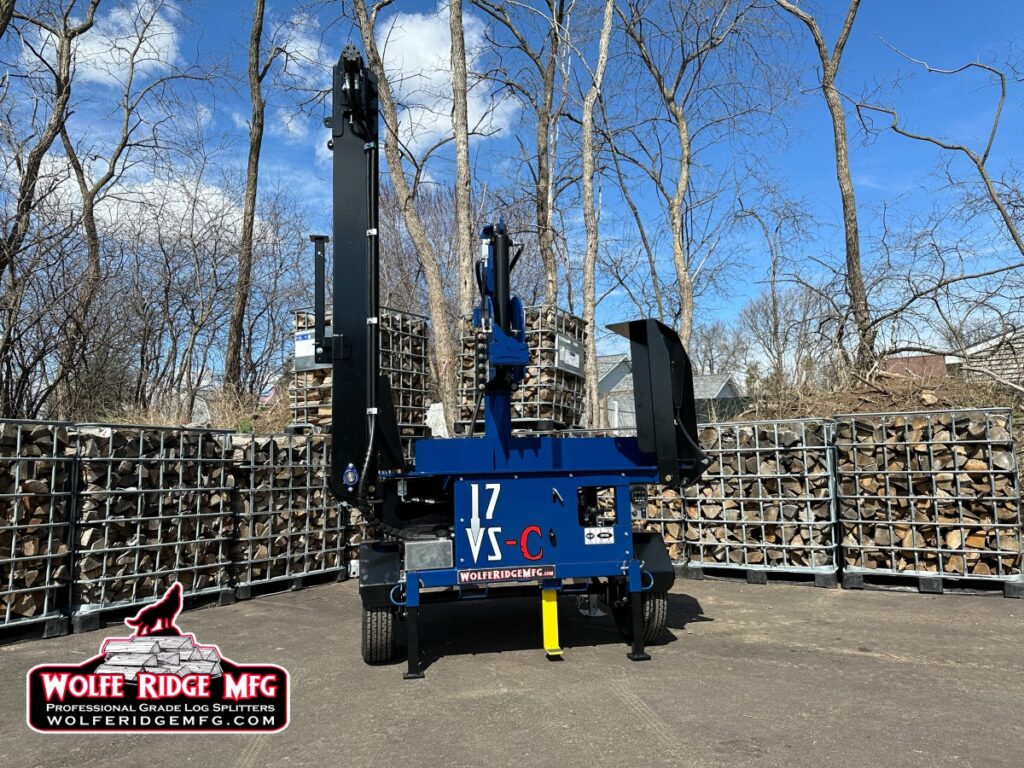

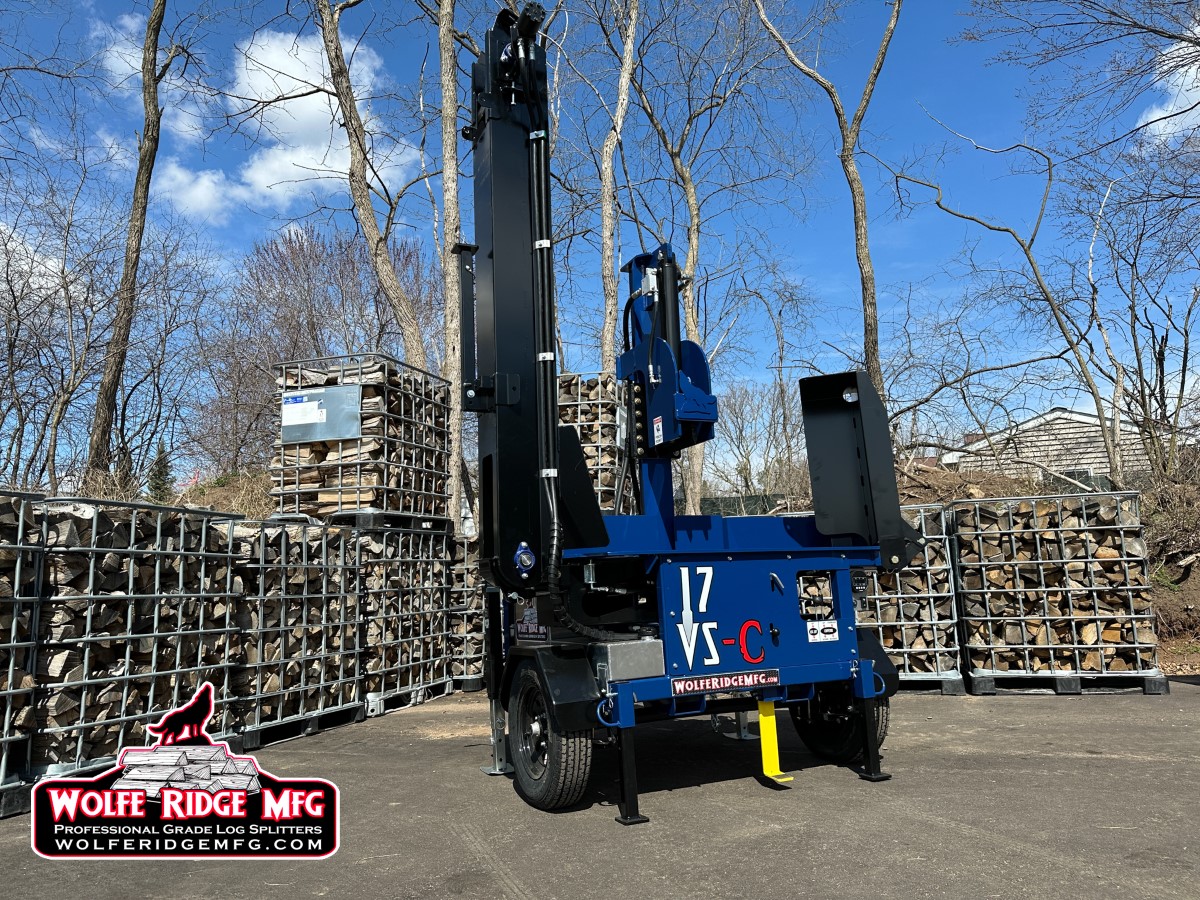

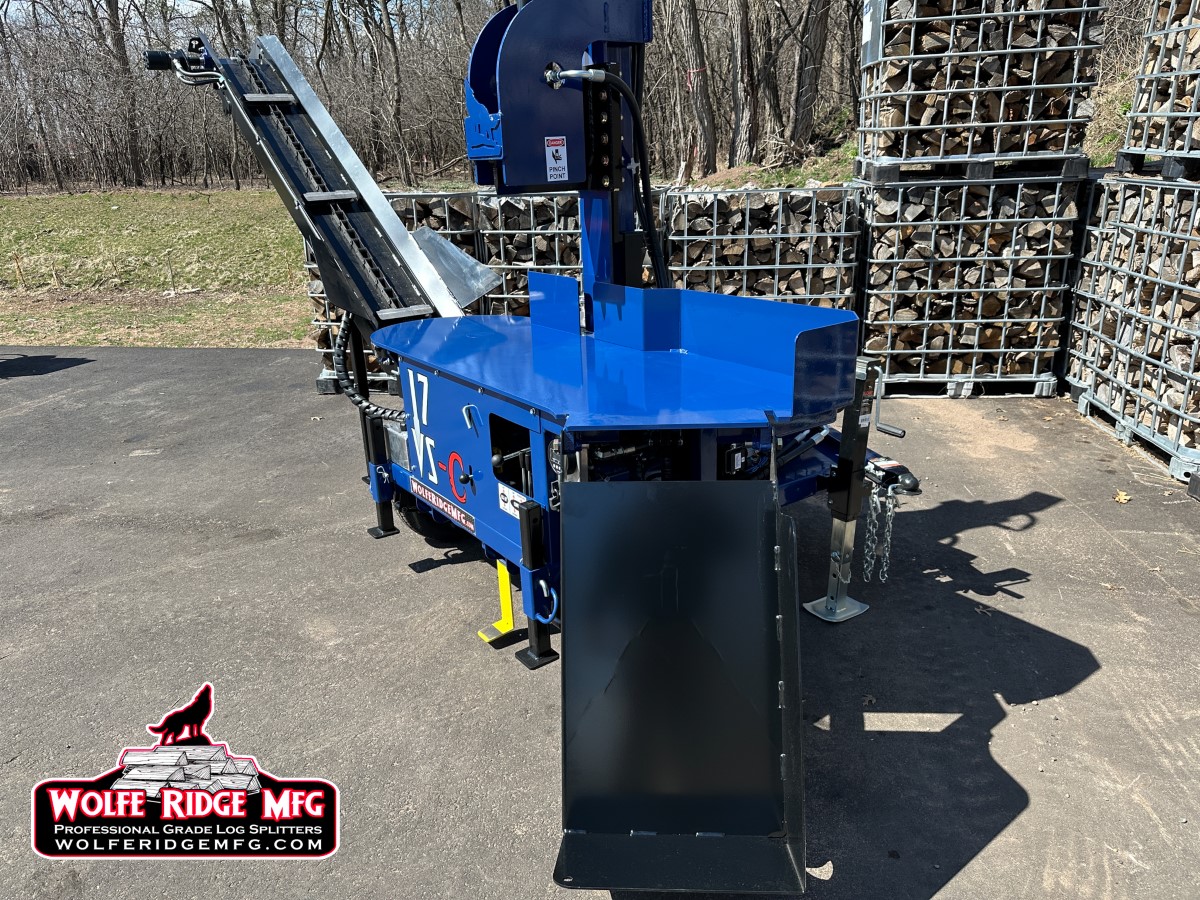

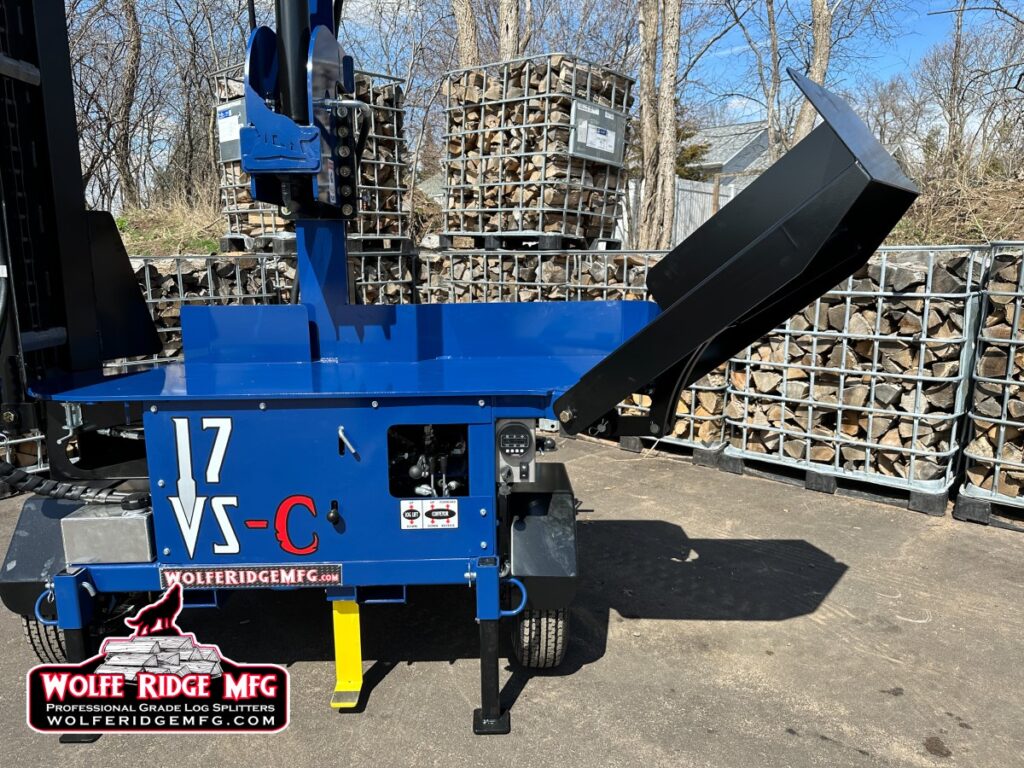

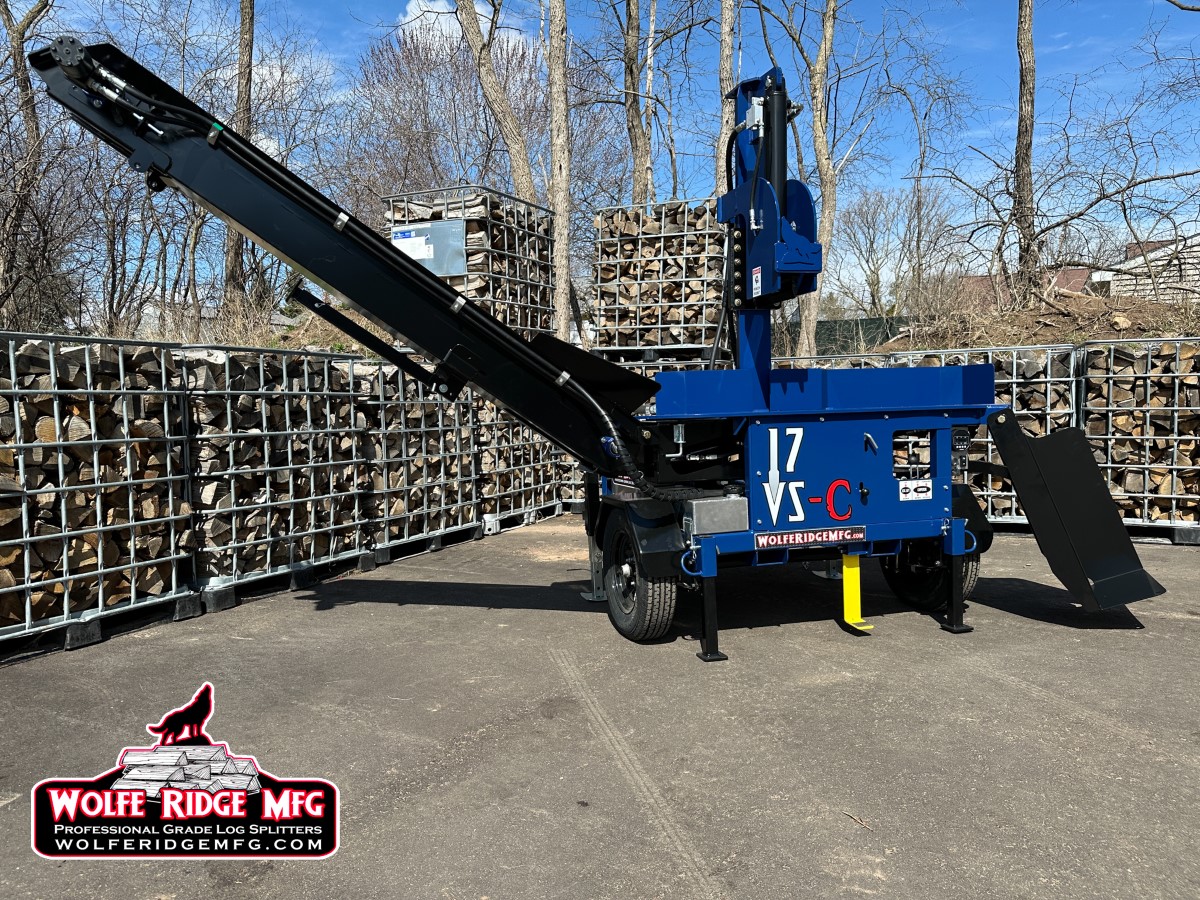

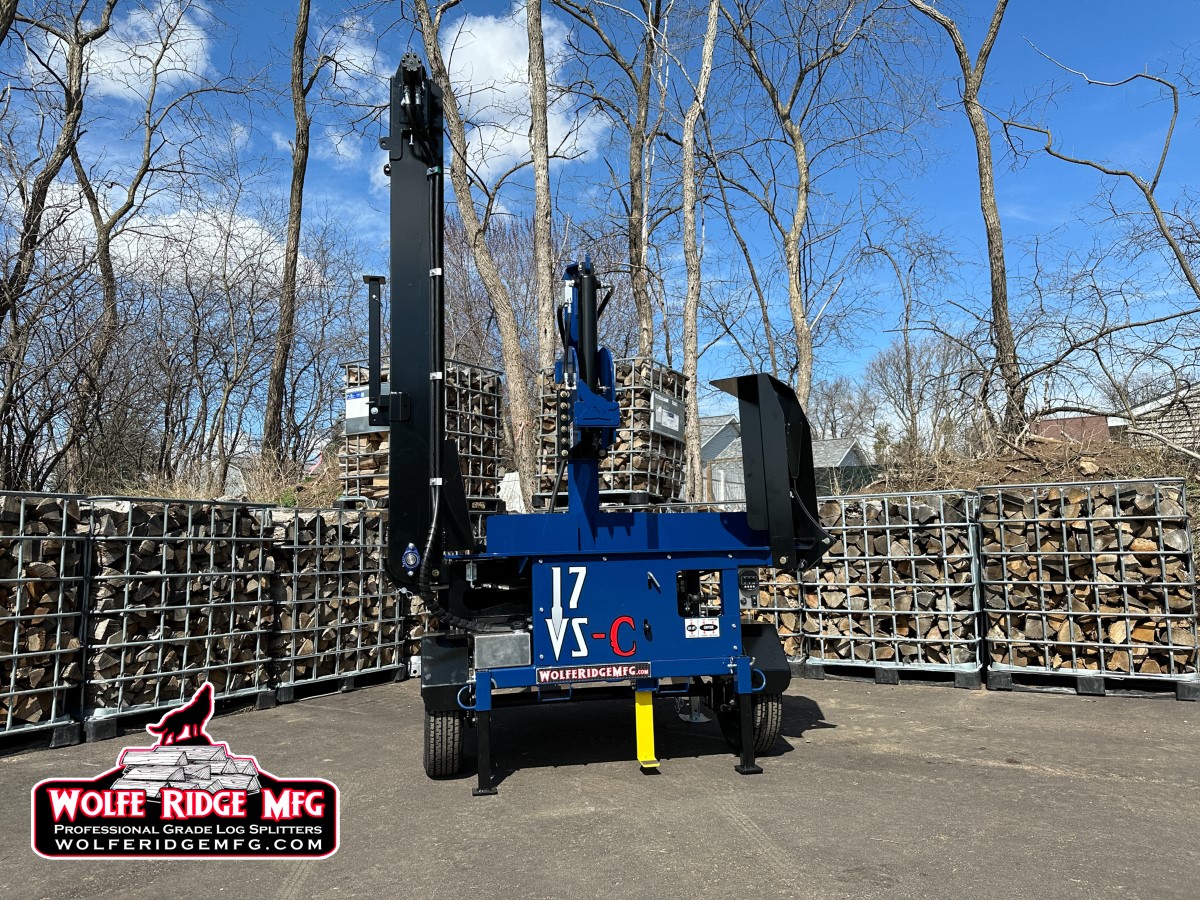

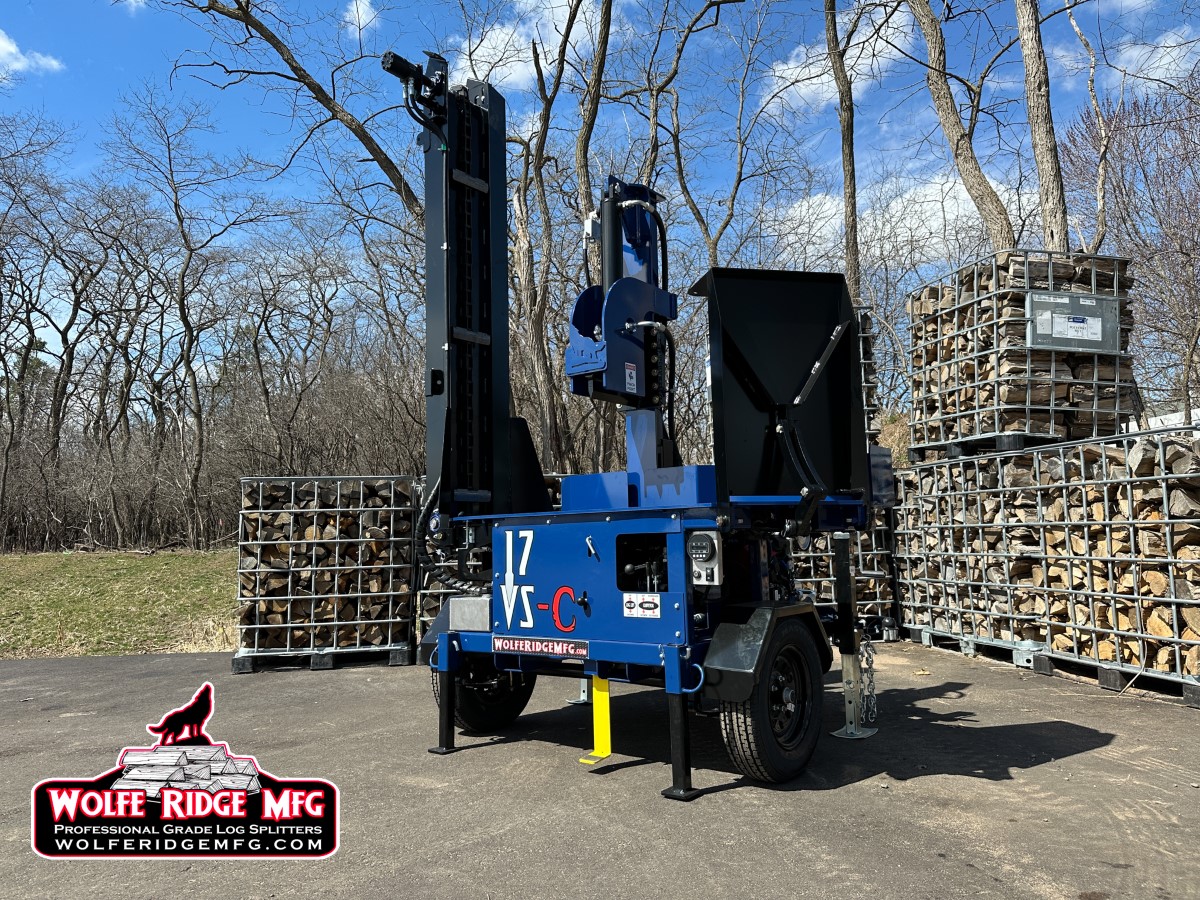

17VS-C – Vertical Log Splitter with Conveyor

$15,995.00

Get the complete vertical splitter solution with a Wolfe Ridge 17VS-C!  The 17VS-C is heavy built, easy to use, highway towable and includes a powered multiple position conveyor.  Powered by a Honda iGX700 v-twin engine and 27 gallon per minute hydraulic pump, the 17VS-C is fast and powerful.  Built to last, made in the USA, all Wolfe Ridge machines are produced with top-quality materials to ensure reliable performance, day in and day out.

The 17VS-C frame is designed, cut, and welded in house.  It features a large 14 inch multi-taper wedge made from AR400 material.  With a 17 ton cylinder and 27 gallon per minute hydraulic pump, the 17VS-C has a fast cycle time of 3.5 seconds!  The included attached multiple position conveyor can make a large pile or help fill multiple IBC totes without needing to move the splitter.  This means less time and effort spent on work, and more time for everything else. The Wolfe Ridge 17VS-C is loaded with features that make it the best choice in the vertical firewood splitter segment.

  • 17-ton splitting force
  • SUPER FAST 3.5 second cycle time

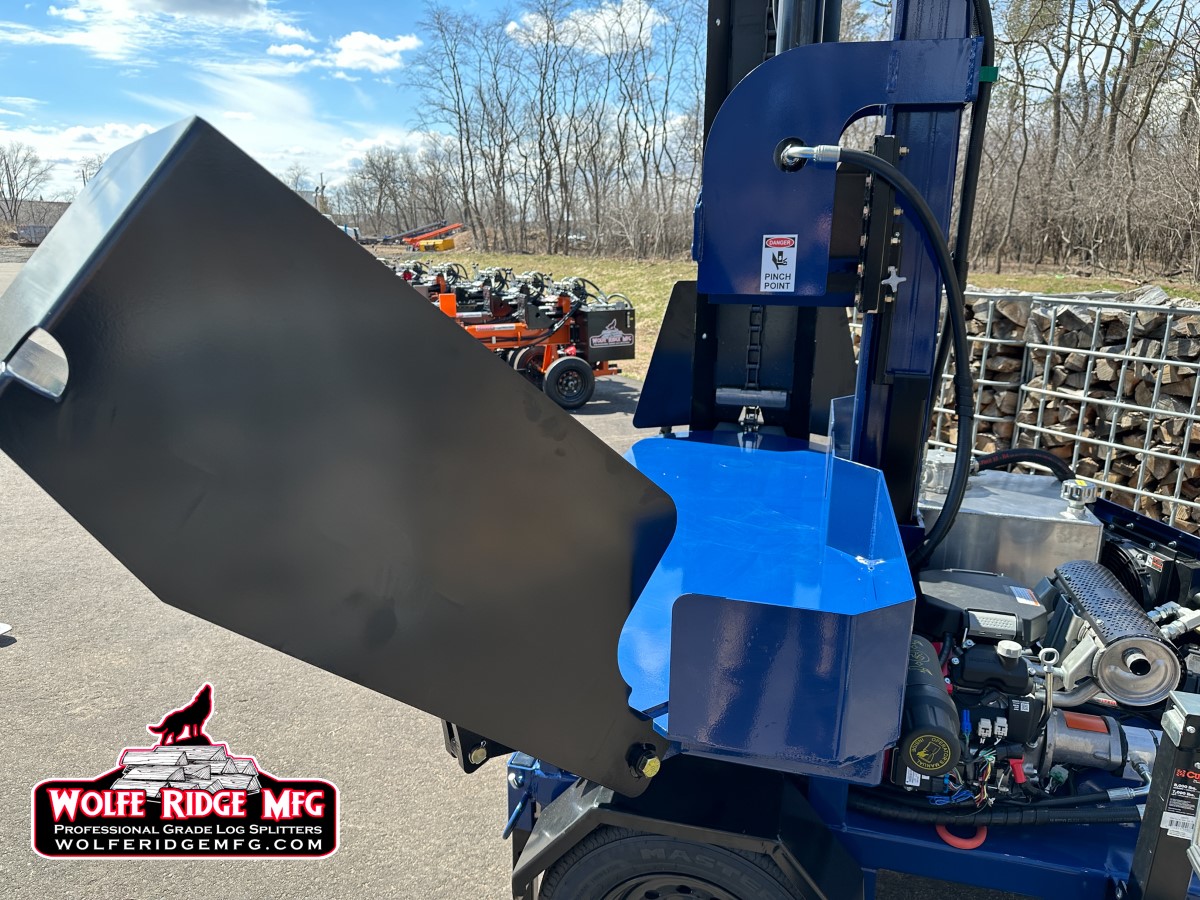

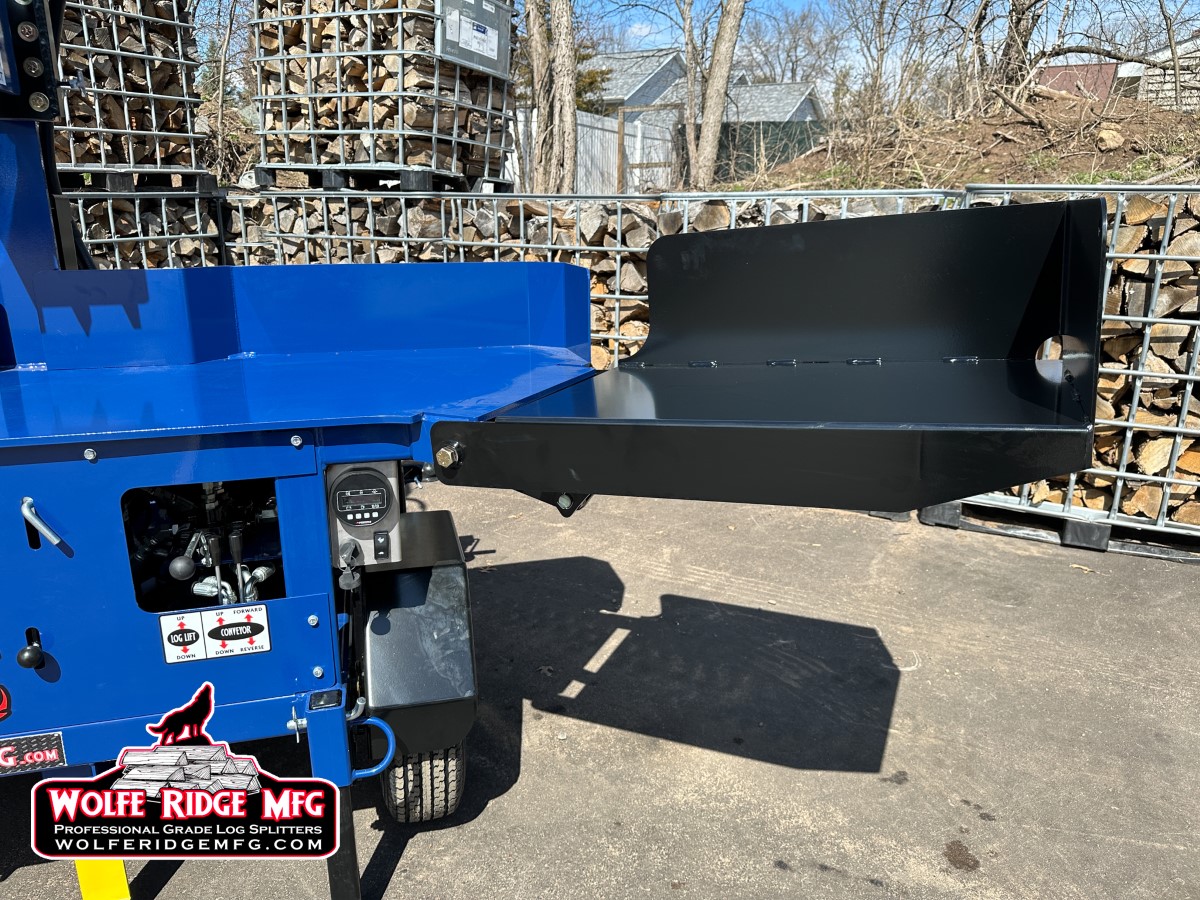

  • 180 degree Hydraulic log lift – lift up to 36” diameter rounds

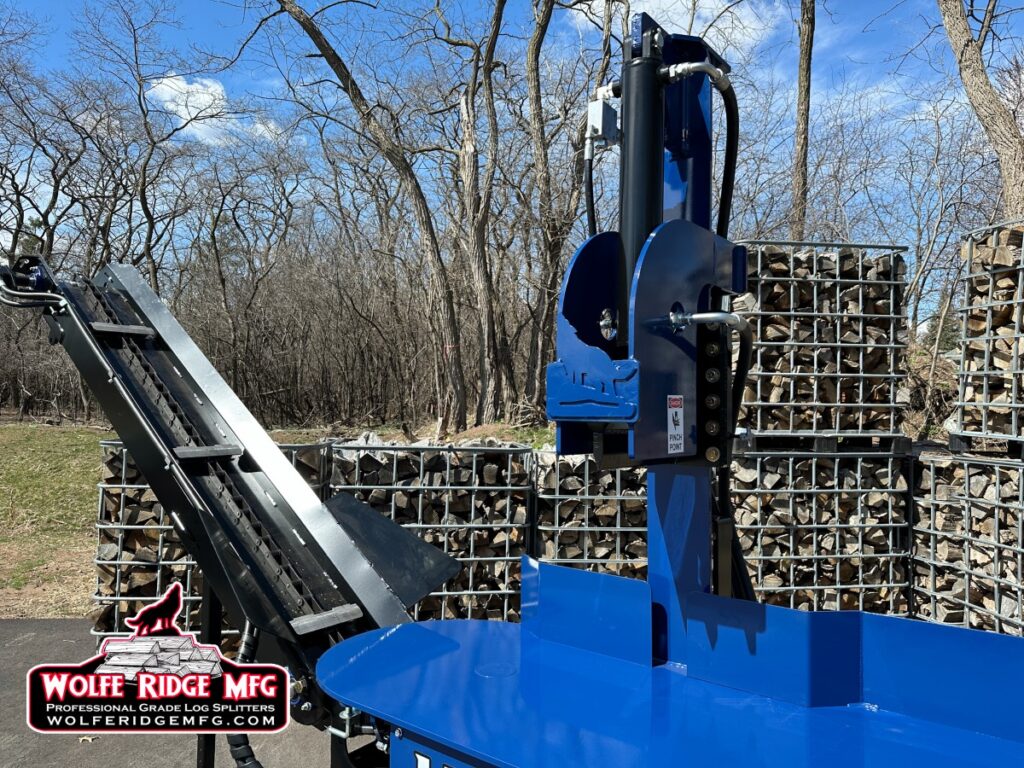

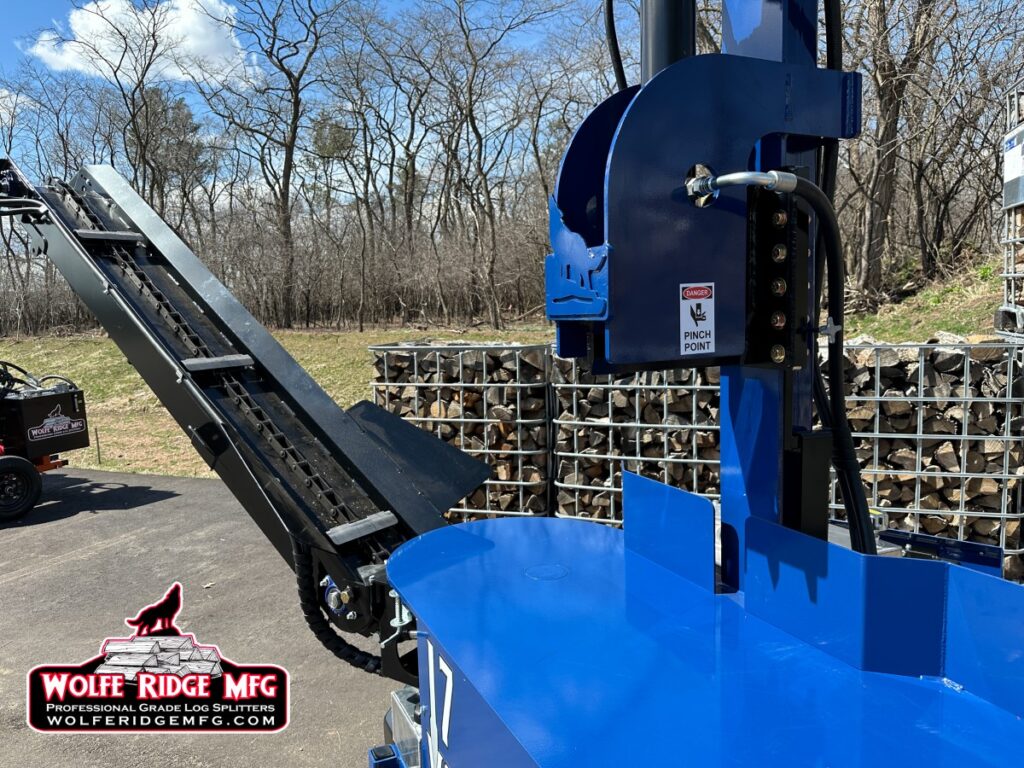

  • Hydraulic powered conveyor
  • Powerful Honda engine for consistent performance

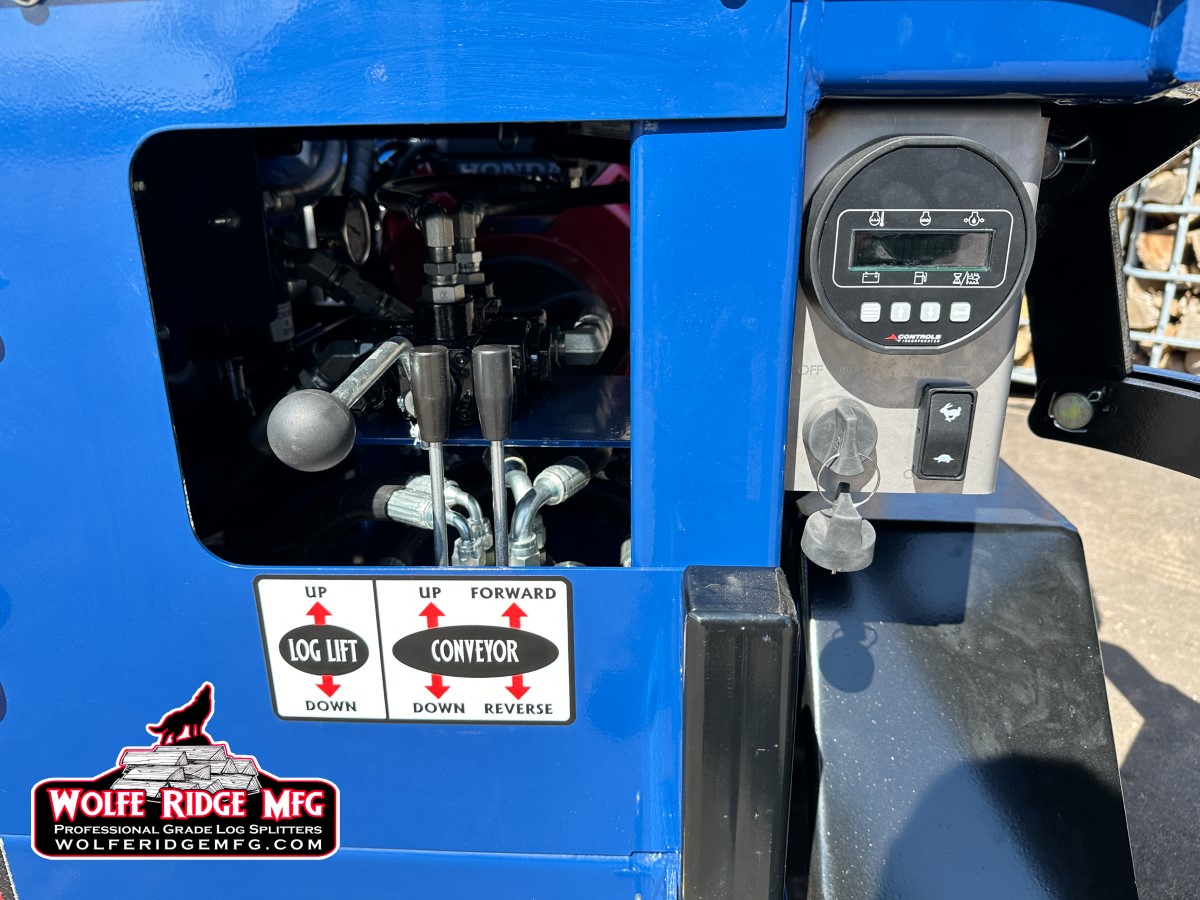

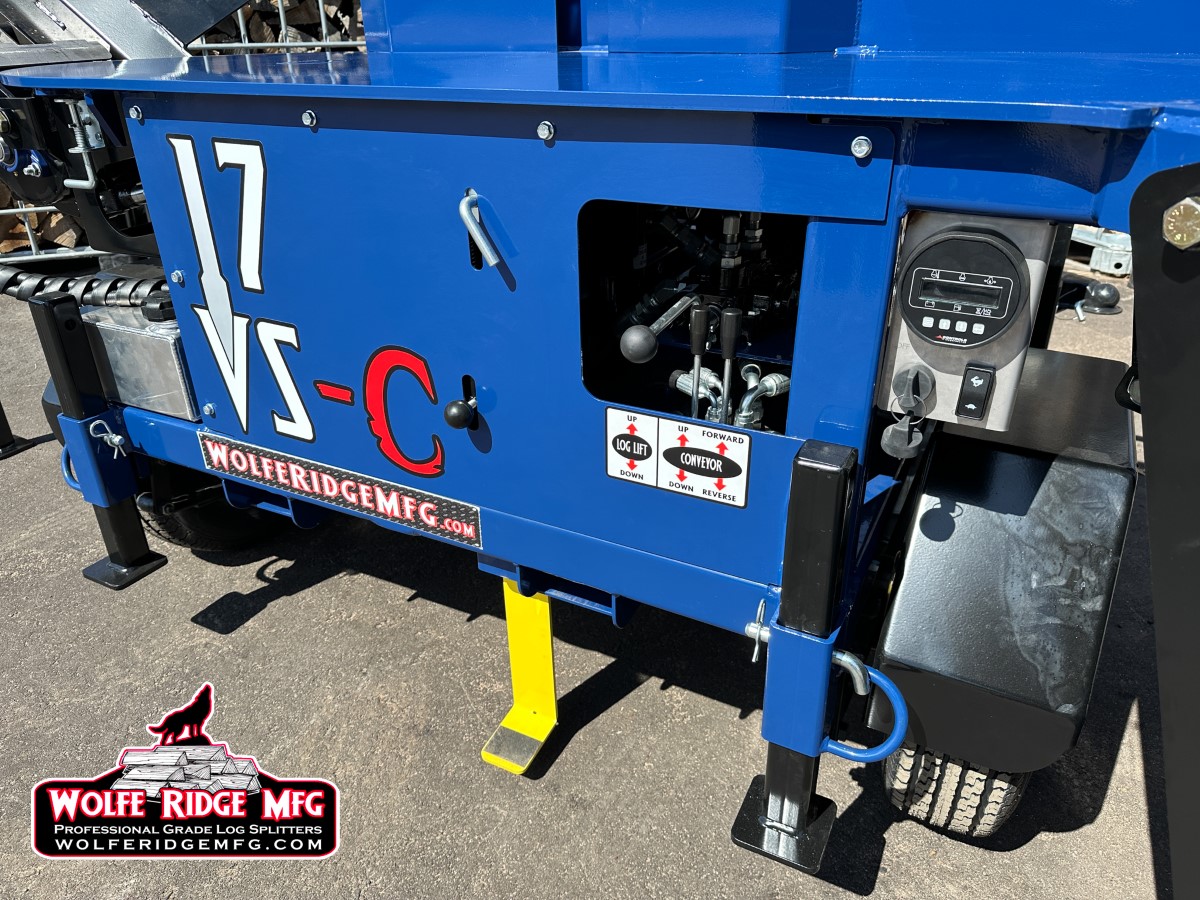

  • Easy-to-use controls – Made in USA Prince hydraulic valves
  • Sandblasted and powder coated for a tough, long lasting appearance
    • Red, Orange, Gray, or Blue as standard color options
    • Custom colors with any RAL color code for added fee
  • 1 year warranty on machine – 3 year on engine

Whether you’re looking to split large rounds into manageable sizes, or make the perfect size firewood consistently for your most demanding clients, Wolfe Ridge has you covered.  The 17VS-C is the ultimate log splitter choice for making bundle wood with consistent split sizes and minimal waste.  Invest in a high-quality, made in USA log splitter that delivers exceptional results every time.

Tech Specs

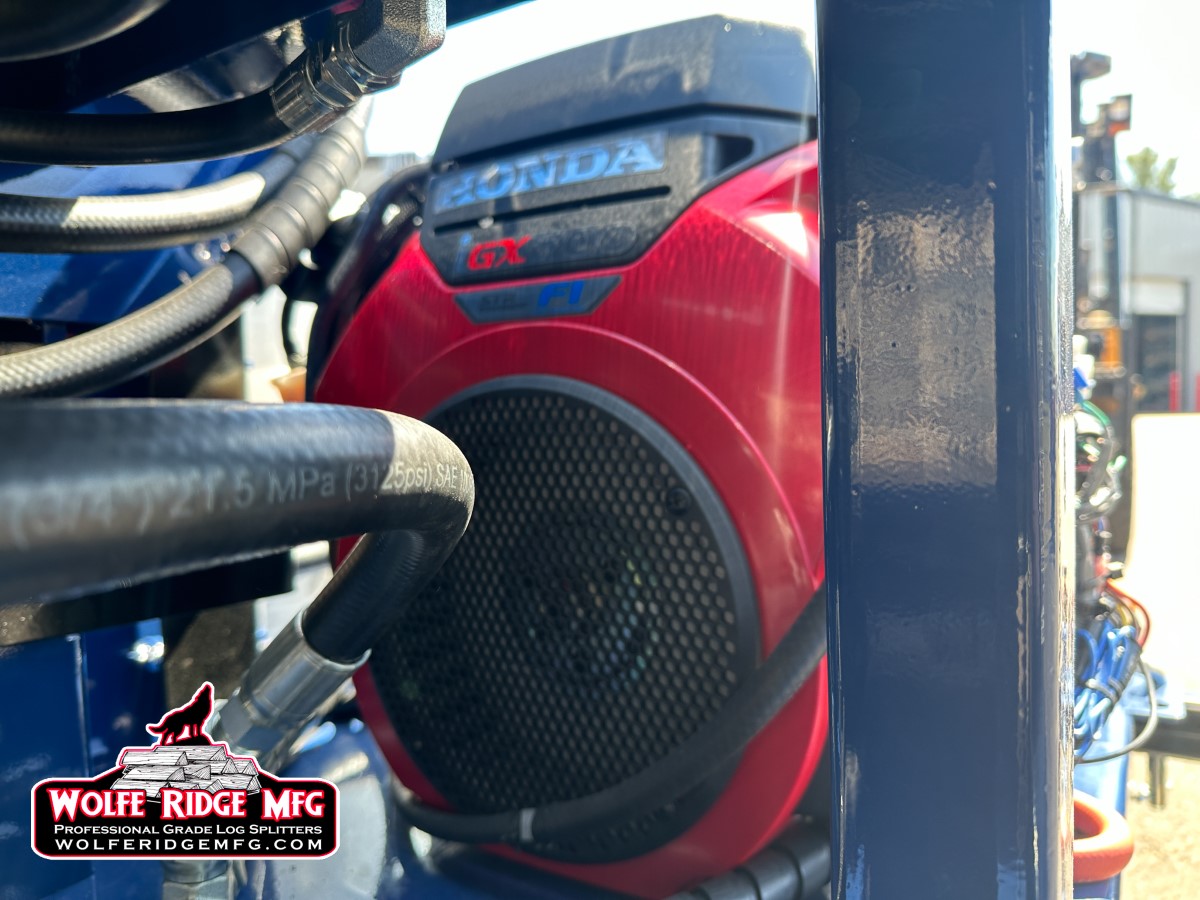

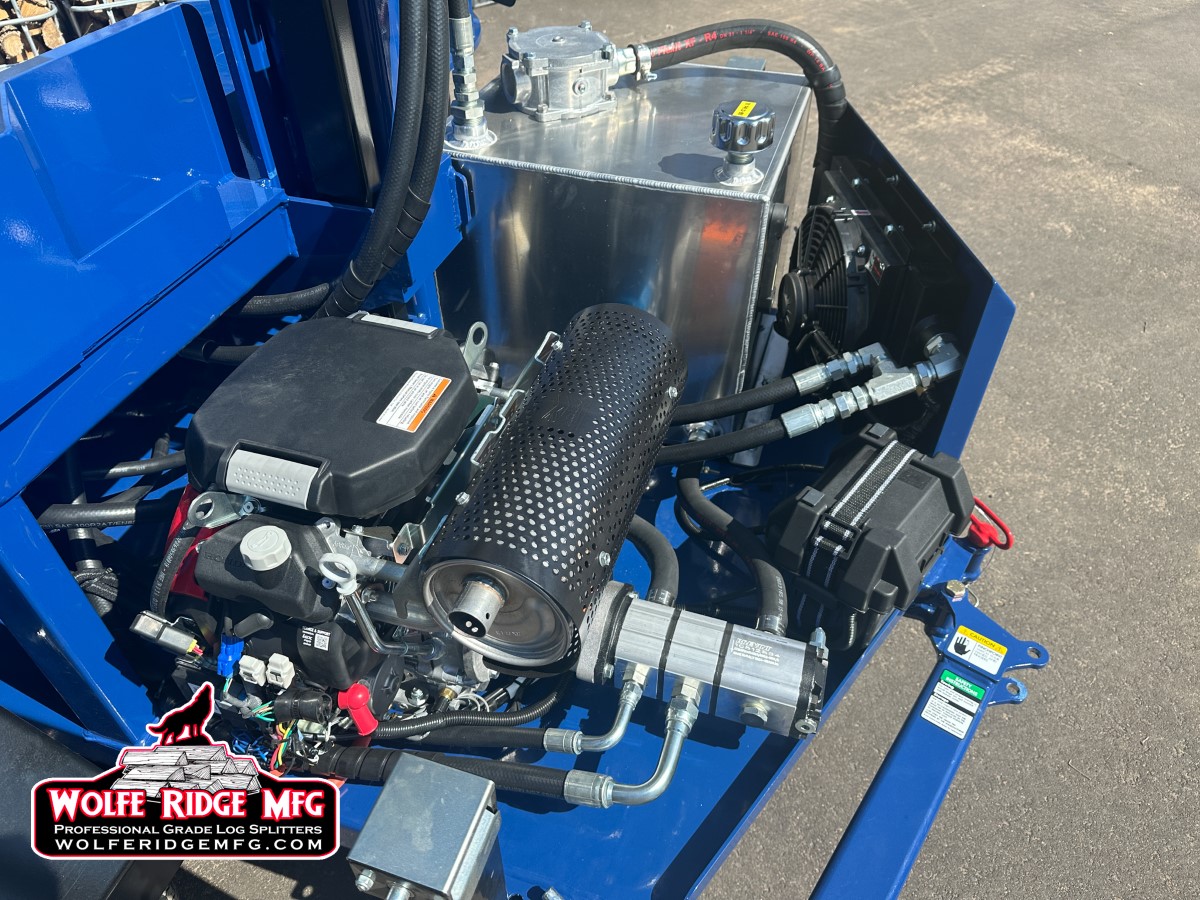

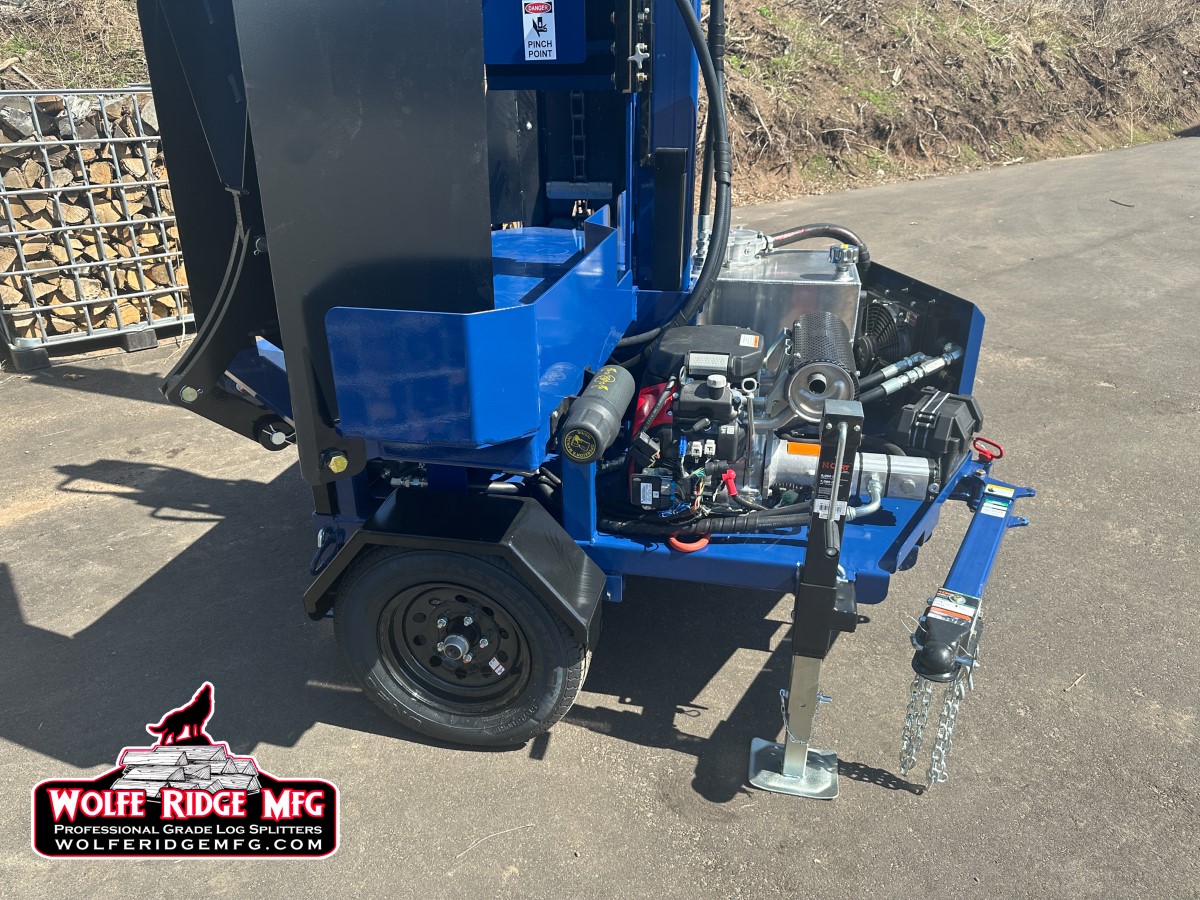

  • Honda iGX700 22HP engine with EFI and electronic governor

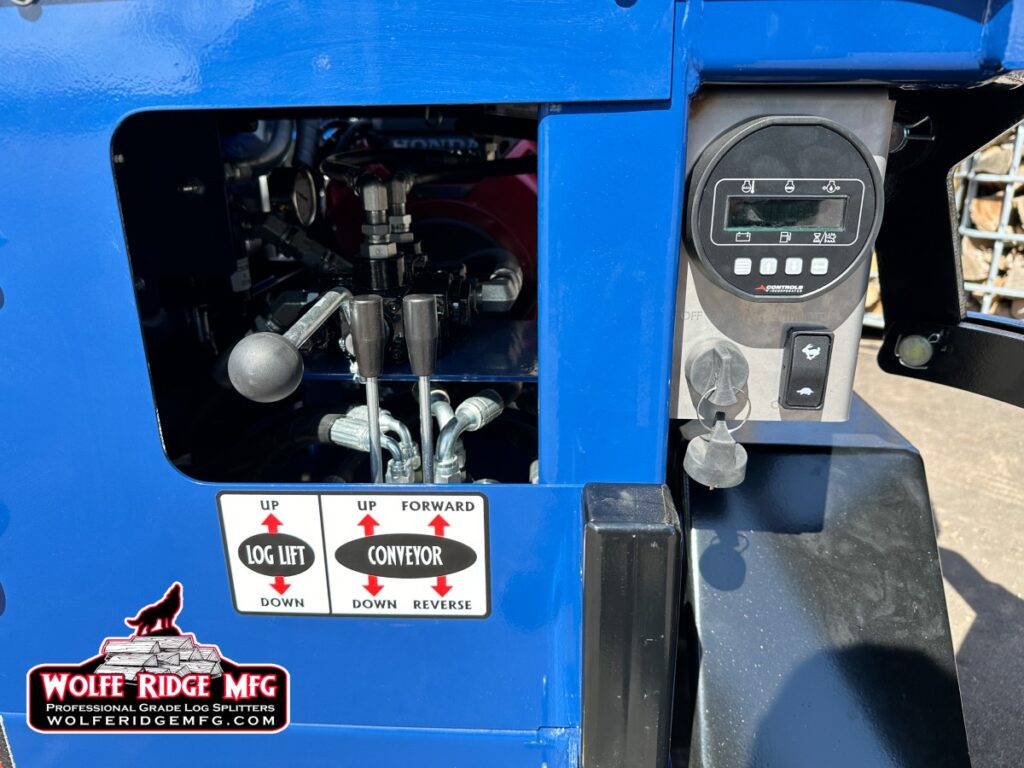

  • Electric start with engine controls at operator’s position
  • 6 gallon aluminum welded fuel tank with front fill up location
  • 27 GPM three-stage hydraulic pump

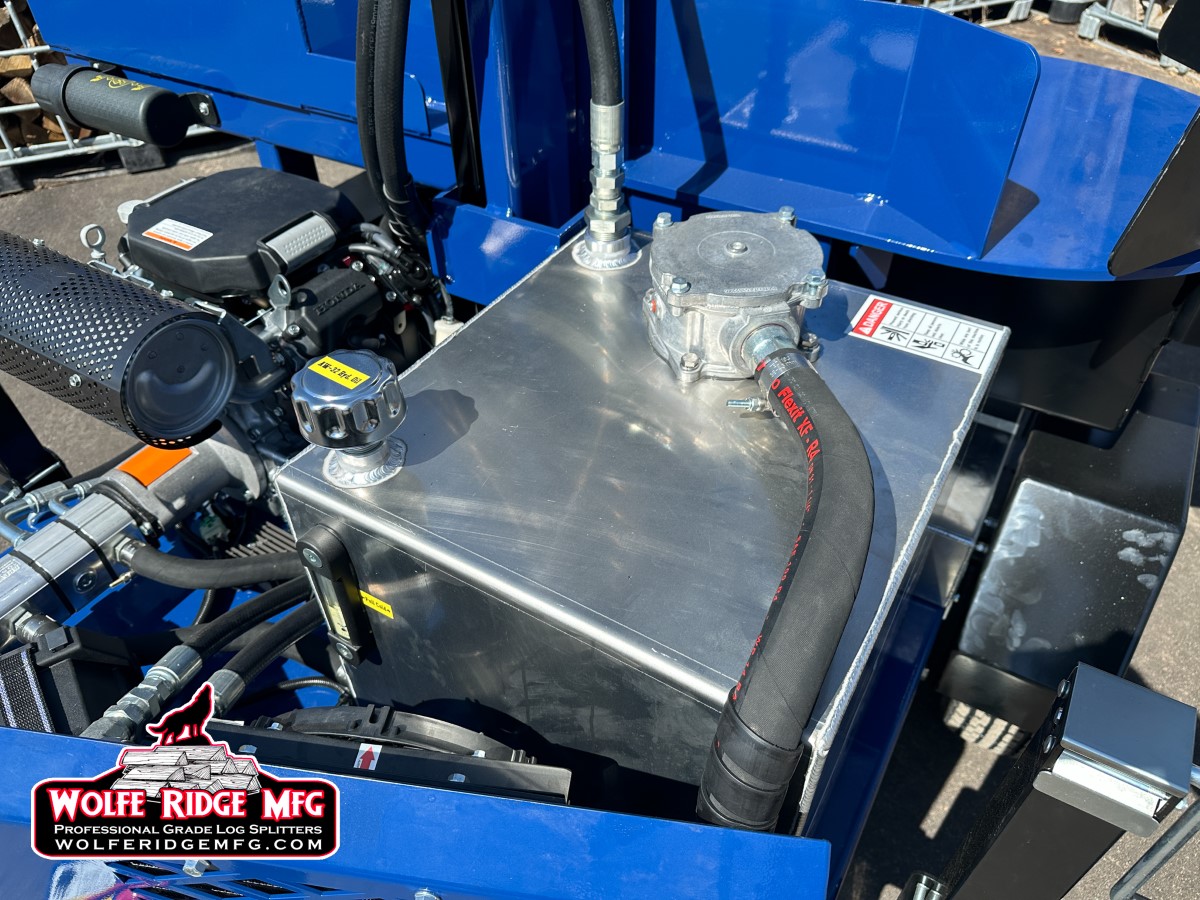

  • Aluminum 28 gallon hydraulic tank with cartridge return filter
  • Foot pedal controlled split action with auto return and manual override
  • Hydraulic log lift included – 180 degrees of movement

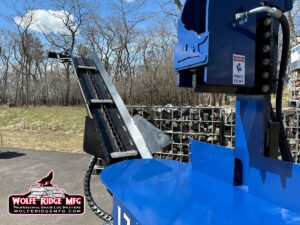

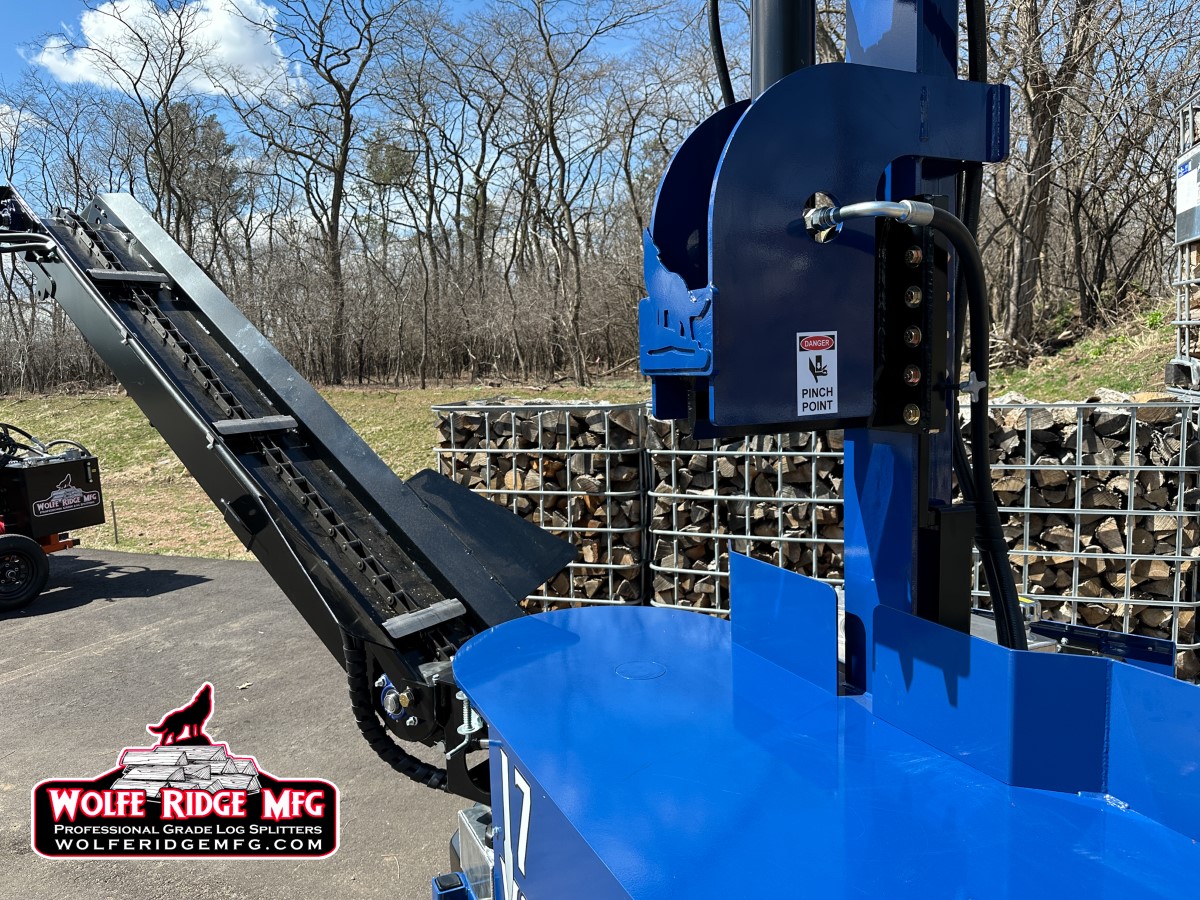

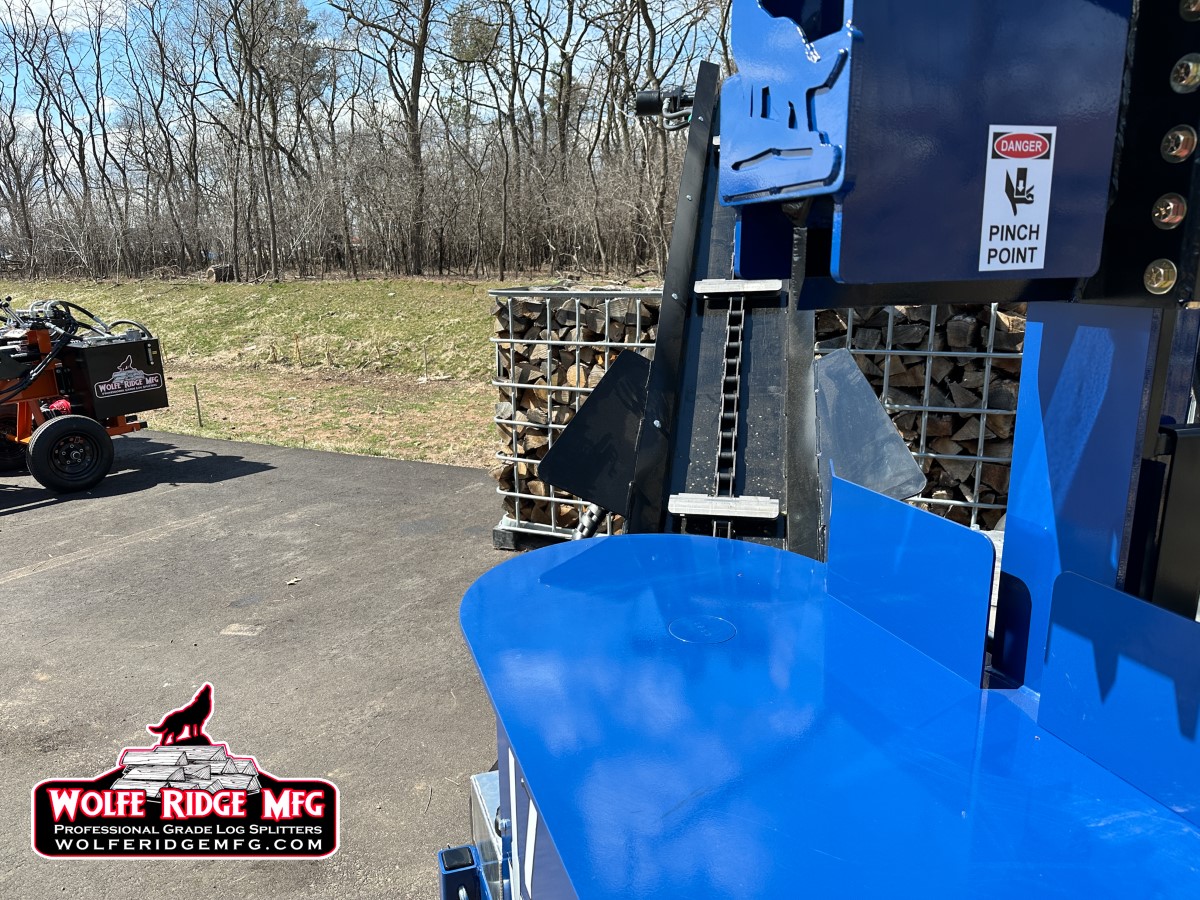

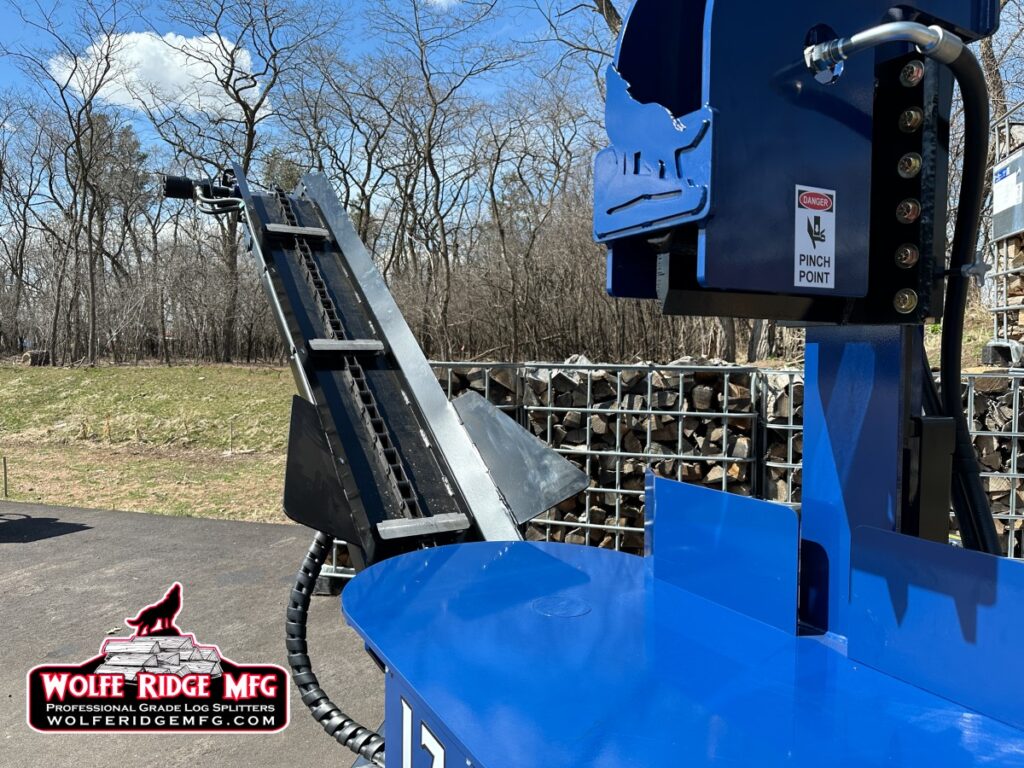

  • Hydraulic powered conveyor
    • Hydraulic height adjustment
    • Hydraulic forward and reverse

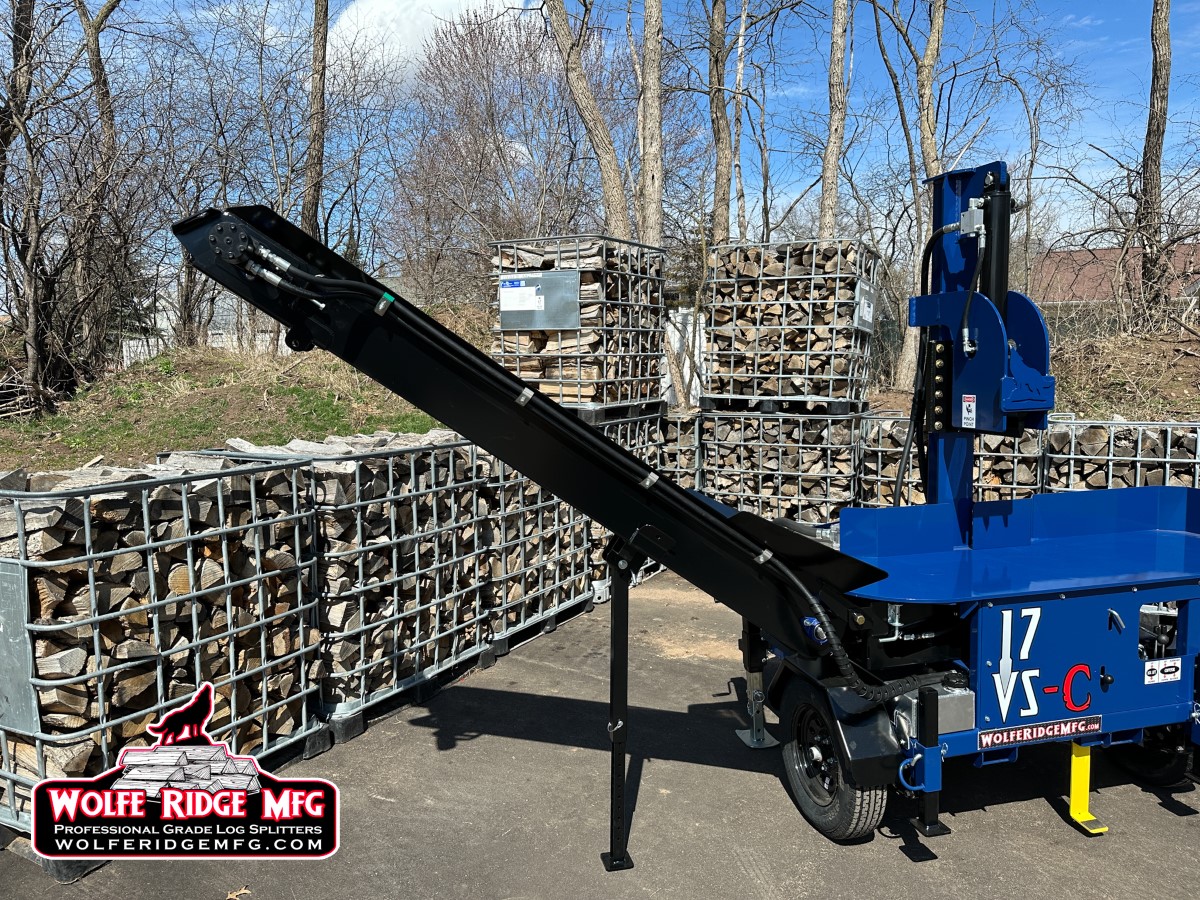

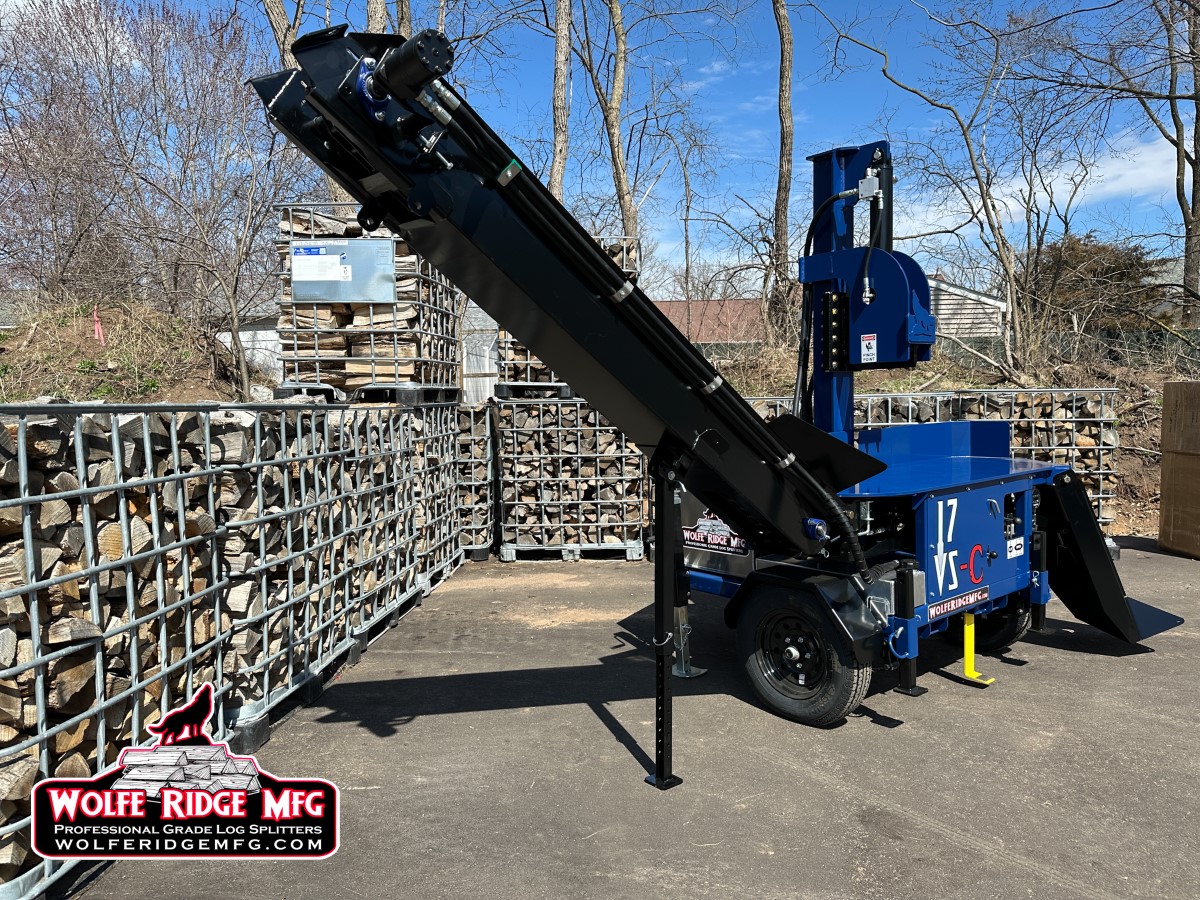

    • Mechanical 60 degree conveyor swing – fill multiple IBC totes easily!
  • Hydraulic oil cooler with fan and thermostat
  • Bronze self lube slides on splitter wedge
  • In-house welded & fabricated splitter beam
  • 37 inch tall table height
  • 20 inch stroke length (optional 24 inch)
  • Easy adjustable stroke length limiter

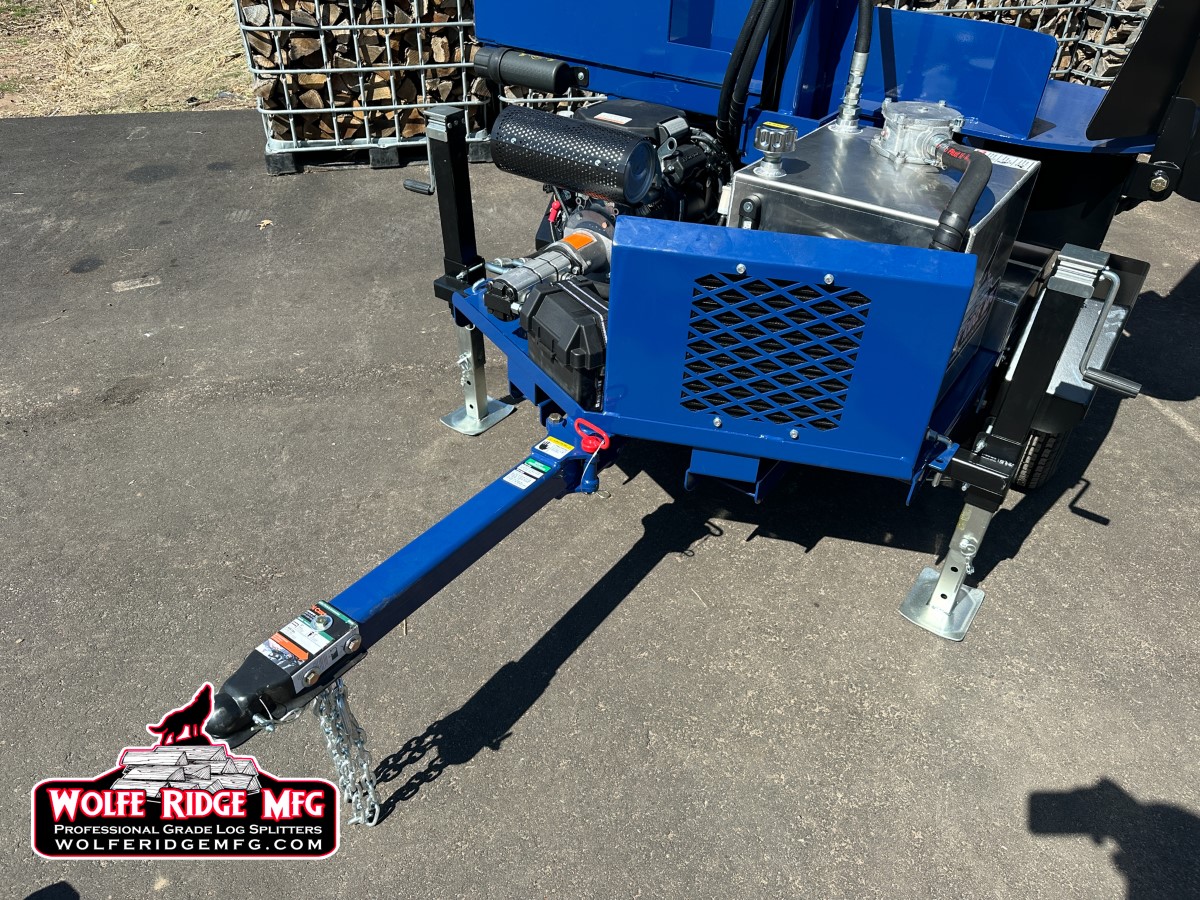

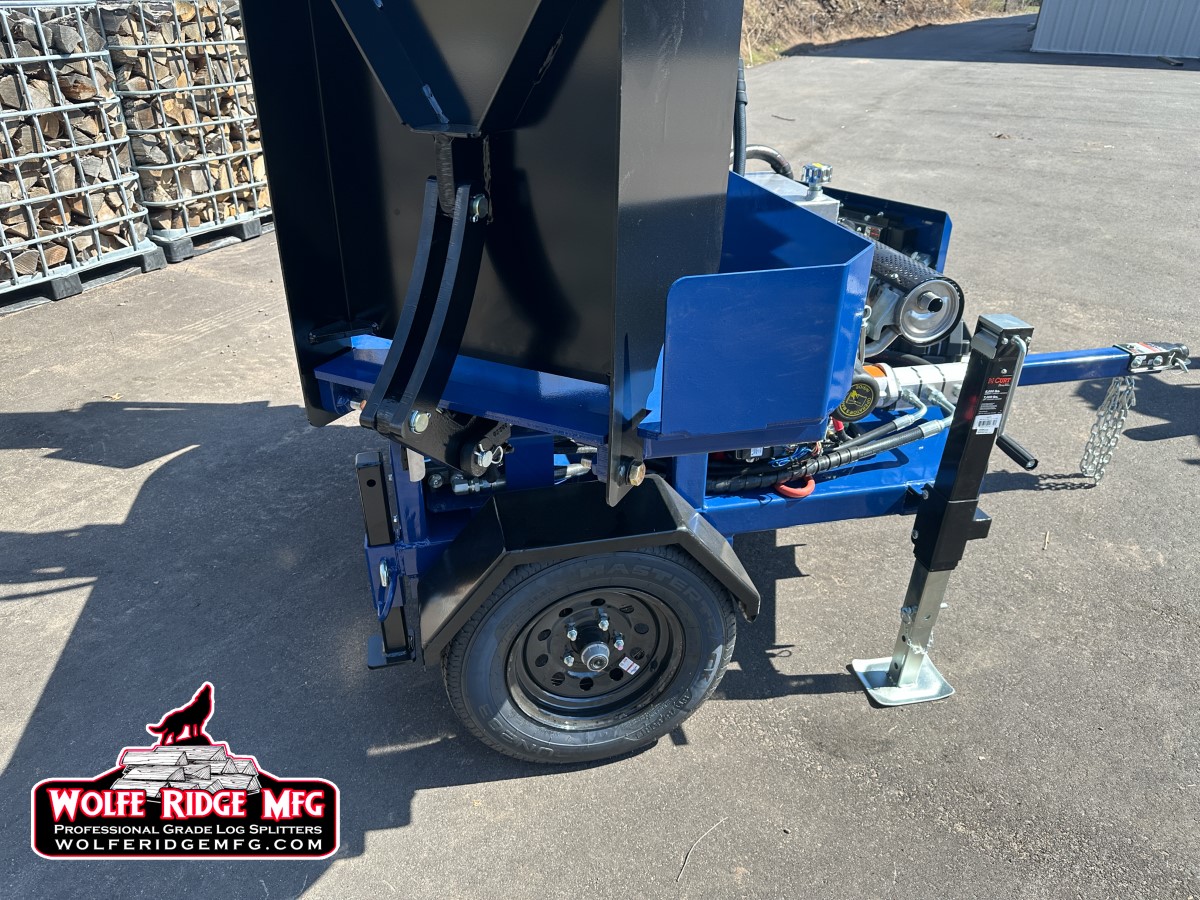

  • Swing-away drawbar with 2 inch hitch ball coupler
  • 80 MPH recommended max towing speed
  • 13 inch rims, 24 inch radial tires, spring suspension axle
  • Dimensions:
    • Height without wheels = 120 inch
    • Height with wheels = 126 inch
    • Outside total width = 90 inch
    • Outside fender to fender width = 66 inch
    • Length with tongue folded in = 70 inch
    • Length with tongue folded out = 100 inch
  • Weight: 2700 LB

Shipping

Our vertical splitters ship via partial flatbed / hotshot trucking.  If you have a freight terminal near you we can arrange freight to that location.  Or, if a semi truck / hotshot can get to your address, we can arrange delivery to your location.  You could also pick up your new machine from the closest Wolfe Ridge dealer. Check out our dealer locator.
Please note:

  • If you have a machine shipped via partial flatbed or hotshot, you will need a piece of equipment for unloading.  Such as a forklift, tractor or skid steer with pallet forks and sufficient lifting capacity.

Video



Questions?

Please enable JavaScript in your browser to complete this form.
Name

1 review for 17VS-C – Vertical Log Splitter with Conveyor

  1. Tim poore

    I’m gonna tell you what. That VS-c is one hell of a machine. I bought the prototype from Chris at the Paul Bunyan show. Used it for a month and bought another one. Makes beautiful wood. Hardly any waste at all. You can’t beat a wolfe ridge.
