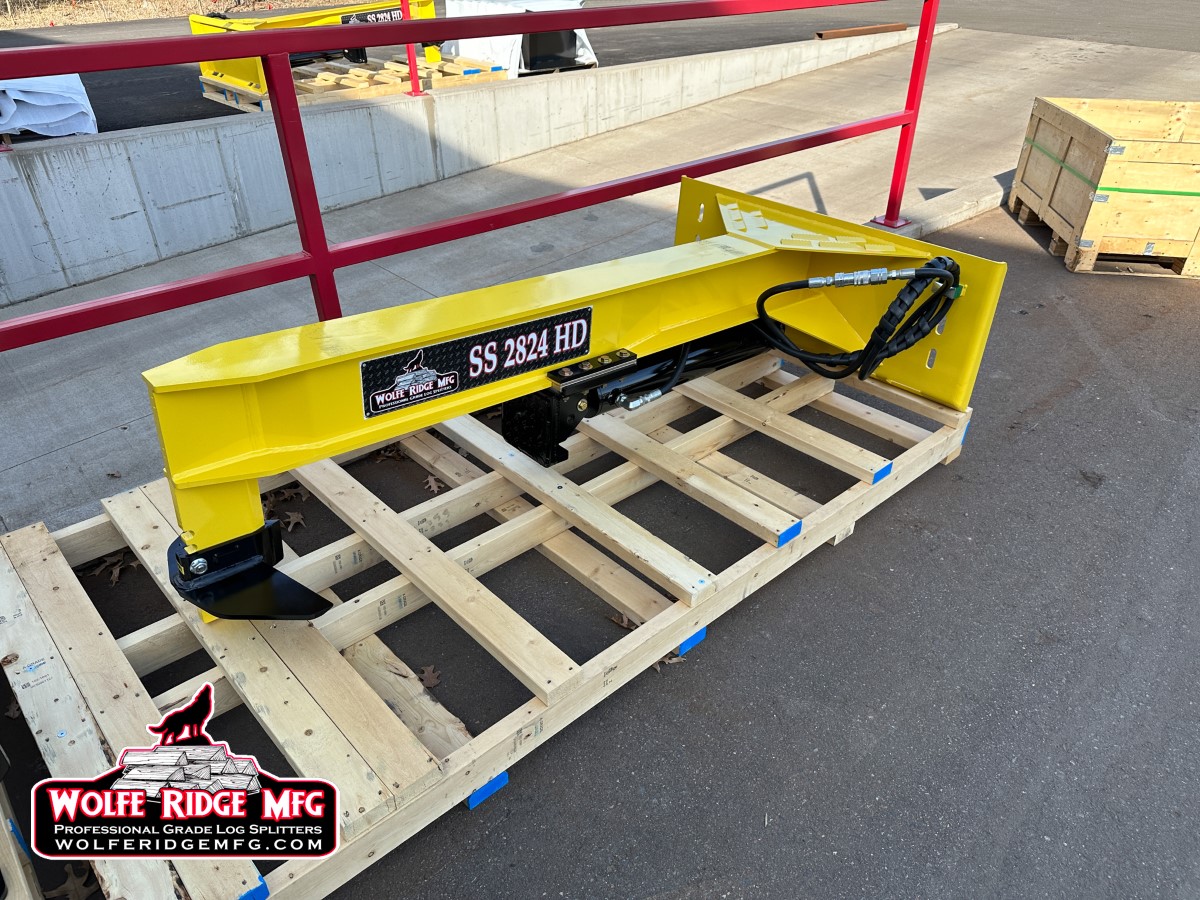

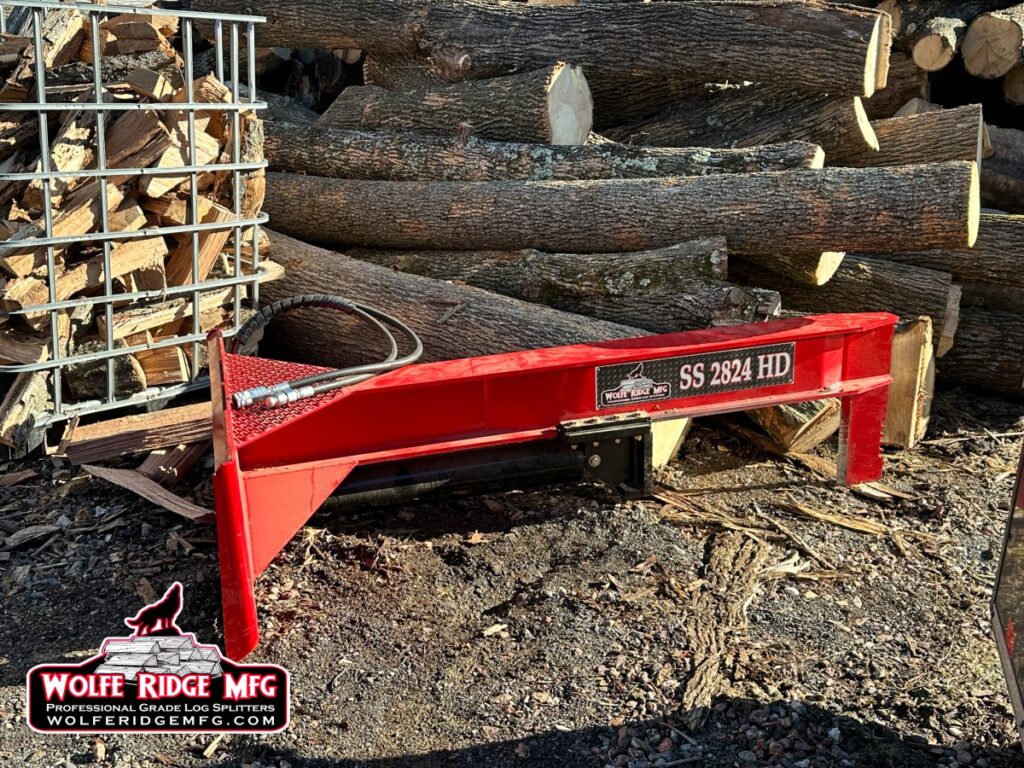

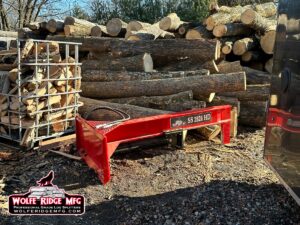

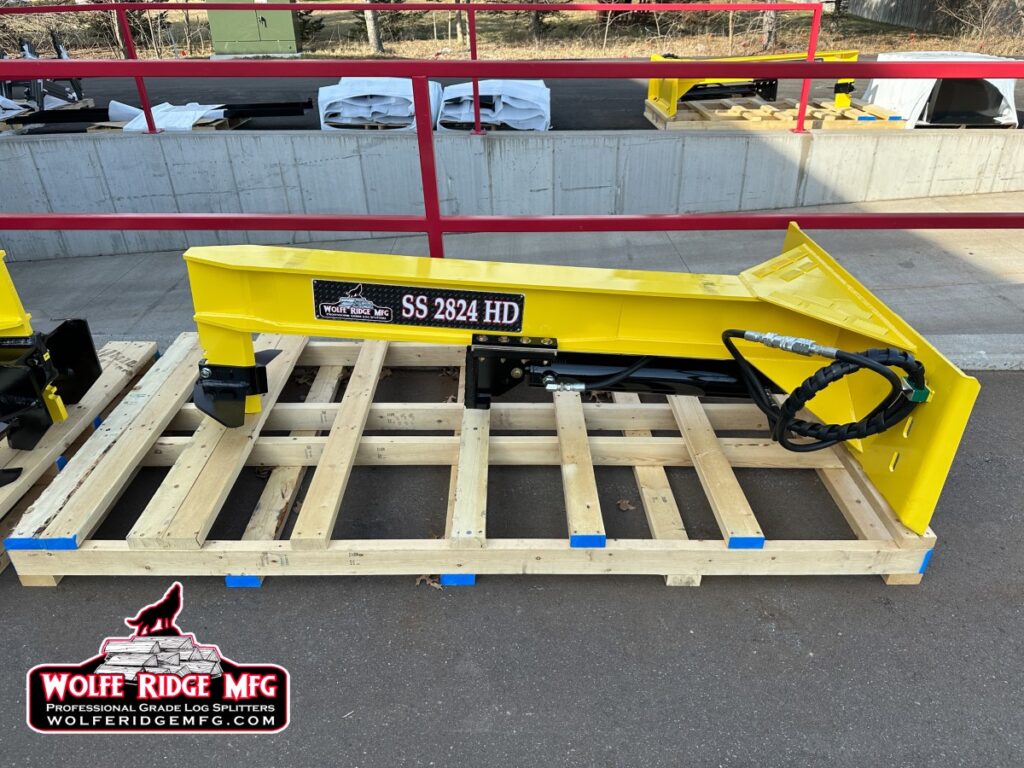

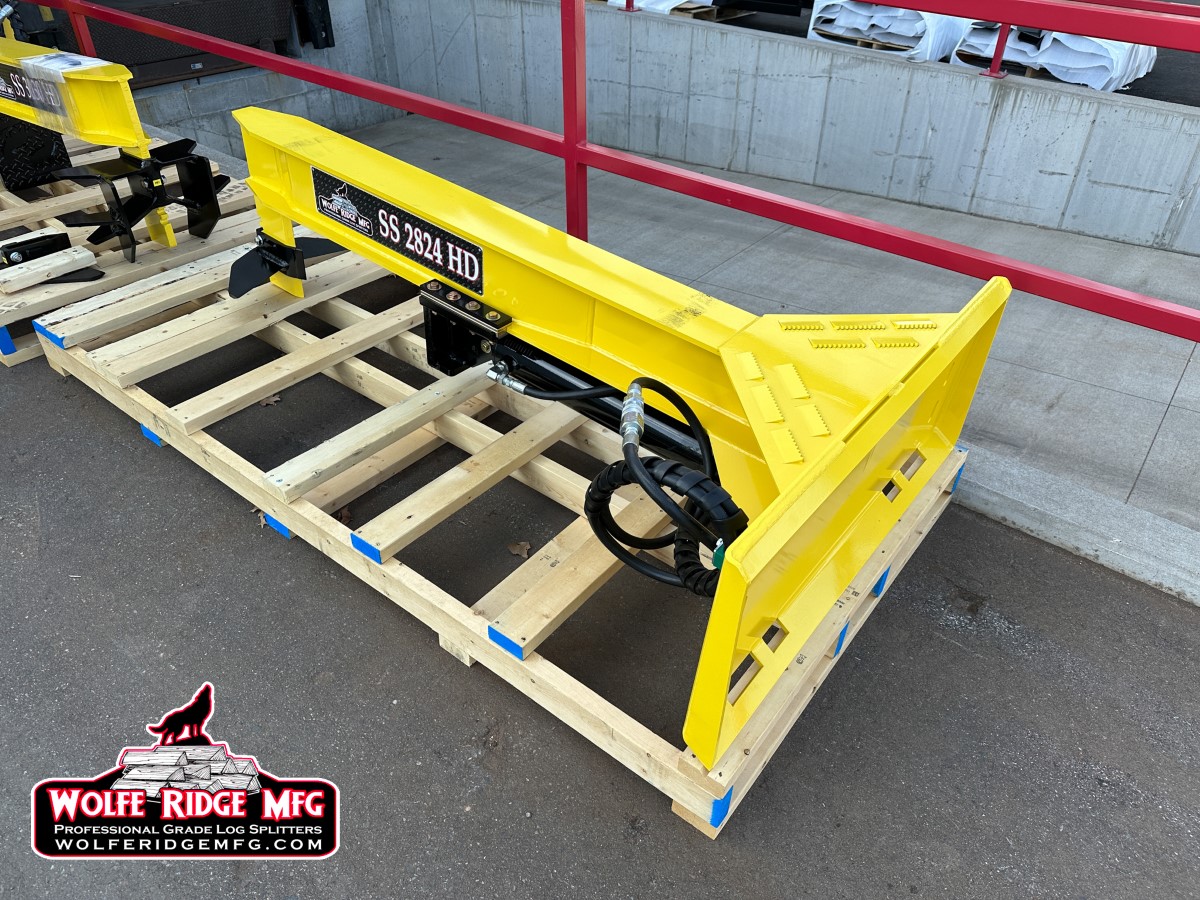

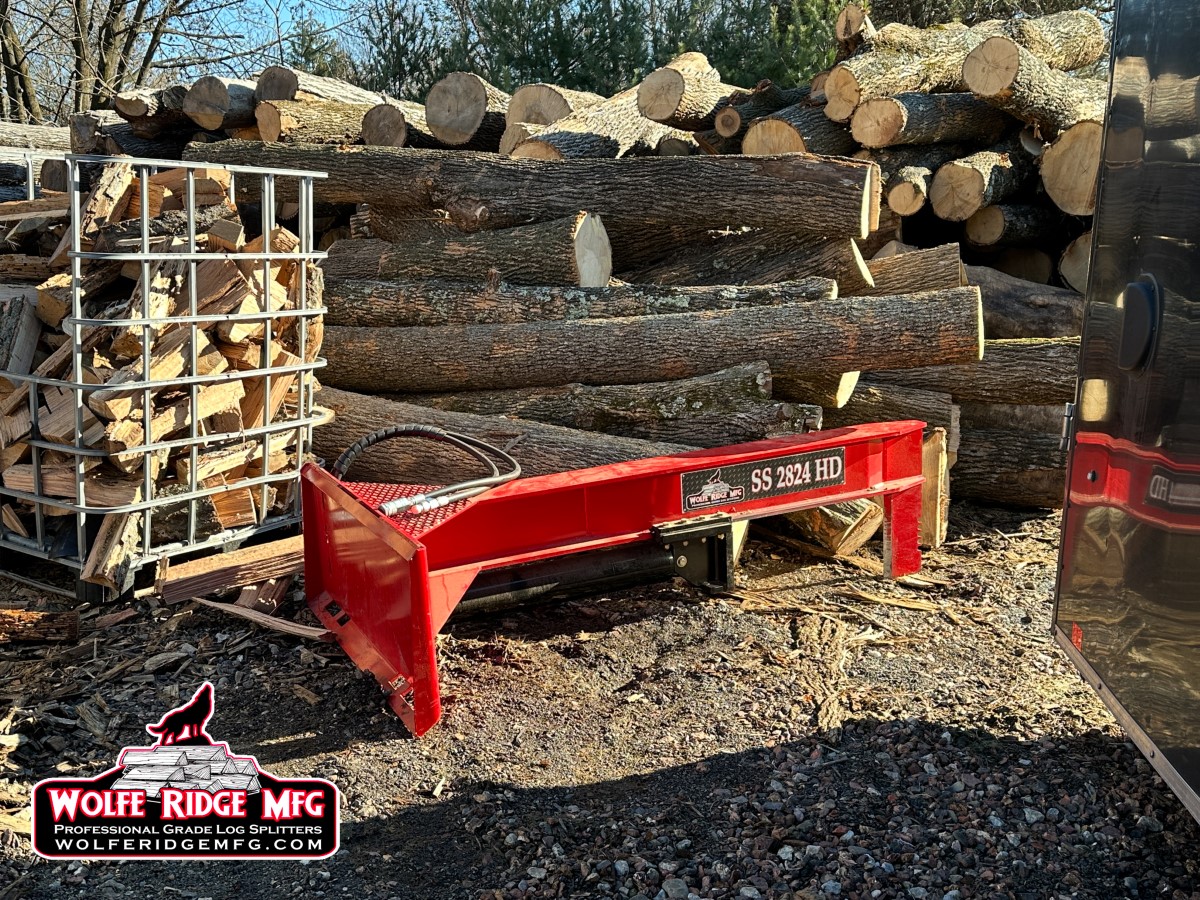

The SS2824HD is a skid steer splitter that is built with a 28 ton cylinder, and has a 24 inch stroke. SSQA mounting plate is standard and it comes with hoses and flat face quick connect hydraulic couplers. Break down huge rounds without breaking your back with a skid steer splitter from Wolfe Ridge. The once optional “Magnum Package” is now standard equipment!
Tech Specs
- Heavy Duty Inverted Log Splitter for SkidSteer
- Heavy duty design, pick up and split those large logs easily!
- 8” reinforced H beam with non-slip step
- 1” thick pusher with grade 8 hardware
- 28 ton splitting force
- 24 inch stroke length
- Removable 4 way wedge included
- Universal quick attach plate
- Flat face hydraulic couplers included
- Gates brand hoses with swivel hydraulic fittings
- 12” AR400 main wedge welded through the beam
- Heavy duty welded cylinder rated for 3500 PSI
- 82″ x 46″ x 20″ overall size
- Shipping weight: 650 lb
- MAGNUM PACKAGE NOW STANDARD INCLUDES:
- Taller 12-bolt push block (also makes grabbing logs off the ground easier)
- Big bore cylinder for faster return, therefore faster cycle times
- *Required for use with 12-way splitting wedge
Shipping
Our skid steer splitters can ship on a pallet, or via partial flatbed / hotshot trucking. If you have a freight terminal near you we can arrange freight to that location. Or, if a semi truck can get to your address, we can arrange a shipment with liftgate service. You could also pick up your new machine from the closest Wolfe Ridge dealer. Check out our dealer locator.
Please note:
- If you have a machine shipped via partial flatbed or hotshot, you will need a piece of equipment for unloading. Such as a forklift, tractor or skid steer with pallet forks and sufficient lifting capacity.
- If you have your machine shipped LTL on a pallet, we can also offer optional liftgate service. Your new machine would get unloaded at the end of your driveway closest to the road – provided a semi truck can get to your address.
Video
Brian –
I bought one a couple seasons ago and it’s quite the splitter. I was using it on a standard flow skid steer with 17.1 GPM and it busted through gigantic rounds like butter. Now using it on a 2024 Kubota SSV65 skid steer. with standard flow of 18gpm and cycle time is right around 6 seconds . I get a lot of tree. service wood so it’s usually the big, barely manageable pieces that wont fit into their chippers but this thing breaks them down to manageable pieces like nothing. Plus, I can do it in the comfort (a/c or heat) in the cab of my skid steer.
