Rammy ATV Thrower Plow W165 / ST30 Package

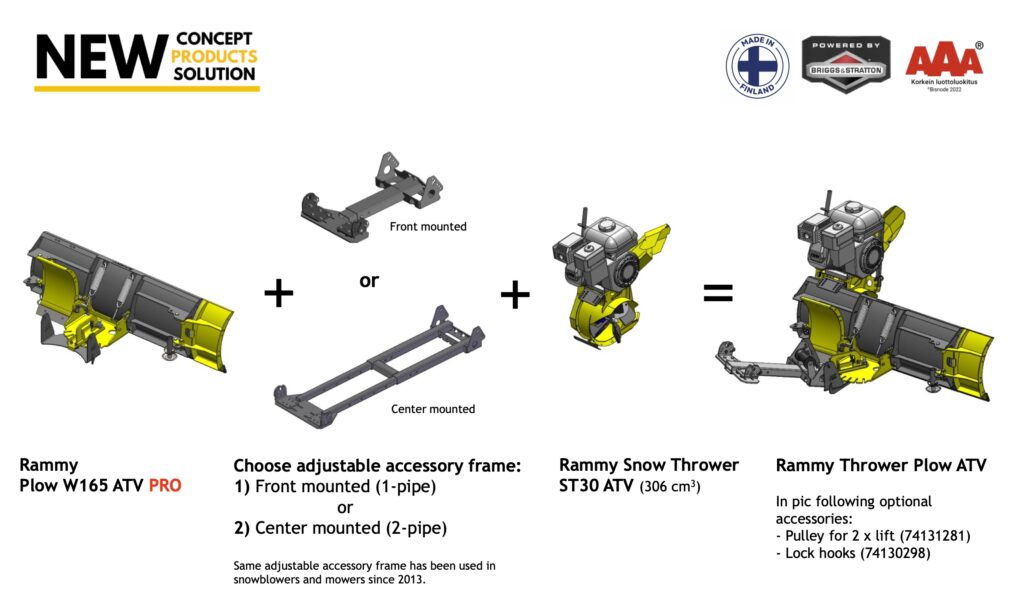

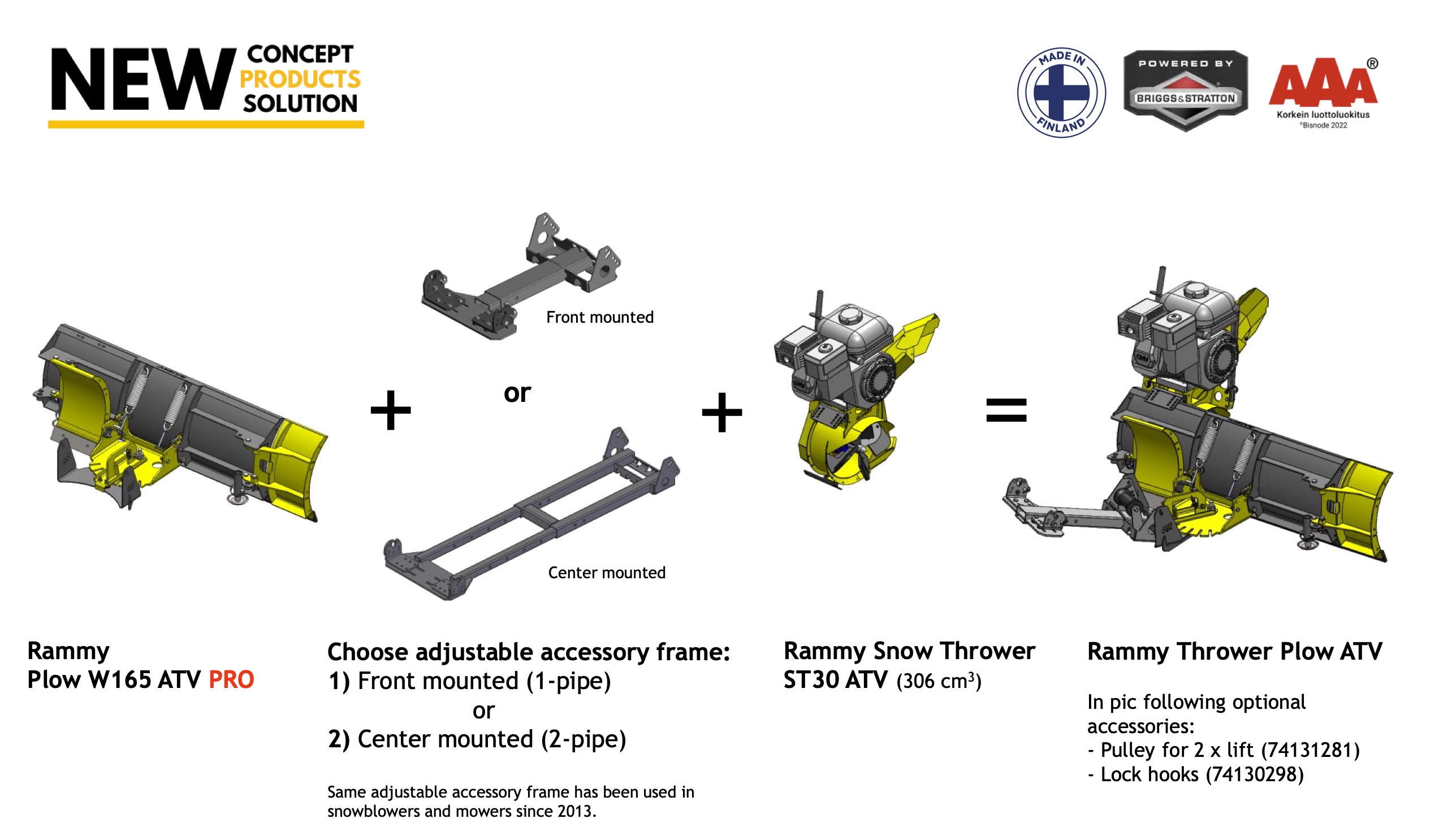

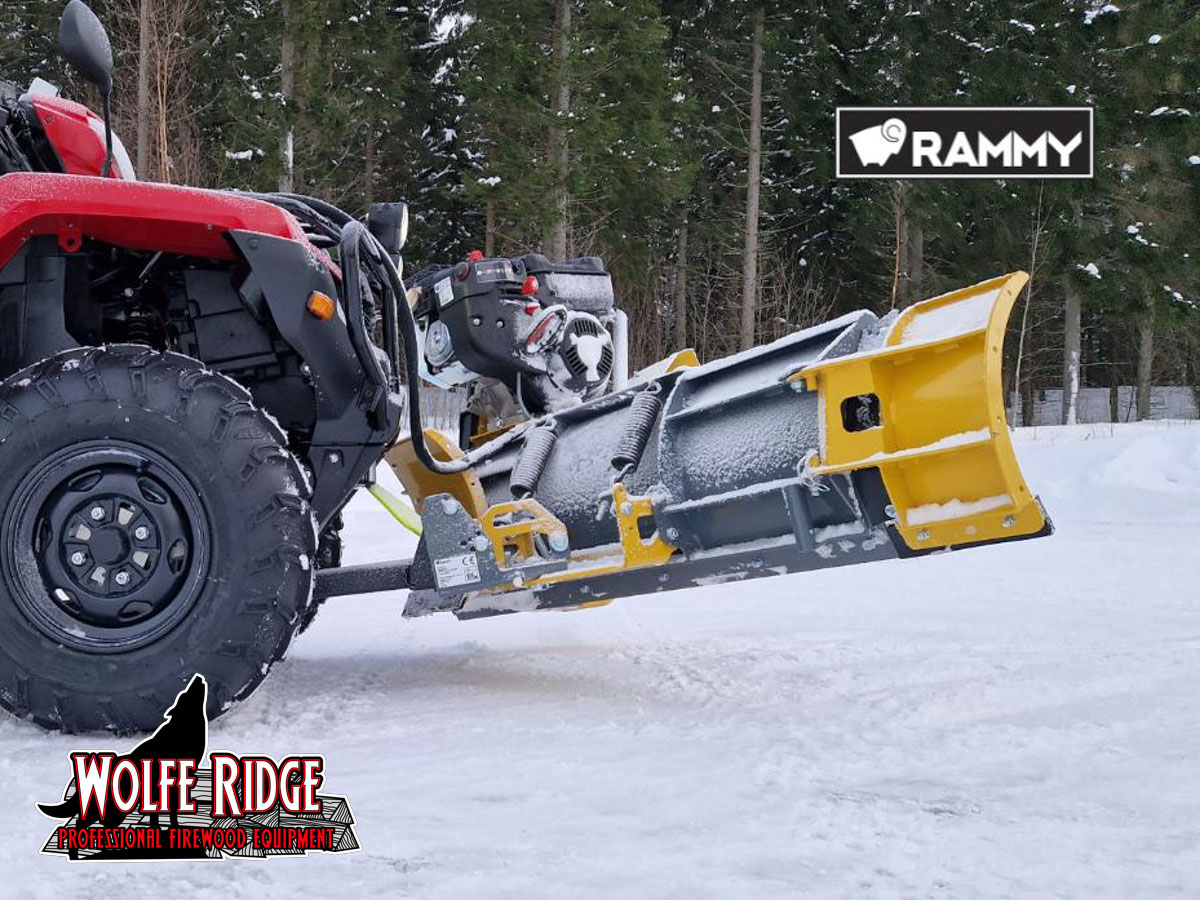

Clear snow quickly and easily with your ATV and the Rammy ATV Thrower Plow package. This package from Rammy includes a high quality, robust W165 snow plow and an attached snow thrower mounted at the end of the plow. For best performance, the plow blade is run at an angle, and all snow being plowed is fed into the attached ST30 snow thrower. The ST30 then takes the snow and throws it up to 45 feet!* (throwing performance will vary depending on type of snow).

Recommended for ATV use only

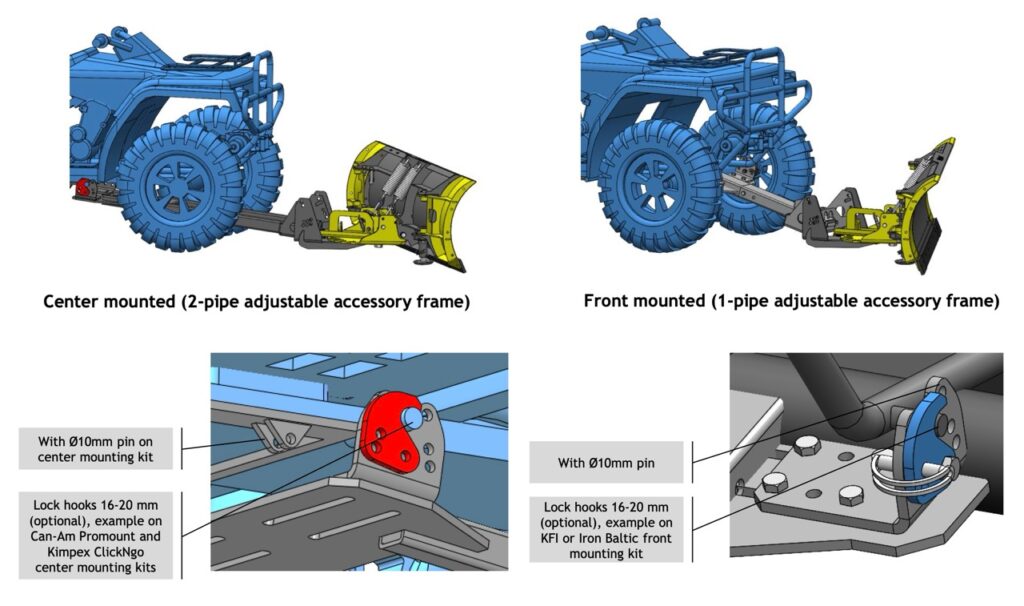

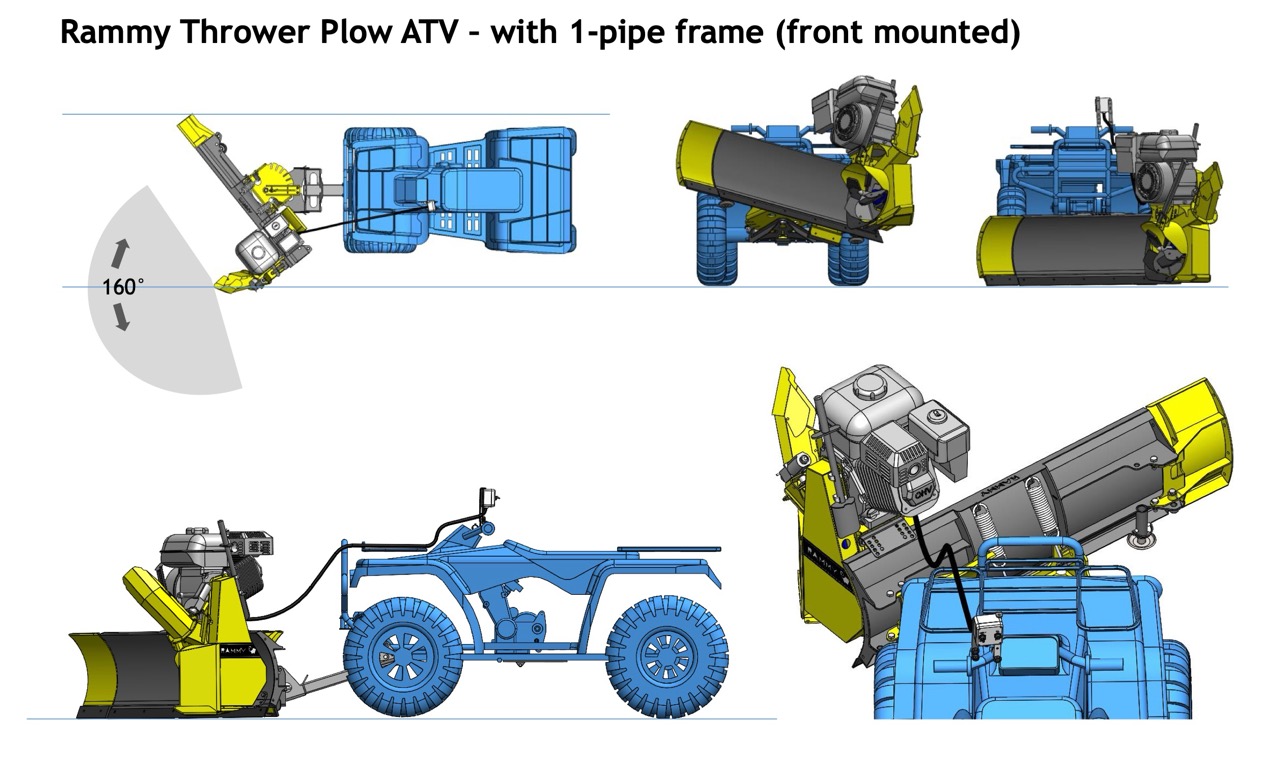

The Thrower Plow package includes either a front mount (short, 1 pipe) or center mount (long 2 pipe) subframe. This subframe is universally adjustable will attach to almost any snowplow mount bracket, as long as that bracket utilizes 10mm / 3/8″ pins to attach. This subframe is adjustable telescopically in and out, and it has adjustable L bracket ears to fit most plow mounts. This subframe then bolts onto the Rammy attachment. If your machine has 16mm, 19mm, or 20mm mounting posts, you can add the optional Rammy Lock / Hook Set for easy attachment. *See below mounting diagram for more information.*

Important Notes

A universal or model specific snowplow mount bracket is required to attach the Rammy to your machine. If you already have a snow plow bracket installed, the Rammy may attach right to it! The subframe (or push tube) is included with the Rammy, but the mount bracket is not. We do not sell mount brackets, but have had good success using KFI Products vehicle-specific snow plow mount brackets.
A winch is required to raise and lower the Rammy. You will require a vehicle specific winch, so we recommend working with the nearest dealer for your brand of ATV for the best solution.
Rammy attachments add a substantial amount of weight to the front of your ATV (see tech specs). We recommend at the minimum a 500CC ATV / UTV to use with a Rammy Thrower Plow – but all ATV’s vary. Make sure that your front suspension is strong enough to handle the additional weight of a Rammy. We also recommend using about 50-100lb of ballast weight on the rear of your ATV / UTV to help keep things level.
For best results, we recommend installing the subframe onto your ATV first, then bolt the Rammy Thrower Plow to the subframe while both the vehicle, and the Rammy are on the same level surface.

Installation

After your initial installation and setup with the subframe, detaching and reattaching the Rammy is done in a matter of minutes! This means that your ATV can easily be used for other activities quickly and easily when you are not using the Rammy. The Rammy ATV Thrower Plow is a game changer for snow removal with an ATV!

Briggs and Stratton 306cc Professional Series engine
- 14.00 ft/lb gross torque
- Certified to start at -20* fahrenheit
- 120 volt plug-in electric start (using standard 3 prong extension cord)

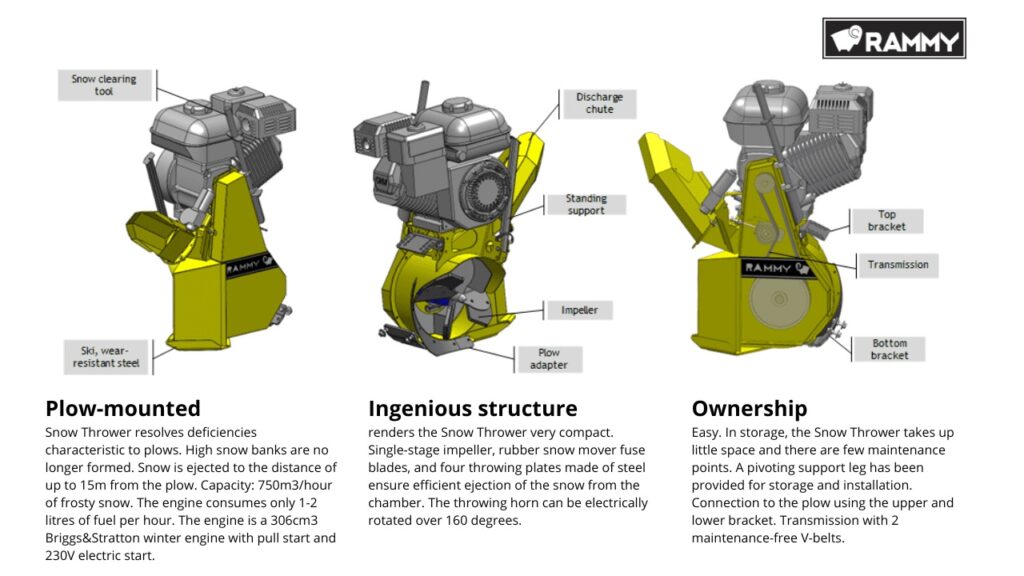

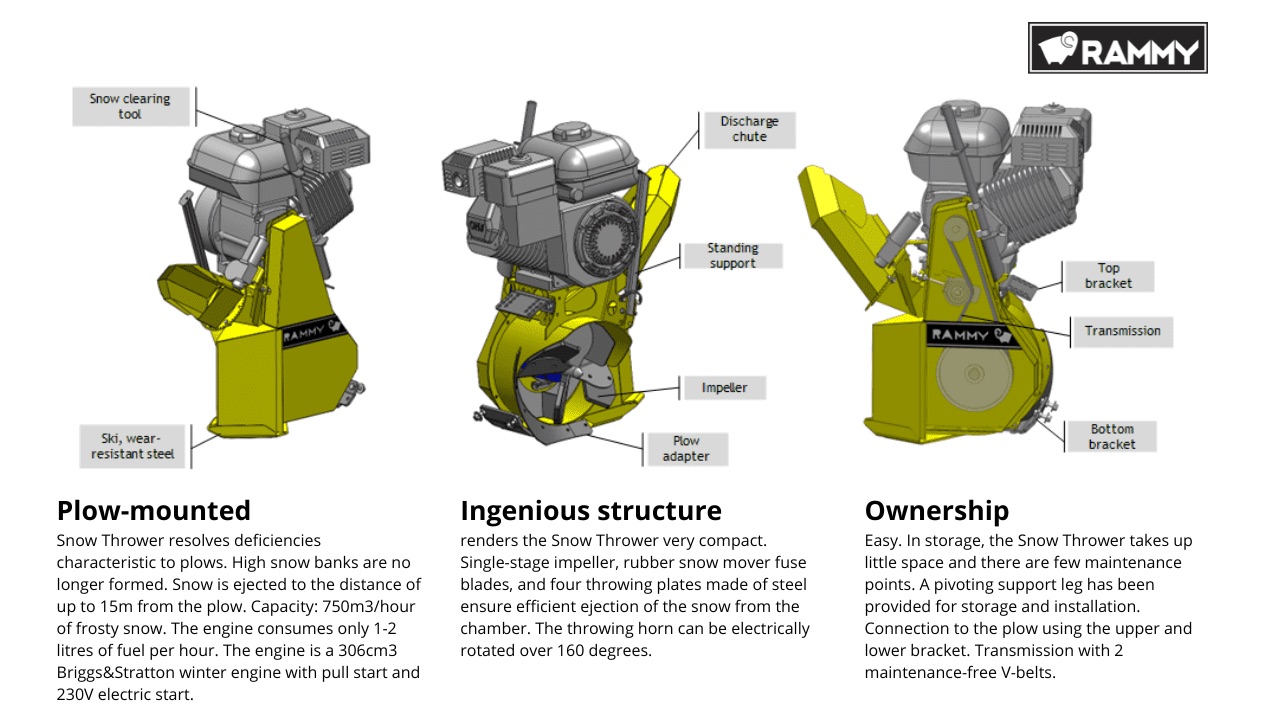

Rammy ST30 throwing system
- No shear pins to break!
- No gearbox to maintain!
- Throws snow 10-45 feet!
Adjustable height skid shoes on plow
Replaceable metal scraper bar
Flip-down chute door for easy clean out if needed
Included wired remote control box powered by the engine!
- Left / right chute control
- On / off engine switch (kill switch)
2 year warranty on Rammy machine – *Does not include belts, skid shoes, or bearings
2 year warranty on Briggs & Stratton engine – *Does not include fuel related issues

Whether you need to keep your own driveway clear, or clear snow at multiple properties, the Rammy Thrower Plow package is a versatile attachment that is easy to install, use, and maintain. Invest in a high-quality, made in Finland ATV attachment package that is backed by Wolfe Ridge in North America!

Tech Specs

Briggs & Stratton 306cc 14.00 ft/lb torque gas engine
- Recoil pull start AND 120 volt plug in electric start
Belt driven – 2x matched belt set pair
Main plow = 46.5″ overall width
With included wings:
- One wing folded open = 55.9″ overall width
- Two wings folded open = 65″ overall width
4 position height adjustable skid shoes
7 angle positions for main plow
10-45′ snow throwing distance
Universal adjustable short or long subframe (pushtube) included
- **Must choose front or center mount at time of ordering**
Thrower Plow weight: 215 LB
Subframe weight: 55 LB
Total attachment weight (Snowblower + Subframe): 265 LB

Find a Rammy Dealer Near You

Rammy dealers are well-versed in the machines, and how all of the mounting systems work. These dealers also offer installation of the Rammy products – for an additional service fee. This fee varies depending on your machine, and whether or not you would need additional parts, such as a winch or mount bracket, in order to install the machine. Please visit our North American Rammy dealer locator HERE.

Shipping

Rammy machines ship via LTL, on a pallet. If a semi truck can get to your address, we can arrange a shipment with liftgate service. Freight price is usually between $500-$800 in the US, and a bit higher in Canada. For a freight quote, please fill out the form at the bottom of this page with your full ship-to address. To save some freight, and possibly lead time, we recommend contacting the Rammy dealer closest to you. Please visit our North American Rammy dealer locator HERE.

**IMPORTANT SHIPPING NOTES**

If you order a machine and do not opt for liftgate service, you will need a forklift or skid steer / loader / tractor with forks for unloading. These machines are not able to be unloaded by hand!
If you order liftgate service, the truck will unload your machine at the end of your driveway closest to the road. Semi truck / trailers will not typically drive on residential driveways so please keep this in mind.
We can also offer “terminal pickup” for your machine, so you would go to the nearest freight terminal to pick it up. In that case, the shipping company would load your crated machine onto a trailer on into the bed of your truck. Note that the crate size is 48″L x 32″W x 42″H.
