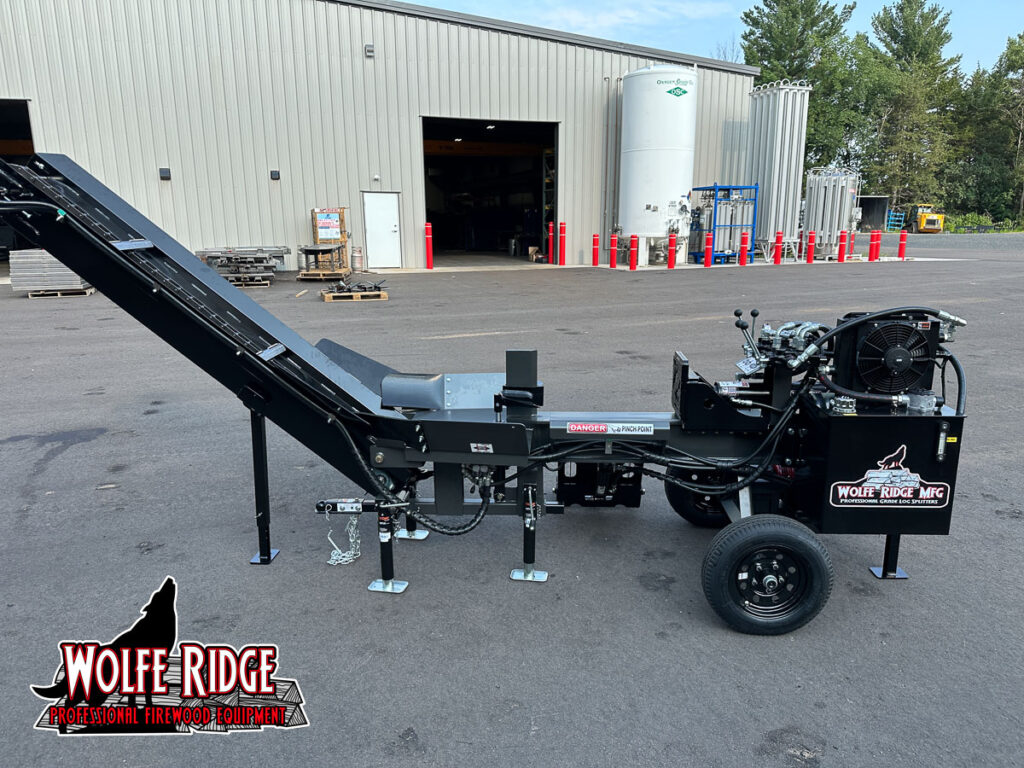

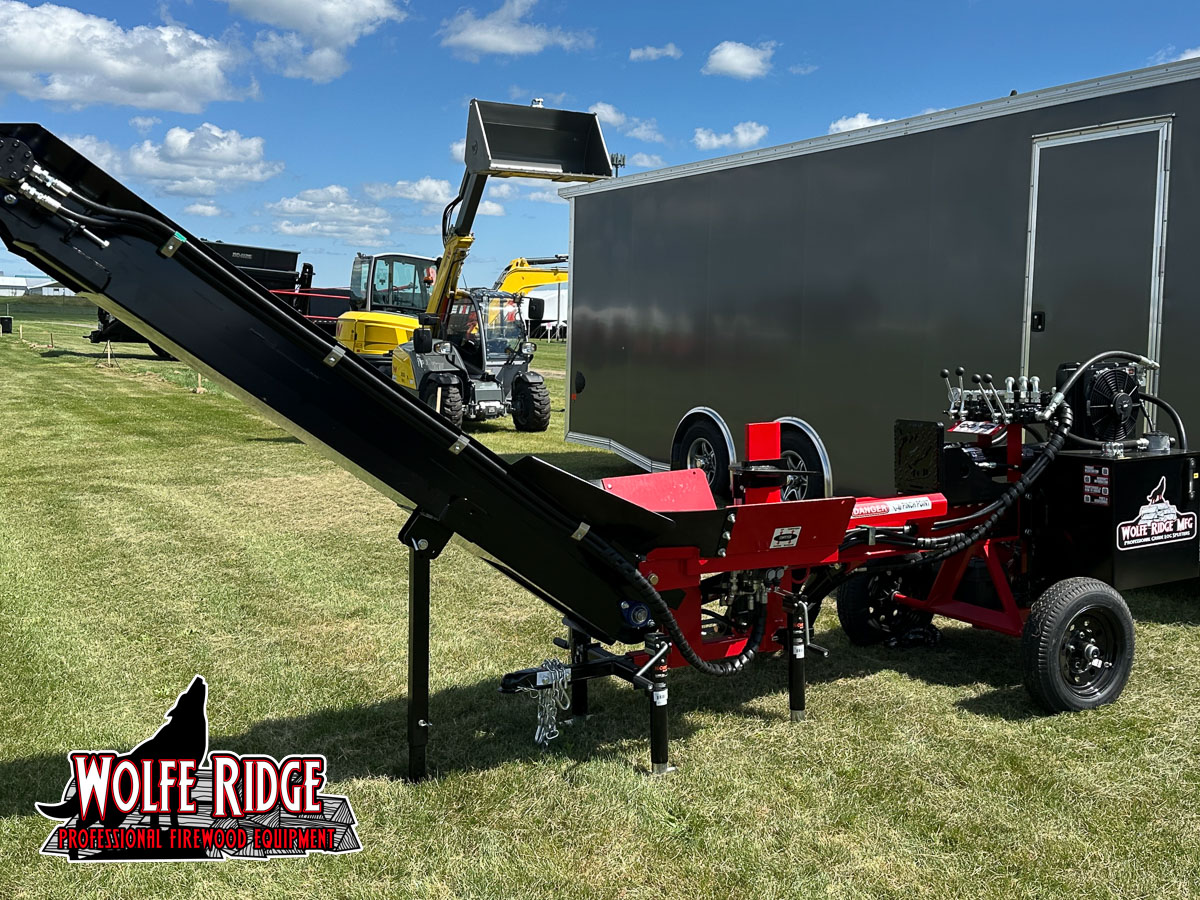

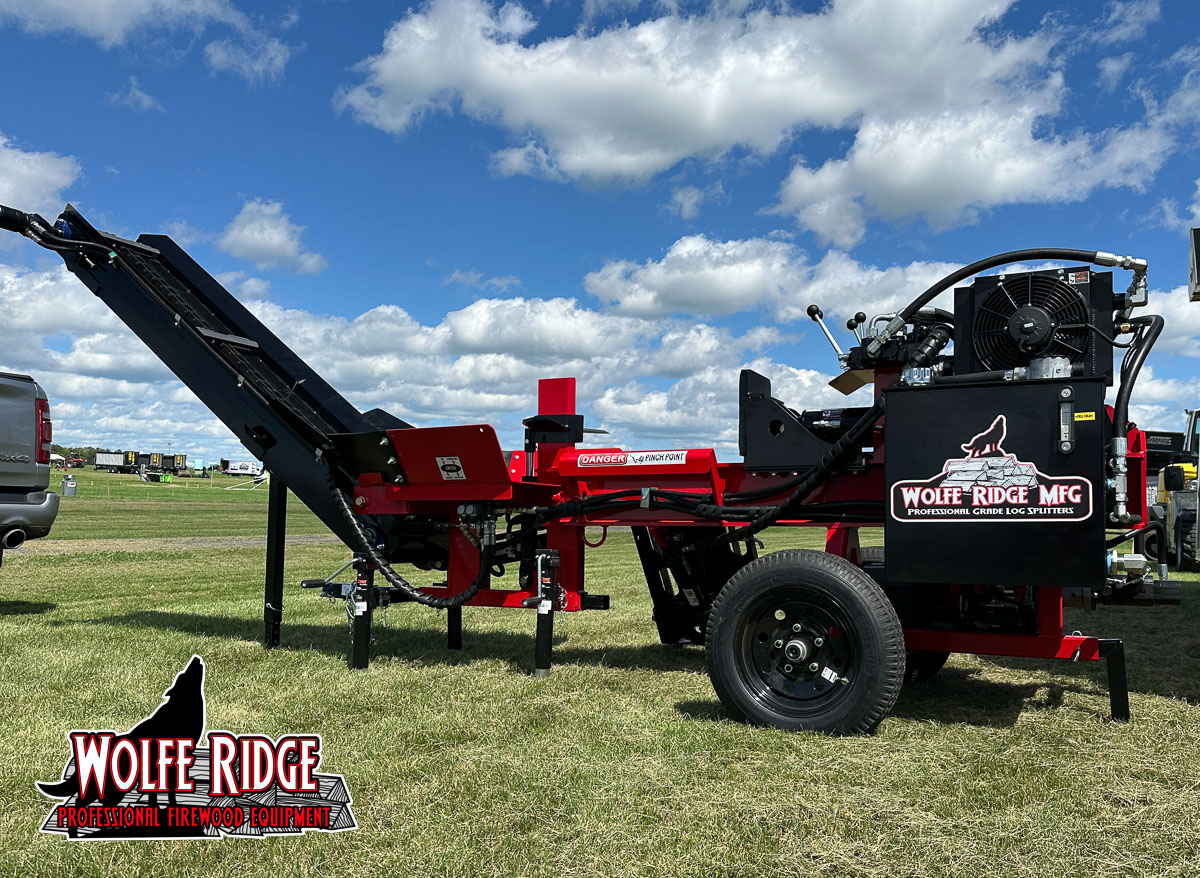

28C-C & 35C-C - Log Splitter with Attached Conveyor

The Wolfe Ridge 28C-C and 35C-C takes our proven Compact Commercial log splitter and takes it to the next level with an attached hydraulic conveyor package! 28-ton splitting force for the 28C-C, or 35-ton splitting force for the 35C-C. Built to last, made in the USA, all Wolfe Ridge machines are produced with top-quality materials to ensure reliable performance, day in and day out.

The attached conveyor on this splitter is designed to fill an IBC tote with ease. Height of the conveyor is adjustable hydraulically, and it has forward and reverse with a pressure relief to protect components in the event of a jam. Along with the attached conveyor, the 28C-C and 35C-C includes a hydraulic oil cooler with thermostatically controlled 12 volt fan.

The 28C-C and 35C-C log splitter features the “Magnum Big Bore” package as standard equipment. This includes the tall push block and big bore cylinder for consistent performance and fast cycle times. This means less time and effort spent on splitting wood, and more time for everything else. The 28C-C or 35C-C splitter is the perfect choice for filling single IBC totes or similar containers quickly and easily without taking up much space in your woodyard.

28-ton or 35-ton splitting force
Magnum Big Bore package with fast cycle time
- 28C-C = 6.5 seconds
- 35C-C = 8.5 seconds
Powerful Honda engine for consistent performance

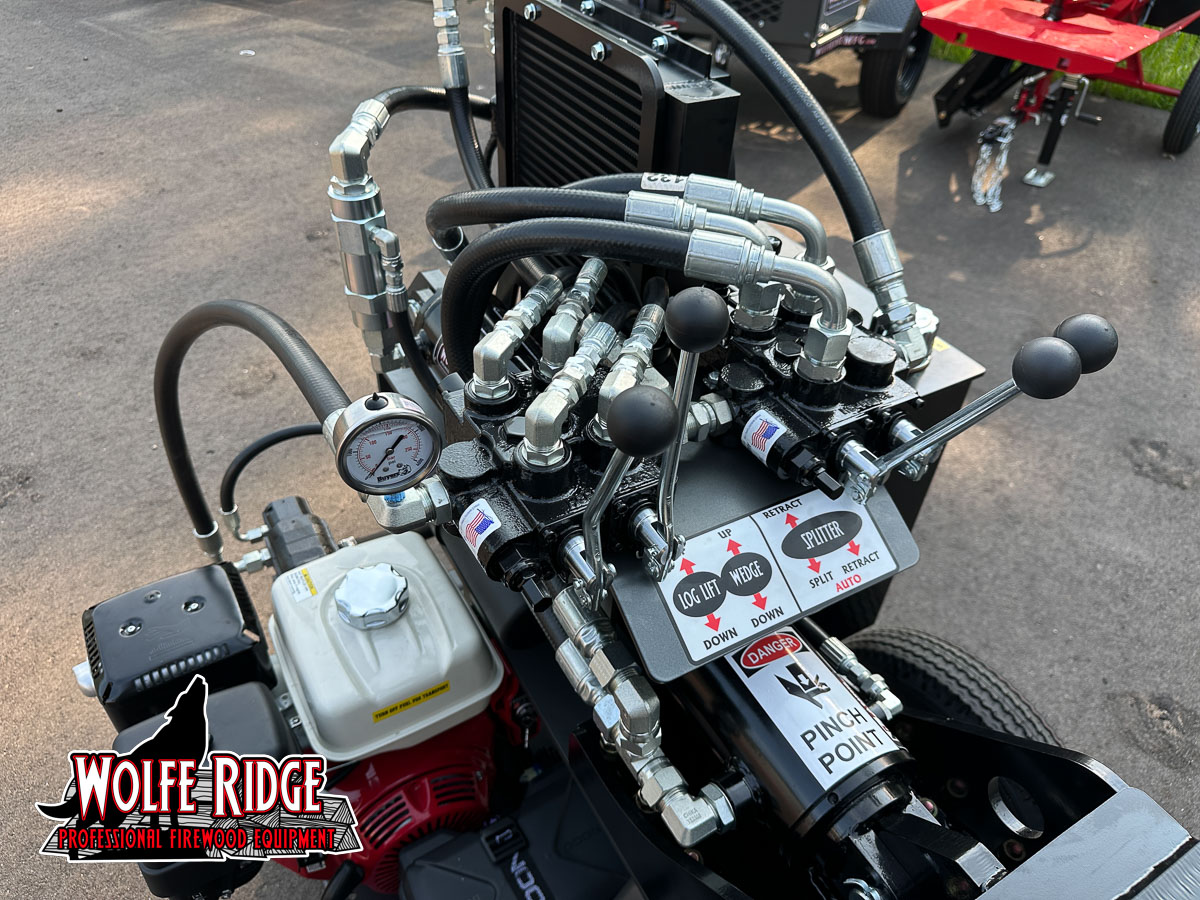

Easy-to-use controls – Made in USA Prince hydraulic valves
Hydraulic log lift as standard equipment
Hydraulic wedge height adjustment as standard equipment
Double stack hydraulic pump (small section to run conveyor)

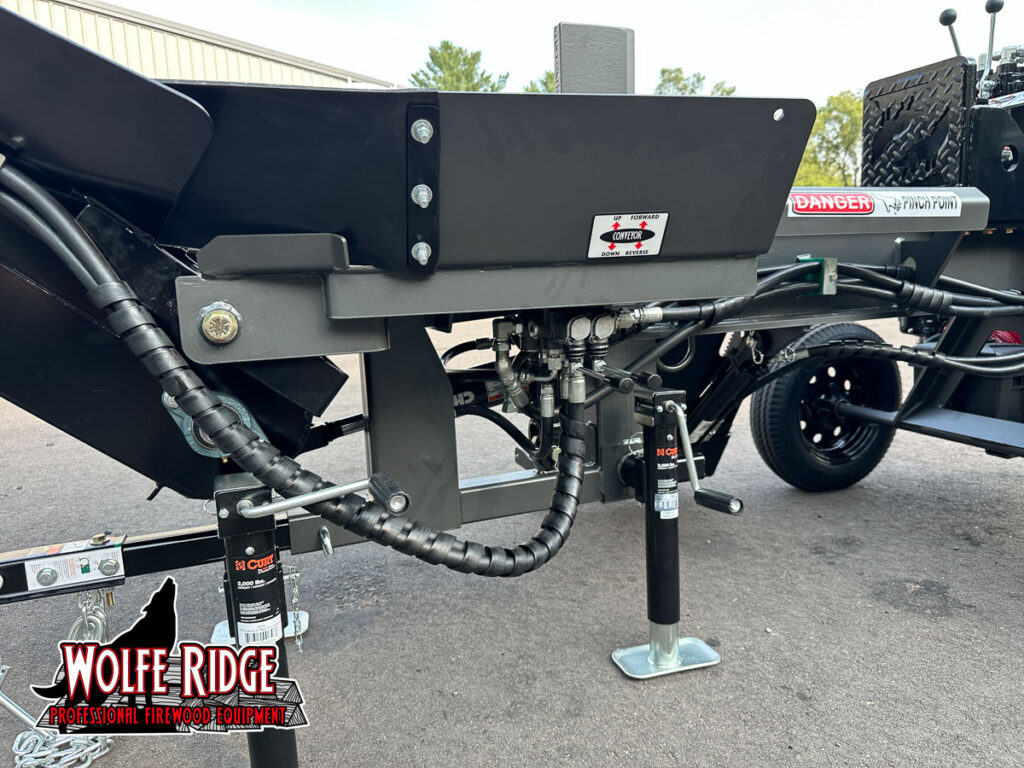

Valves under the sorting table for conveyor control

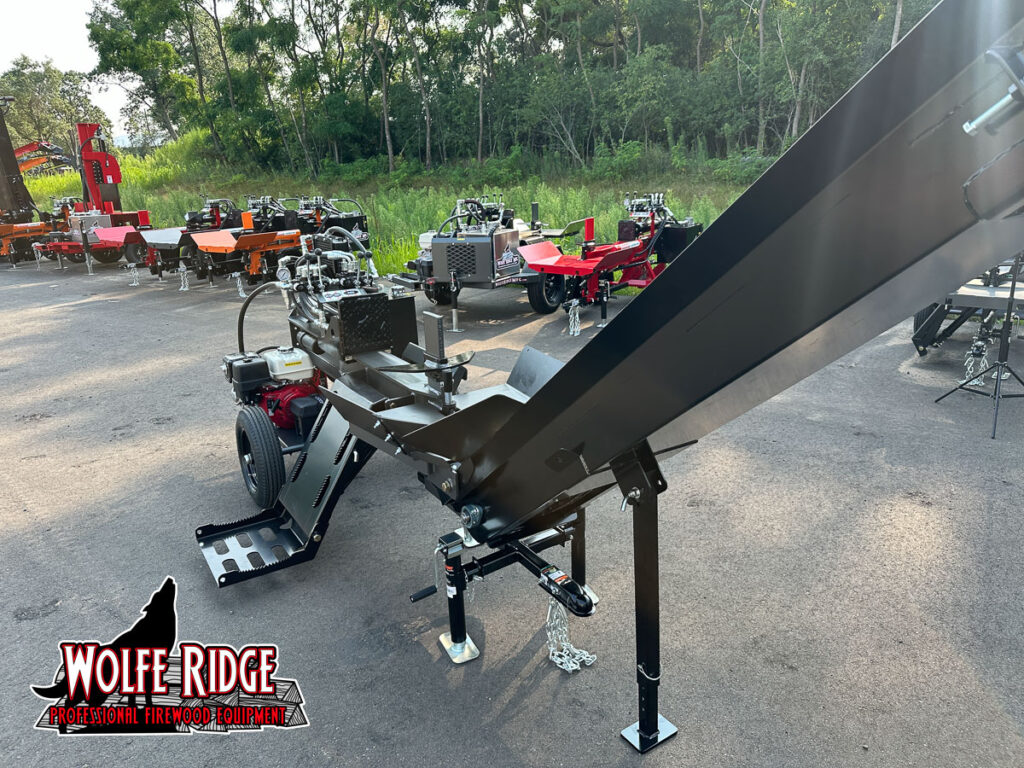

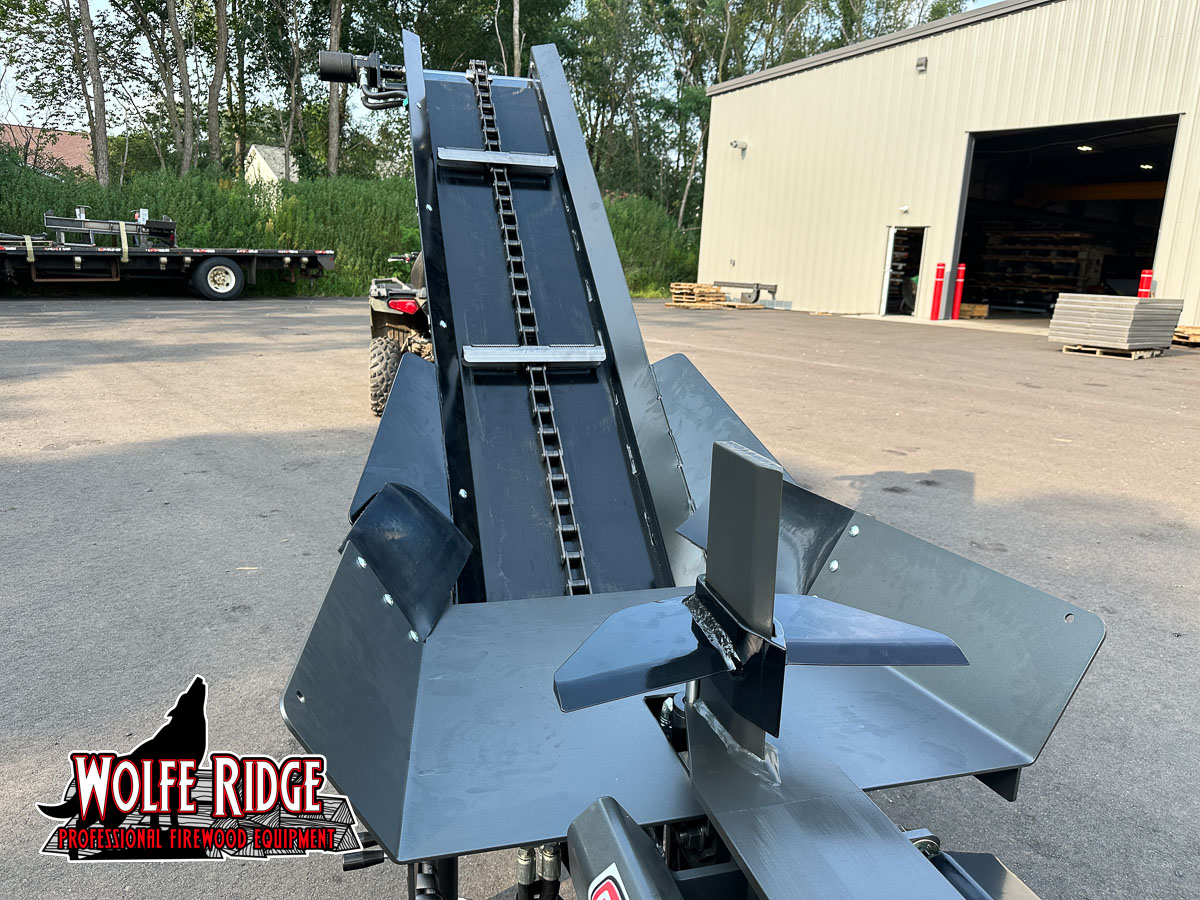

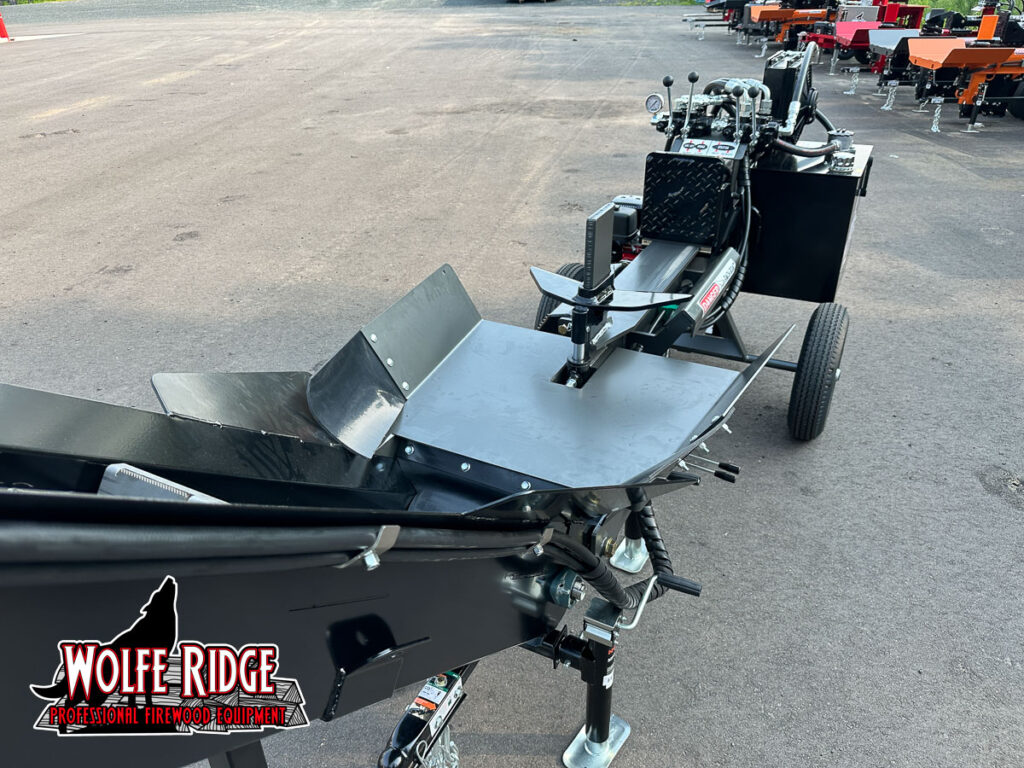

Redesigned sorting table for conveyor funnel action

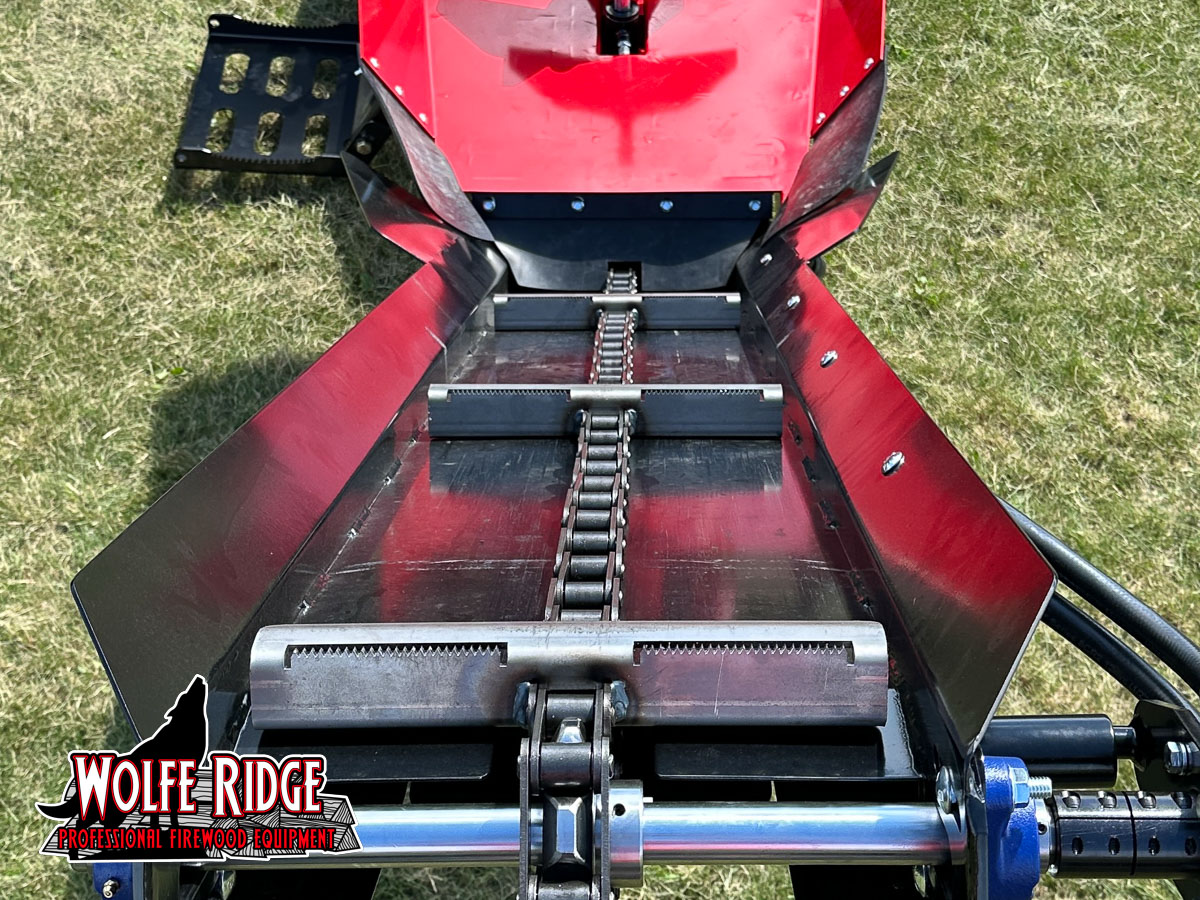

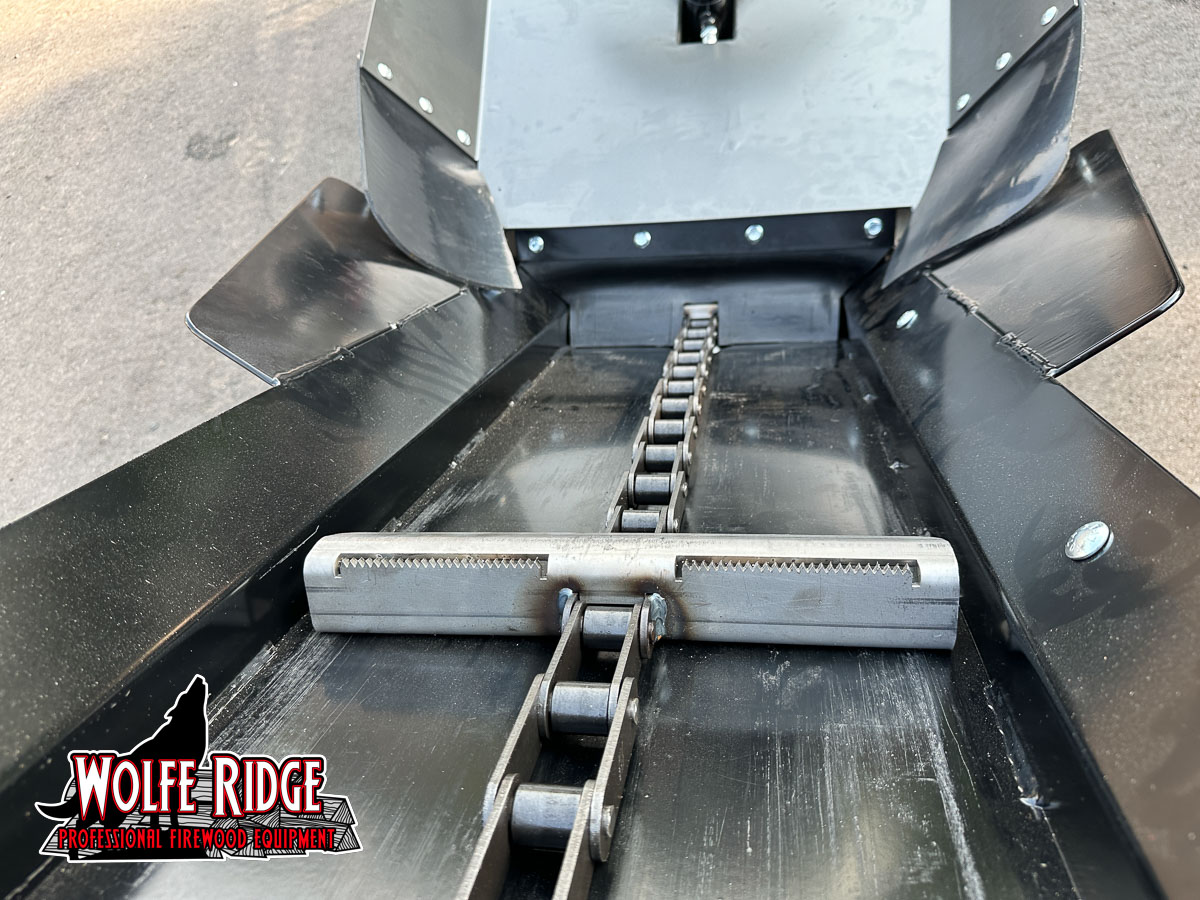

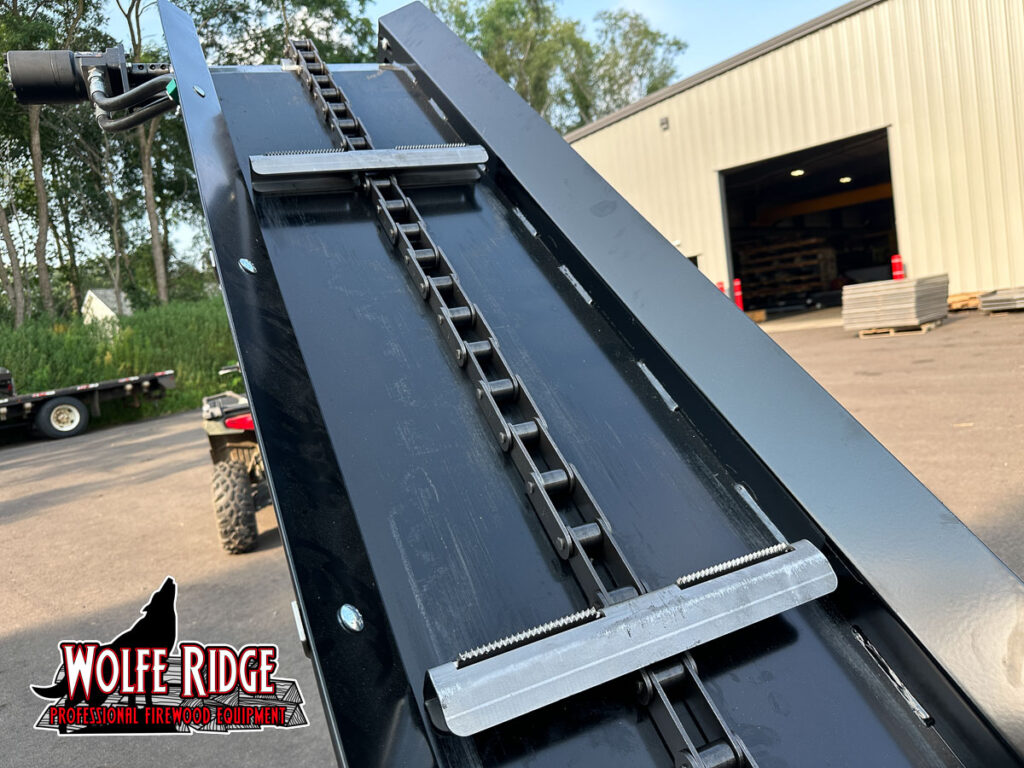

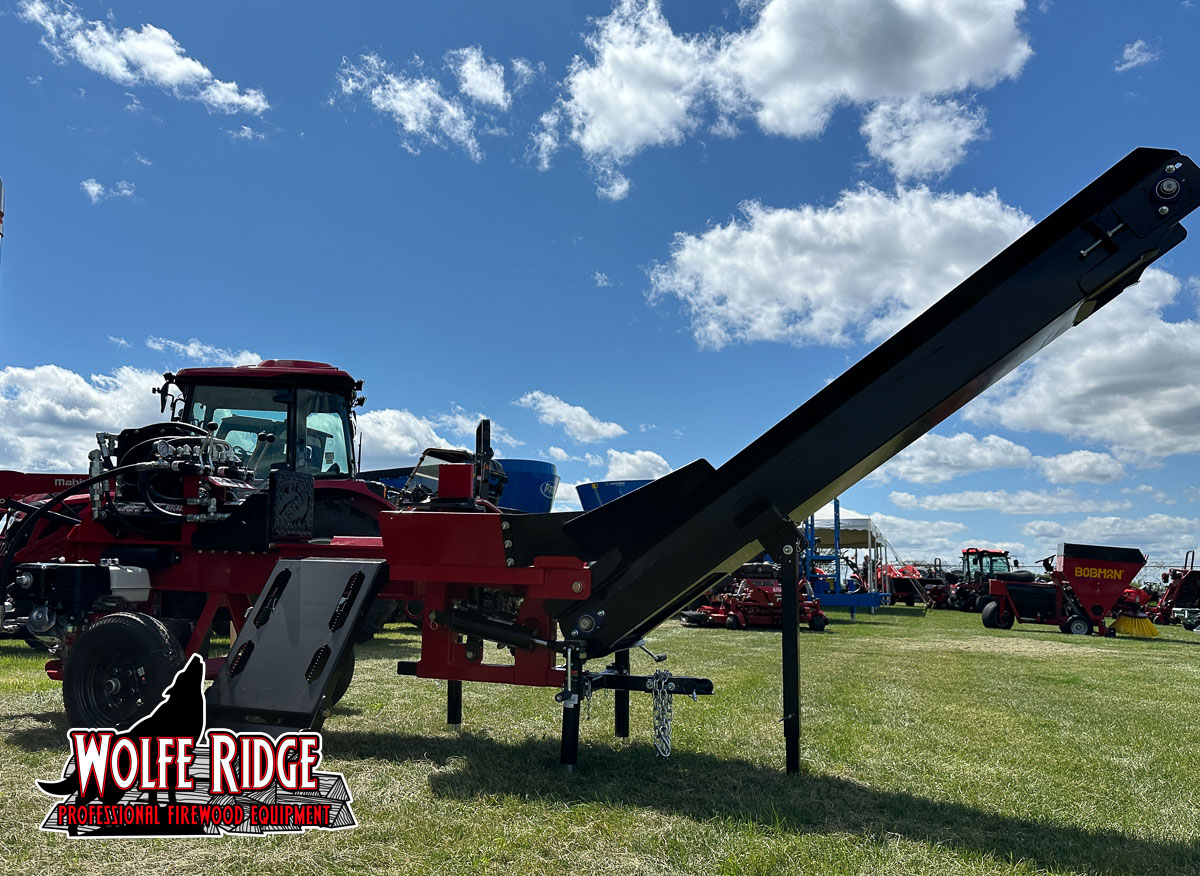

8’ hydraulic powered conveyor – same width as our stand-alone conveyors

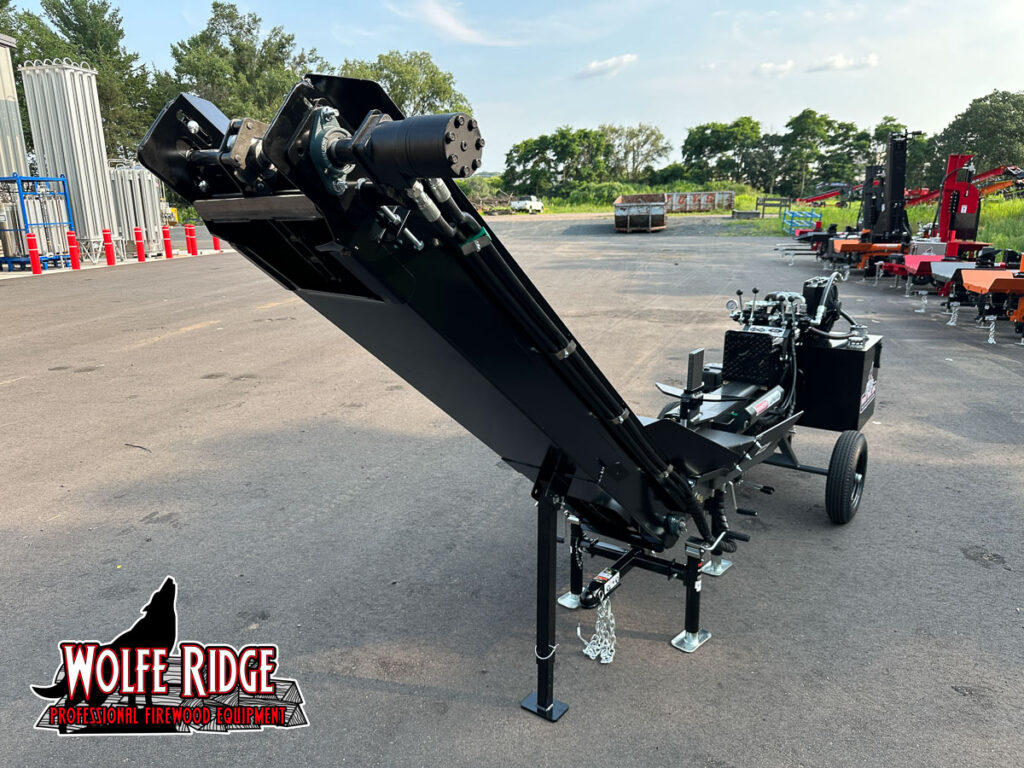

Hydraulic height adjustment for conveyor and hydraulic forward and reverse

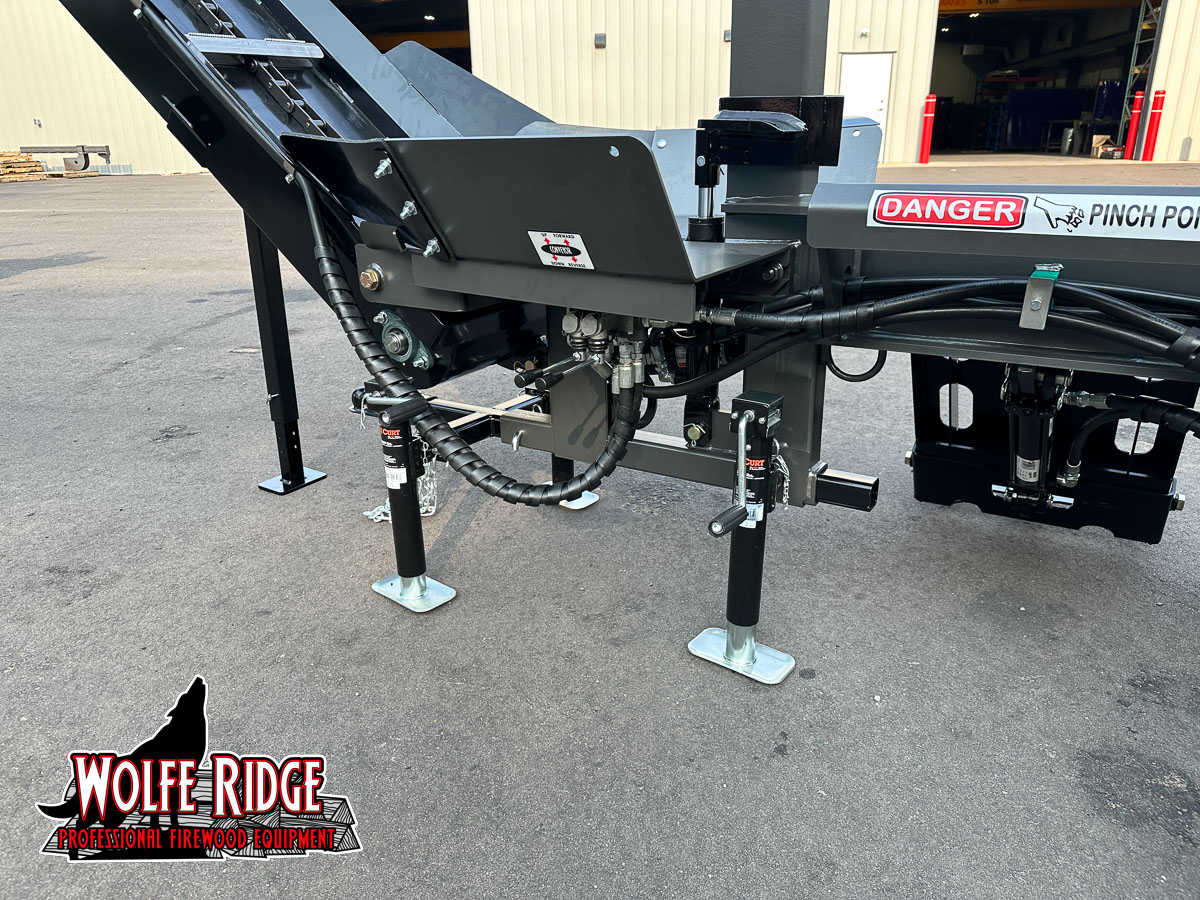

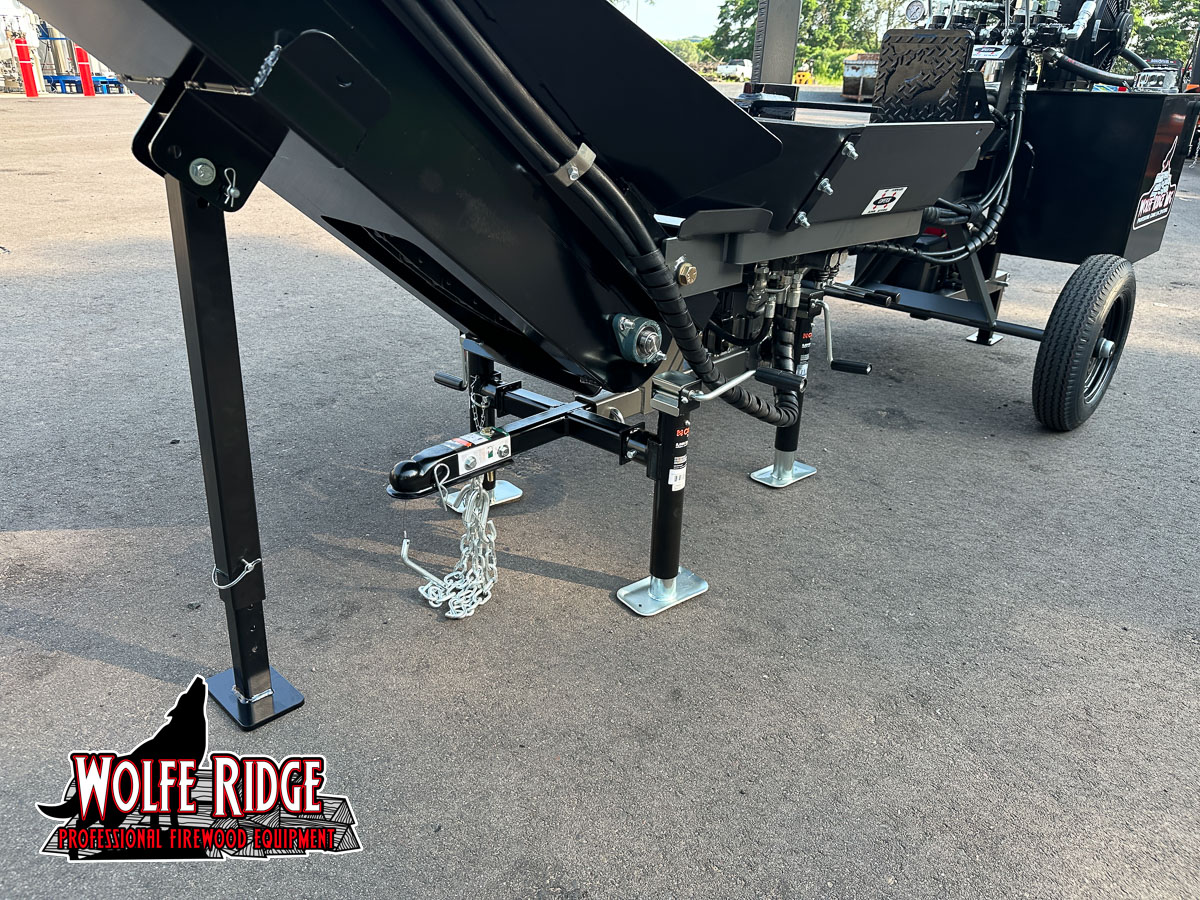

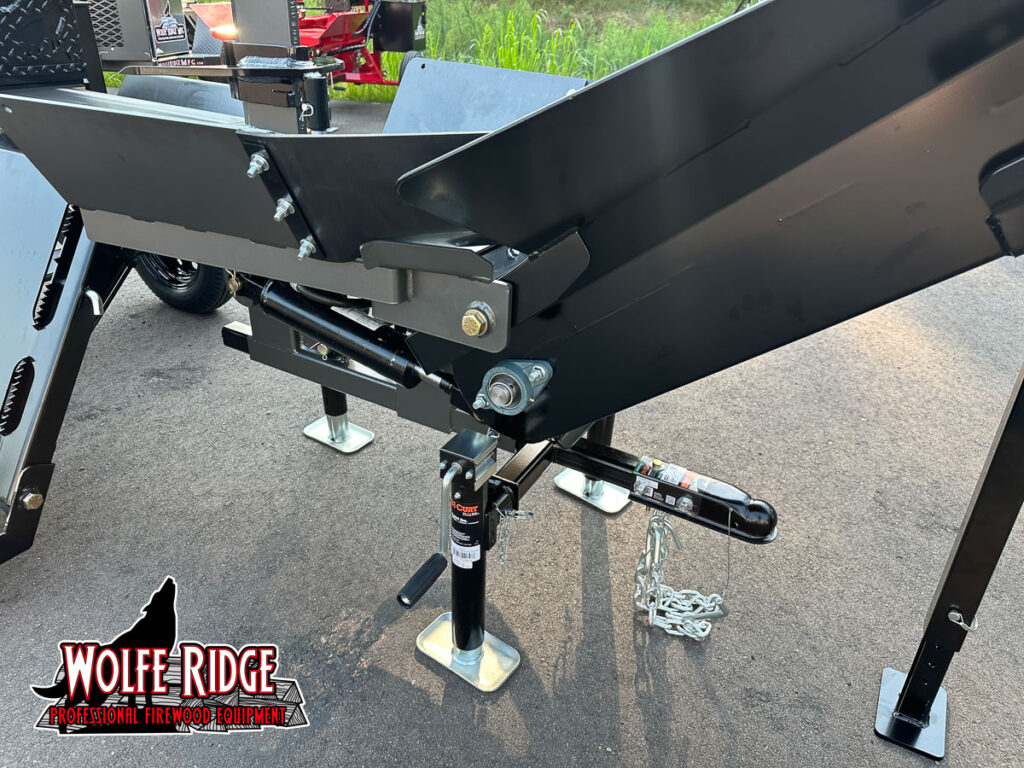

Revised drawbar with added jacks and positions for extra stability

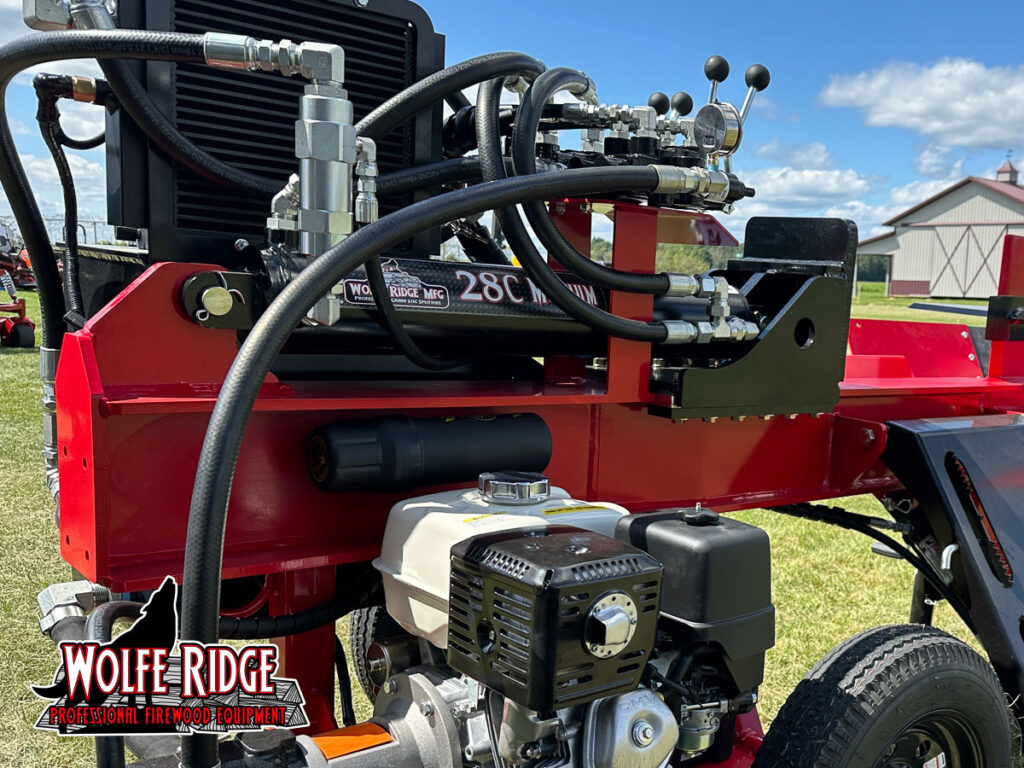

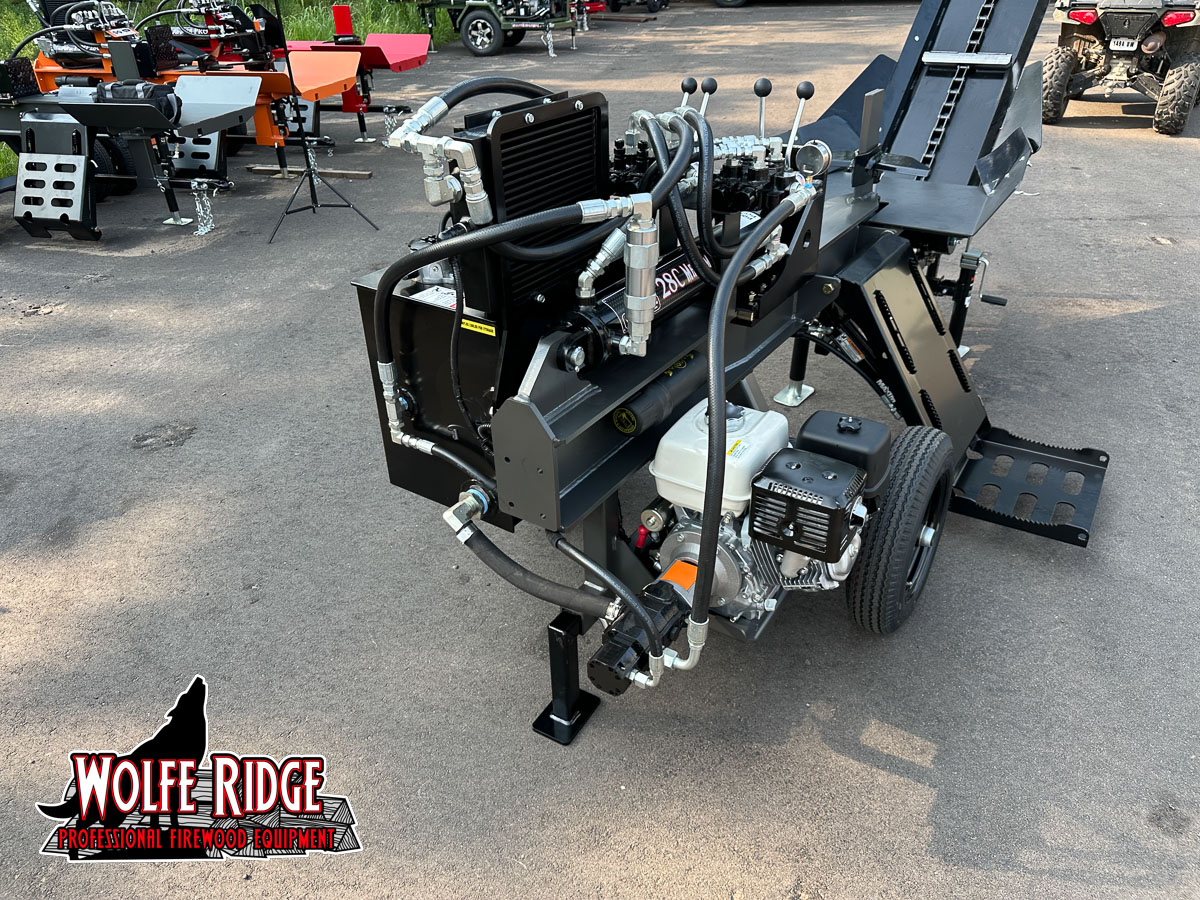

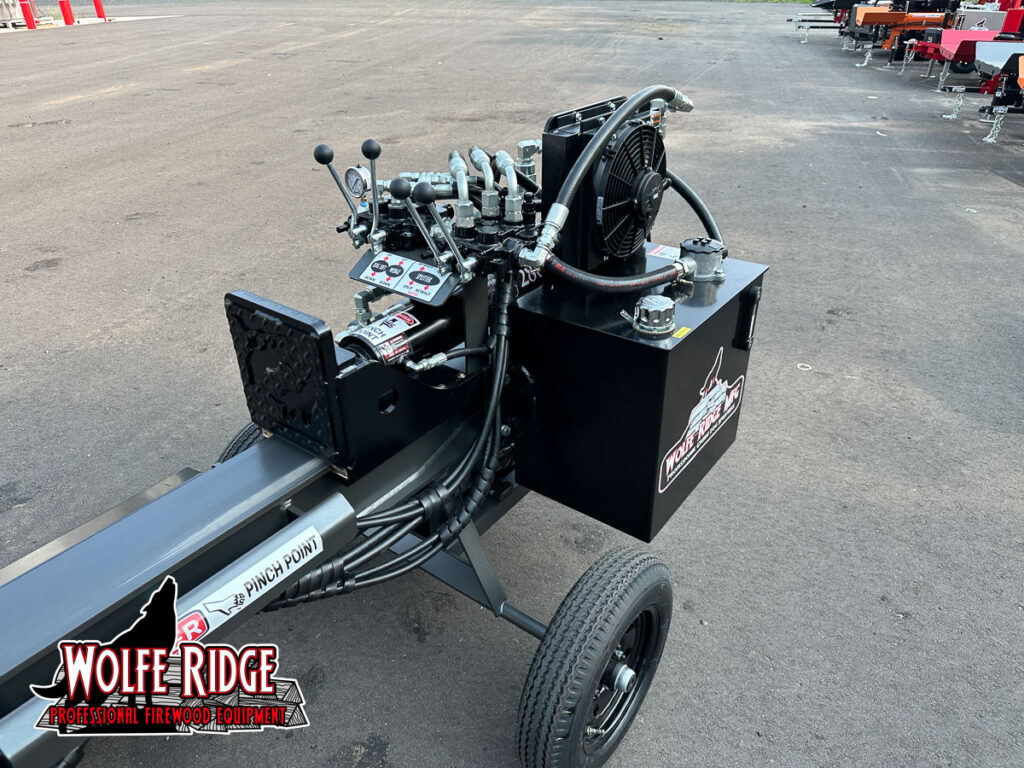

Hydraulic oil cooler package with thermostatically controlled 12 volt fan
Electric start as standard equipment
Sandblasted and powder coated for a tough, long lasting appearance
- Red, Orange, Gray, or Blue as standard color options
- Custom colors with any RAL color code for added fee
1 year warranty on machine – 3 year on engine

Whether you’re running a full time firewood business or just starting out, the Compact Commercial log splitter with attached conveyor is a robust and powerful solution for splitting wood and filling containers fast. Invest in a high-quality, made in USA log splitter that delivers exceptional results every time.

Tech Specs

Honda GX390 13HP engine
12 volt electric start with Interstate battery
10 amp charge coil for running auxiliary 12V items
22 GPM 2 section hydraulic pump (small section to run conveyor)
25 gallon hydraulic tank with cartridge return filter
Prince auto cycle valve
Magnum big bore package with 12 inch tall push block
Bronze self lube slides on push block
In-house welded & fabricated splitter beam
31 inch beam height
24 inch stroke – *NO EXTENDED STROKE OPTIONS FOR THE C-C MACHINES*
Hydraulic log lift included – 450lb lift capacity
Hydraulic wedge height adjustment
Hydraulic conveyor exit = approximately 6′ at 45 degree angle
Removable 4 way wedge included (6 or 12 way optional)
Removable draw bar with 2 inch hitch ball coupler
45 MPH recommended max towing speed
4.8″ x 12″ rims, 21” radial tires, Dexter hubs and spindles
Weight: 1850 LB

Shipping

Our 28C-C and 35C-C splitters can ship via partial flatbed / hotshot trucking. If you have a freight terminal near you we can arrange freight to that location. Or, if a semi truck can get to your address, we can arrange a shipment with liftgate service. You could also pick up your new machine from the closest Wolfe Ridge dealer. Check out our dealer locator.
Please note:

If you have a machine shipped via partial flatbed or hotshot, you will need a piece of equipment for unloading. Such as a forklift, tractor or skid steer with pallet forks and sufficient lifting capacity.
If you have your machine shipped LTL on a pallet, we can also offer optional liftgate service. Your new machine would get unloaded at the end of your driveway closest to the road – provided a semi truck can get to your address.
