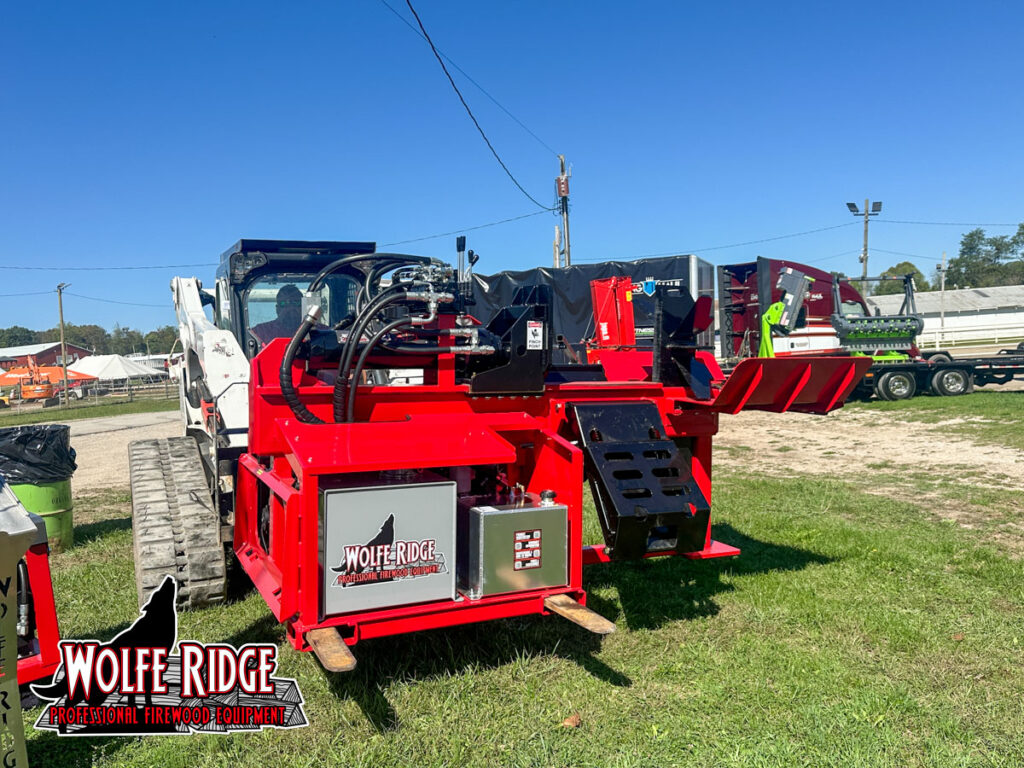

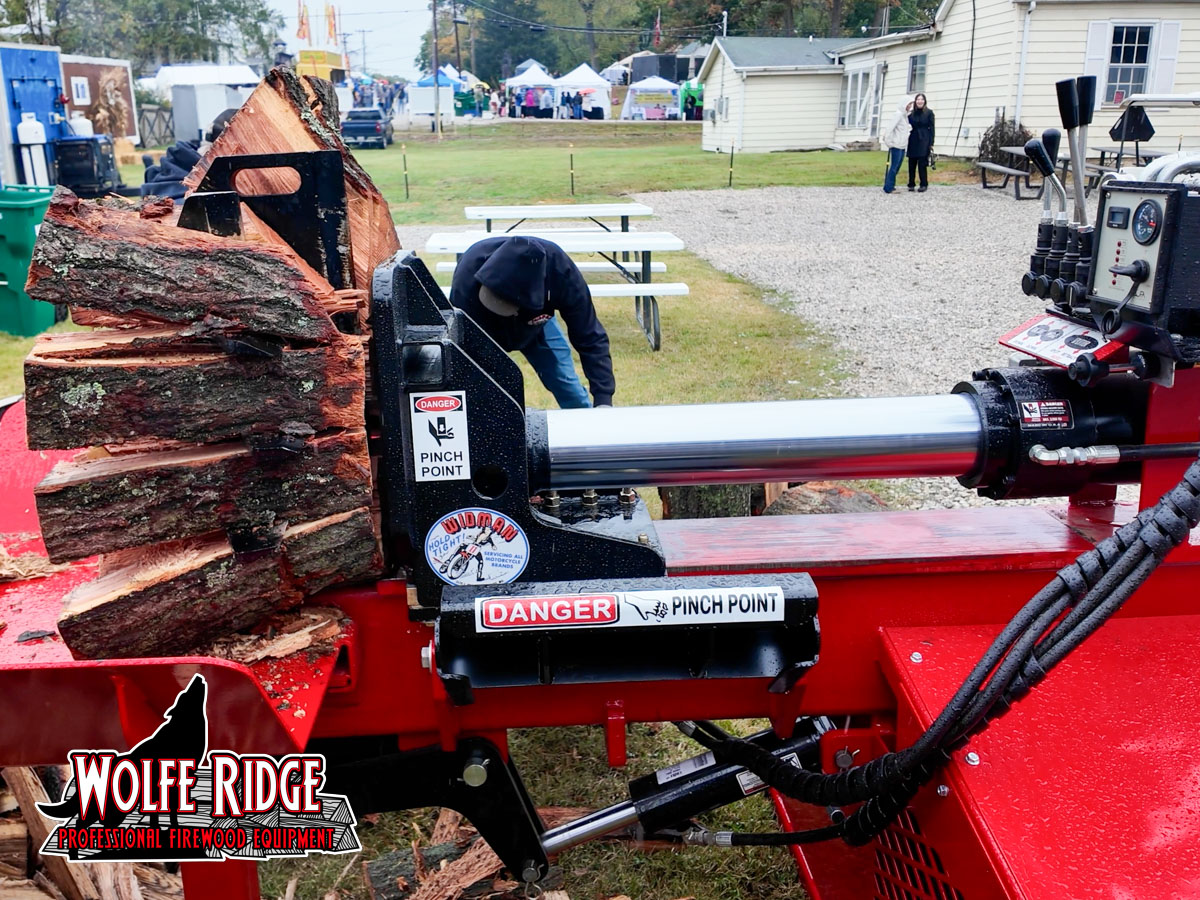

42 XDI - Extreme Duty Industrial Log Splitter

With several design features borrowed from the Wolfe Ridge Heavy Duty Industrial log splitter, our Extreme Duty Industrial takes it to the next level! The XDI has an extremely heavy duty in-house welded / fabricated splitter beam, massive 18 inch tall push block, and 42 tons of splitting force! Built on a skid frame, it can be moved with a standard SSQA (skid steer quick attach) or by using the built-in pallet fork pockets. The XDI is built with either a Honda iGX800 v-twin engine or Kubota D902 diesel engine. Both versions use a custom 2-section 38GPM hydraulic pump.

The XDI frame features a full “roll cage” to protect the engine and pump package from damage. Built to last, made in the USA, all Wolfe Ridge machines are produced with top-quality materials to ensure reliable performance, day in and day out. The XDI from Wolfe Ridge is loaded with features that make it user-friendly and industrial jobsite tough!

42 tons of splitting force!
Magnum Big Bore 6×26 cylinder with fast return
- 42 XDI = 8.5 second cycle time
Heavy duty welded frame with SSQA mount and pallet fork pockets
Powerful Honda or Kubota engine for consistent performance
Easy-to-use controls – Walvoil auto cycle valve
Hydraulic log lift as standard equipment
Hydraulic wedge height adjustment as standard equipment
Hydraulic oil cooler with fan as standard equipment
Electric start as standard equipment
Sandblasted and powder coated for a tough, long lasting appearance
- Red, Orange, Gray, or Blue as standard color options
- Custom colors with any RAL color code for added fee
1 year warranty on machine – 3 year on engine

The Extreme Duty Industrial log splitter from Wolfe Ridge is built for the most demanding firewood producers in an industrial setting. Split any hardwoods with ease while enjoying fast cycle times! Invest in a high-quality, made in USA log splitter that delivers exceptional results every time.

Tech Specs

Two engine options
- Honda iGX800 25HP v-twin with 38GPM pump | 6 gallon fuel tank
- Kubota D902 diesel engine with 38 GPM pump | 13 gallon fuel tank
12 volt electric start with Interstate battery
38 GPM custom two-section hydraulic pump
NEW high capacity 30 gallon steel hydraulic oil tank with cartridge return filter
Walvoil auto cycle valve
Magnum big bore package with 18 inch tall push block!
- Bronze self lube slides on push block
In-house welded & fabricated splitter beam
26 inch stroke length – 8.5 second cycle time
Hydraulic log lift included – 600lb lift capacity
Hydraulic wedge height adjustment – NEW processor style wedges
Hydraulic oil cooler with 12 volt fan and thermostat
*MUST CHOOSE WEDGE(S) AT TIME OF ORDER*
- 4-way traditional
- 8-way traditional
- 16-way traditional*
  - *For best performance and split quality, we recommend straight grain / straight cut rounds 18 inch diameter or less
- Box Wedge options in development – available SOON
SSQA mount plate welded to frame
Pallet fork pockets
4’ x 8’ overall size
Weight: 2,500 lb

Shipping

Our horizontal splitters can ship on a pallet, or via partial flatbed / hotshot trucking. If you have a freight terminal near you, we can arrange freight to that location. Or, if a semi truck can get to your address, we can arrange a shipment with liftgate service. You could also order your new machine from the closest Wolfe Ridge dealer. Check out our dealer locator.
Please note:

If you have a machine shipped via partial flatbed or hotshot, you will need a piece of equipment for unloading. Such as a forklift, tractor or skid steer with pallet forks and sufficient lifting capacity.
If you have your machine shipped LTL on a pallet, we can also offer optional liftgate service. Your new machine would get unloaded at the end of your driveway closest to the road – provided a semi truck can get to your address.
