Wolfe Ridge IC-16 Infeed Conveyor Hopper

Get firewood rounds to your splitter quicker and easier with the Wolfe Ridge IC-16 Infeed Conveyor Hopper! Our infeed conveyor hoppers are cut, fabricated, and welded in house at our factory in Eau Claire, Wisconsin, USA. The IC-16 Conveyor Hopper includes a hydraulic motor with flow control and will connect to your wood splitter’s log lift circuit (in place of your existing log lift cylinder). Double chain drive conveyor system with heavy duty paddles for moving a large quantity of rounds with ease! The IC-16 can also be used to move loads of split firewood toward your packaging station!

Now available in 2 configurations!

Standard configuration
- Adjustable height legs with pivoting feet

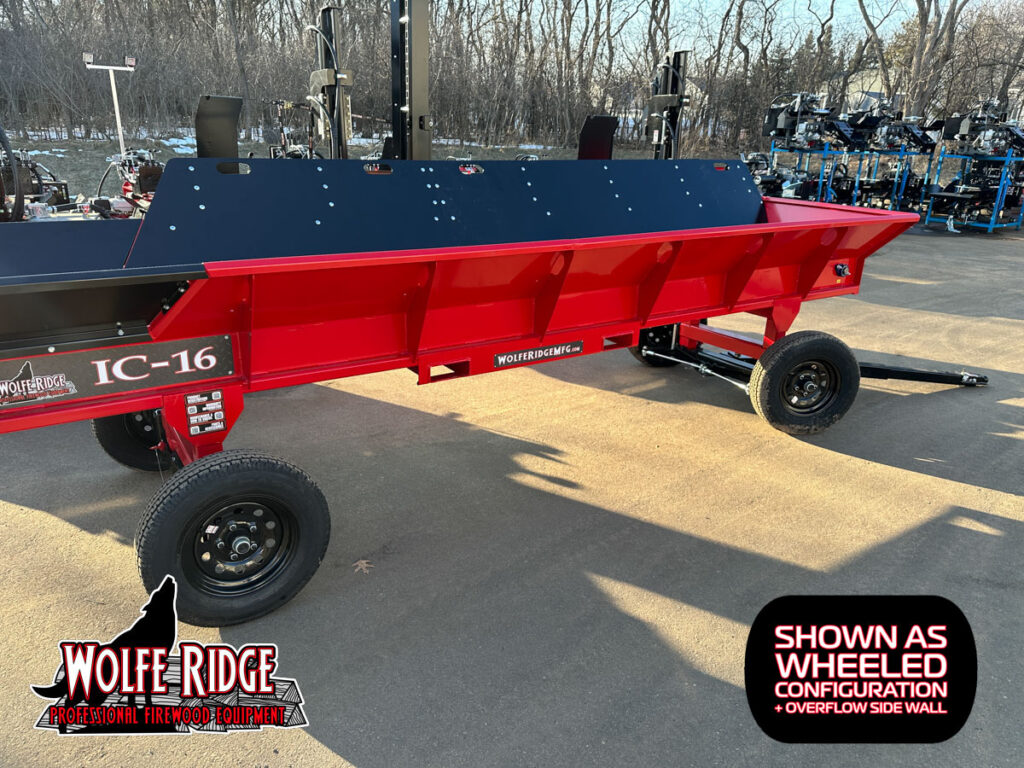

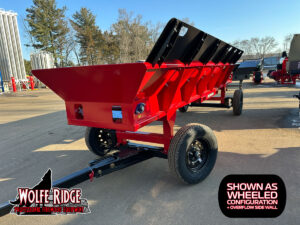

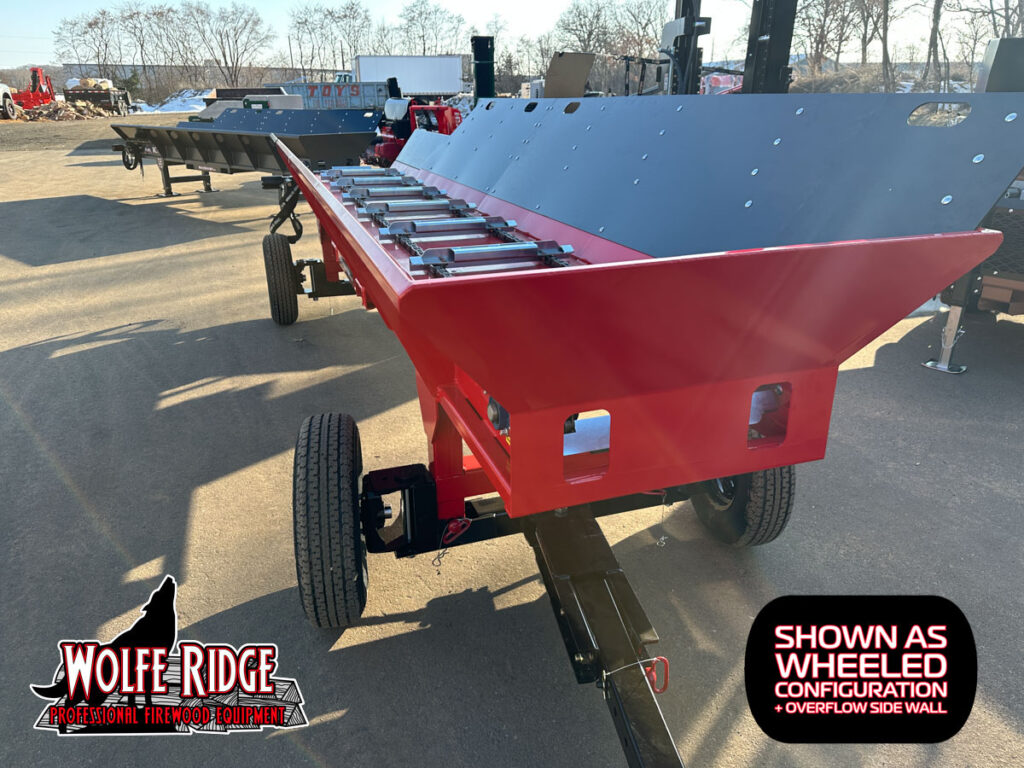

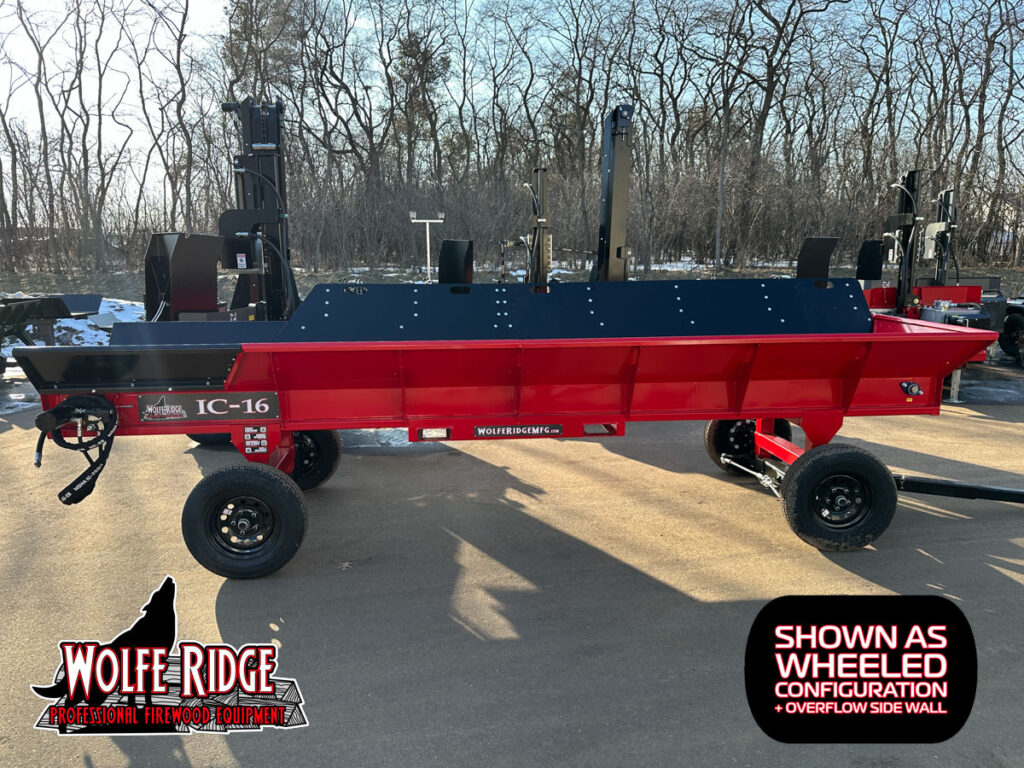

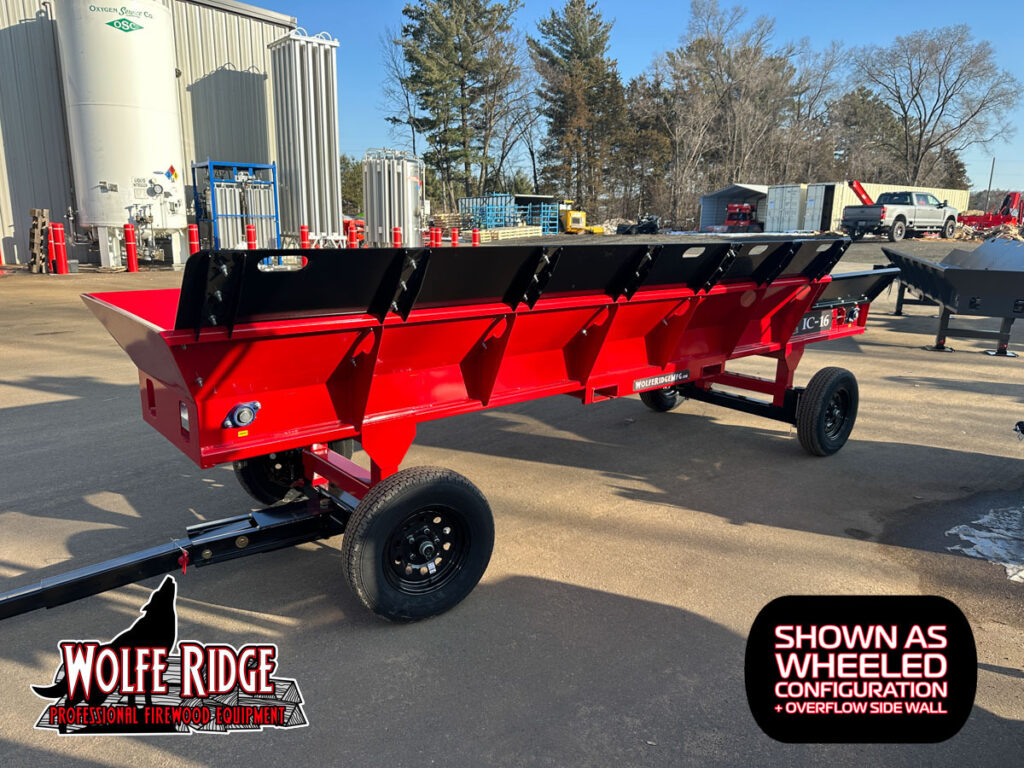

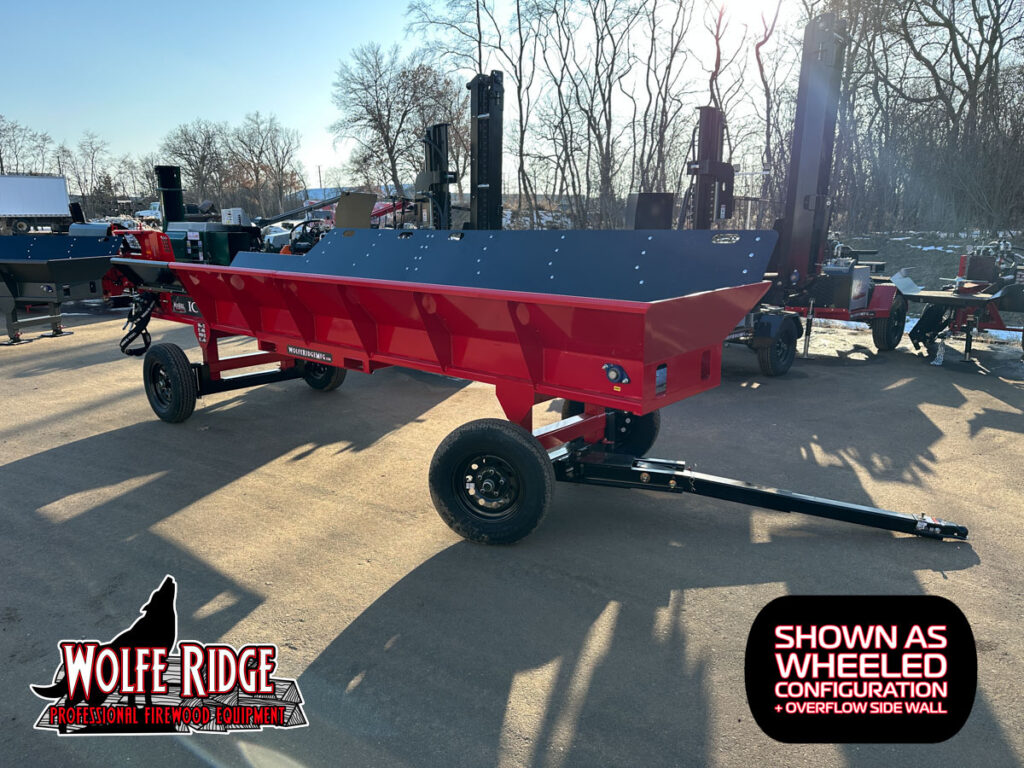

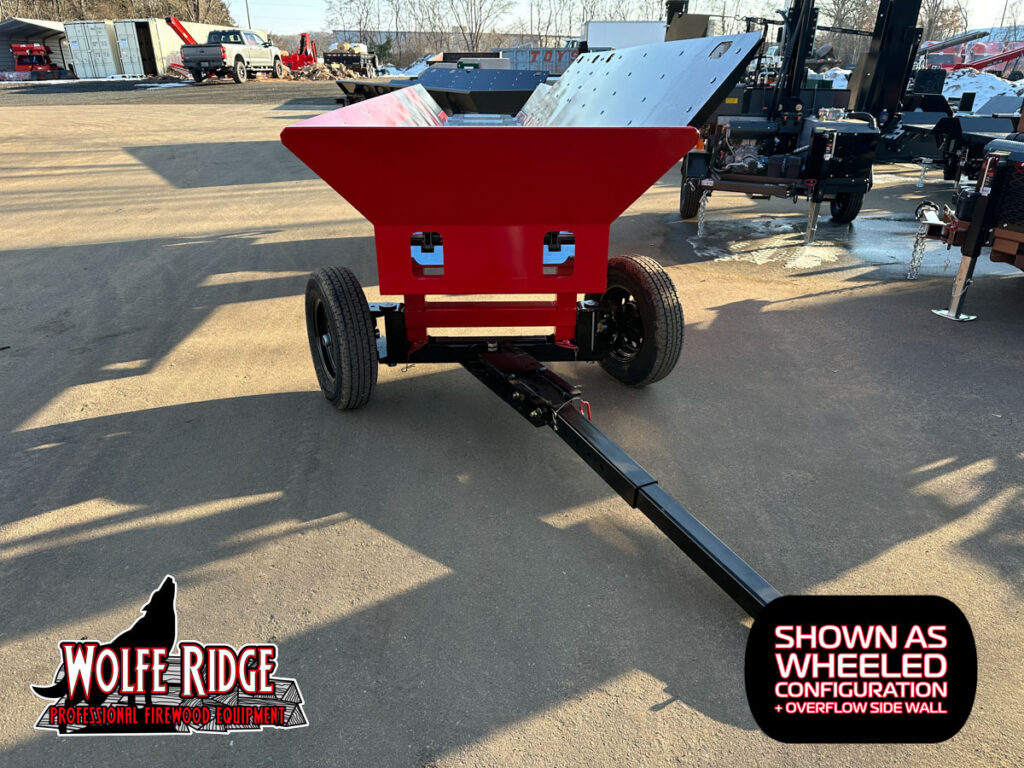

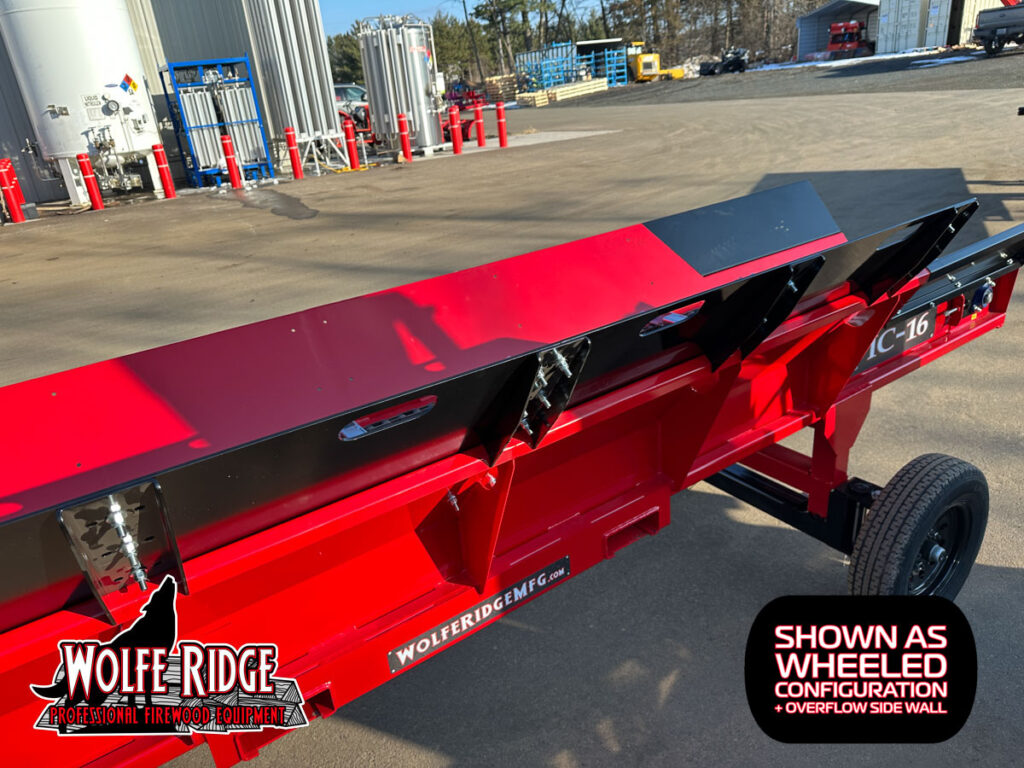

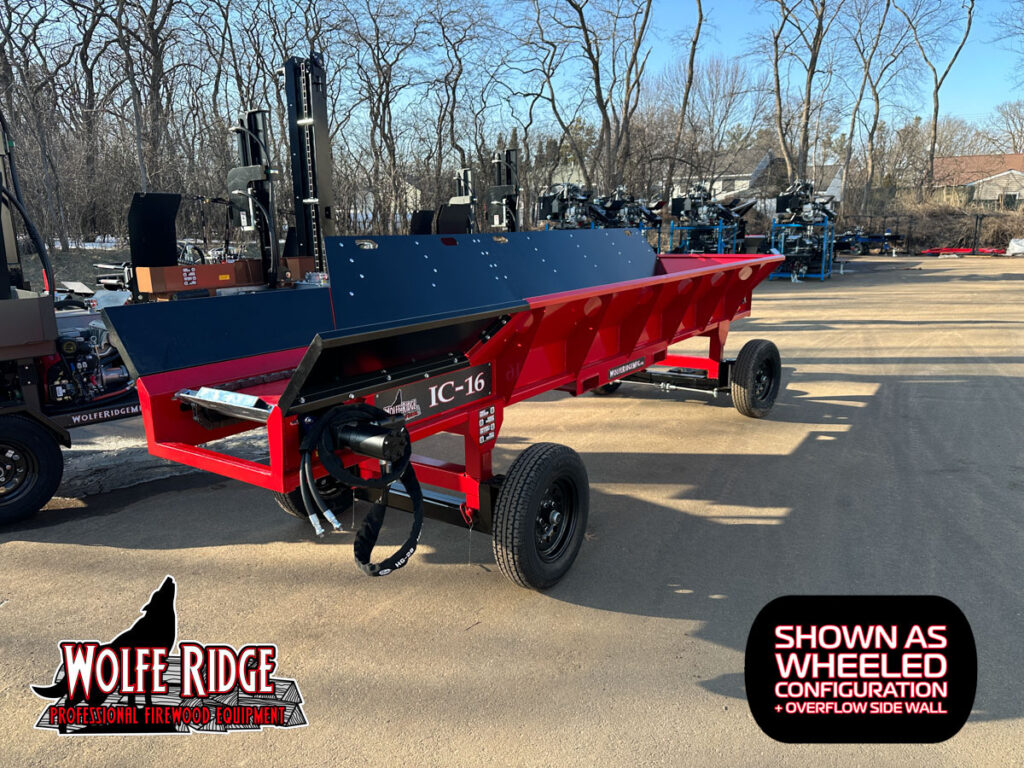

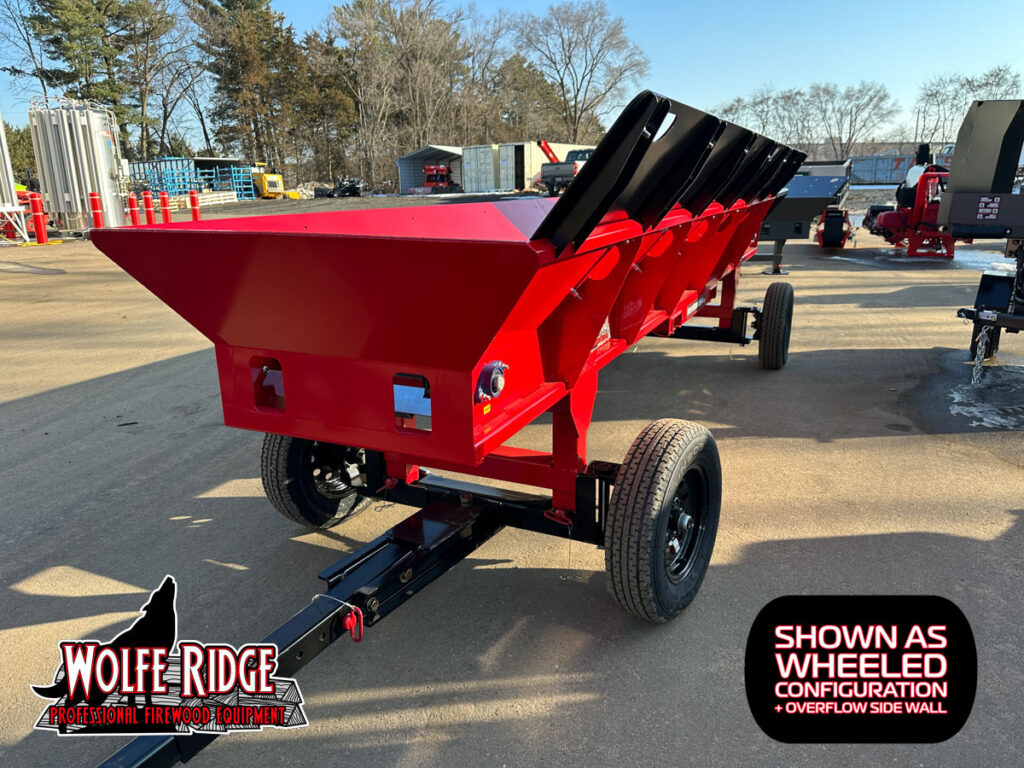

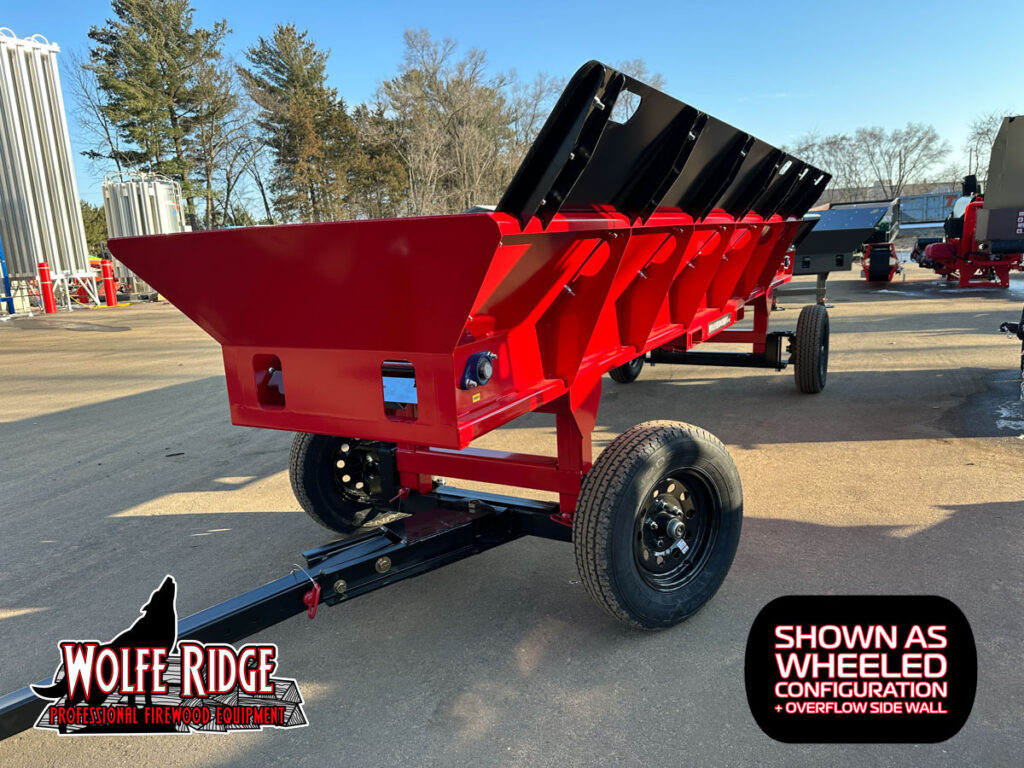

Wheeled configuration
- Front and rear axles in place of legs

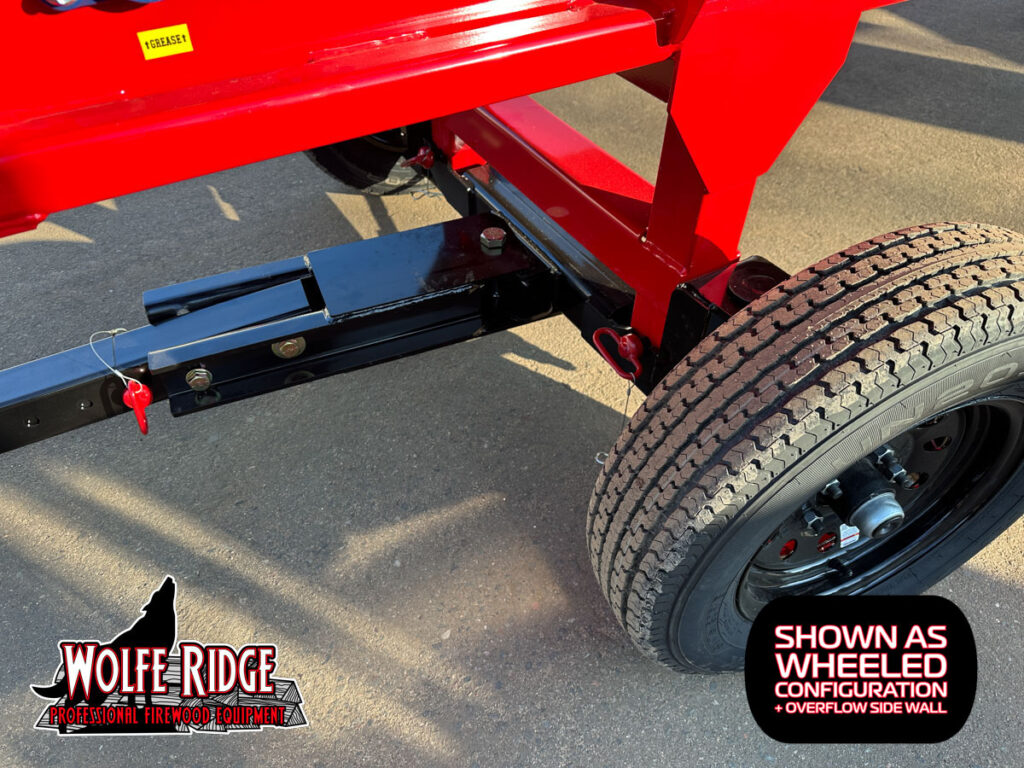

- Four wheels and tires with pivoting front axle

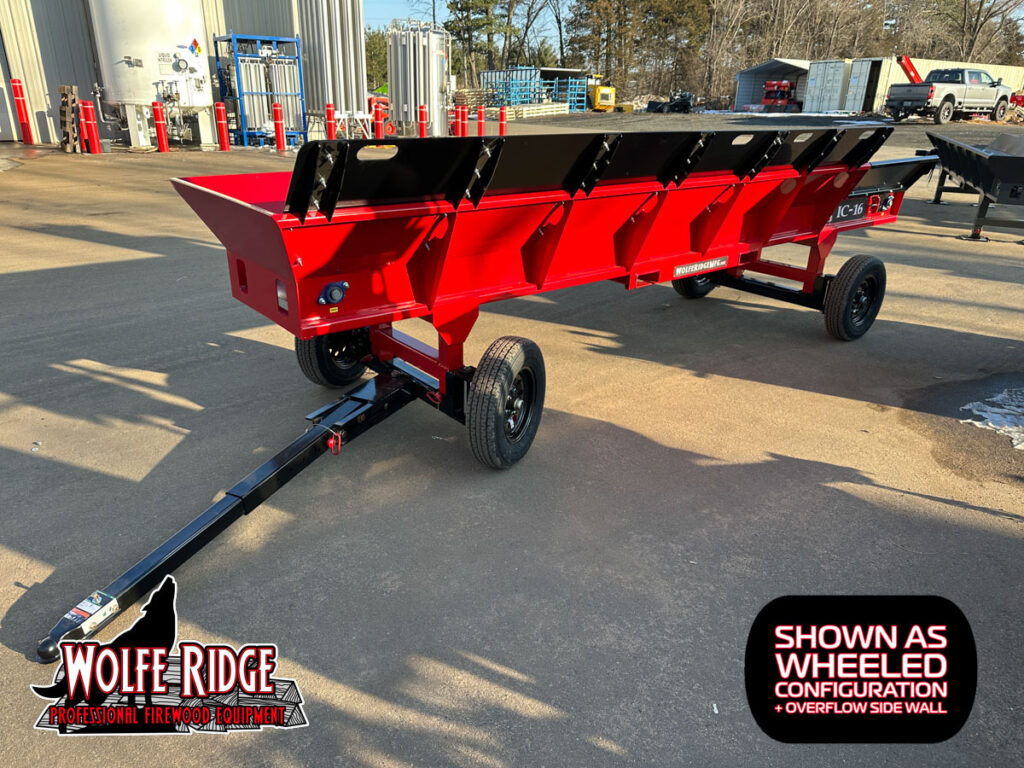

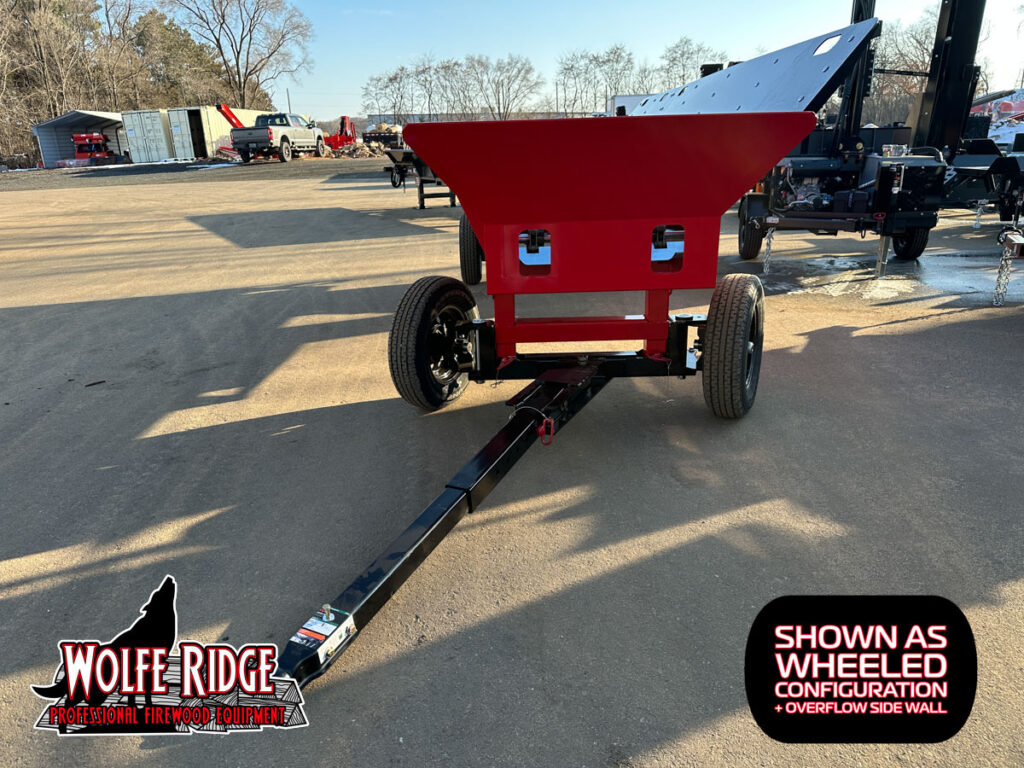

- Haywagon style drawbar with up and down pivot action

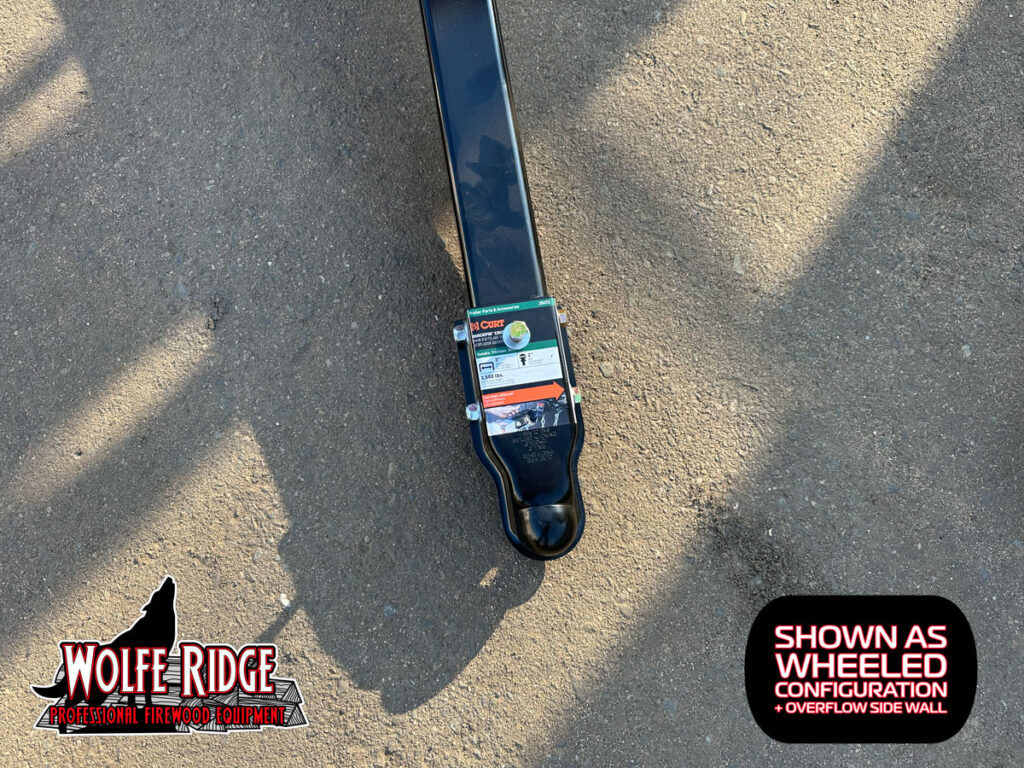

- 2 inch hitch coupler
- ** LEGS ARE NOT INCLUDED WITH THE WHEELED CONFIGURATION **

Tech Specs

Heavy duty 16 foot long hopper bed
Removable outfeed side panels
Pallet fork pockets on both configurations
*REQUIRES EXTERNAL HYDRAULIC SOURCE, CONTROL, AND FITTINGS*
- Includes hoses with female 3/8 NPT thread ends – add your own fittings

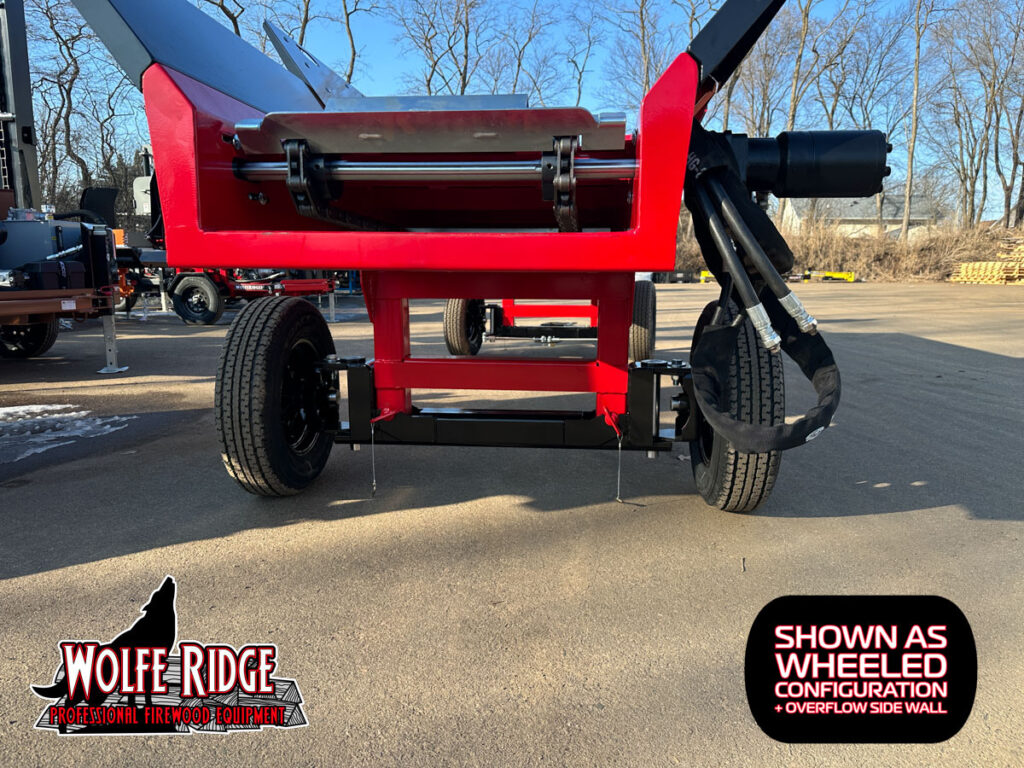

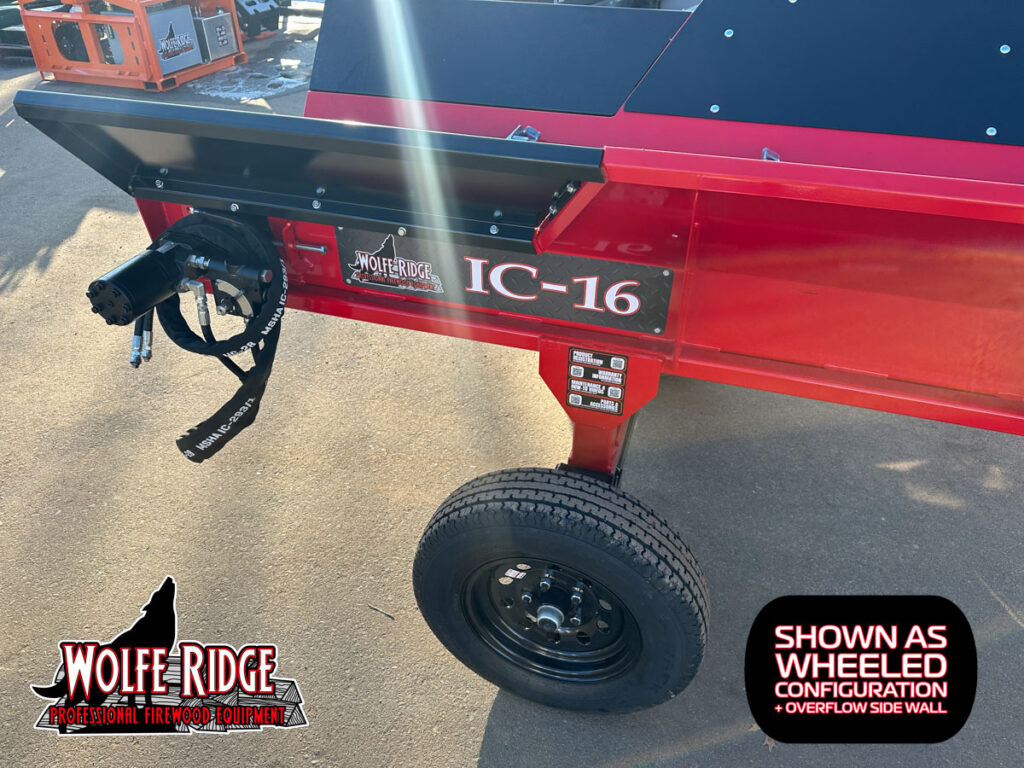

- Included 500cc hydraulic motor with adjustable flow control
- Optional flat-face quick connector kit available – includes 6 fittings
Optional slide-on staging table available for most Wolfe Ridge splitters
Optional side wall extension – can be added to either side of hopper to extend height

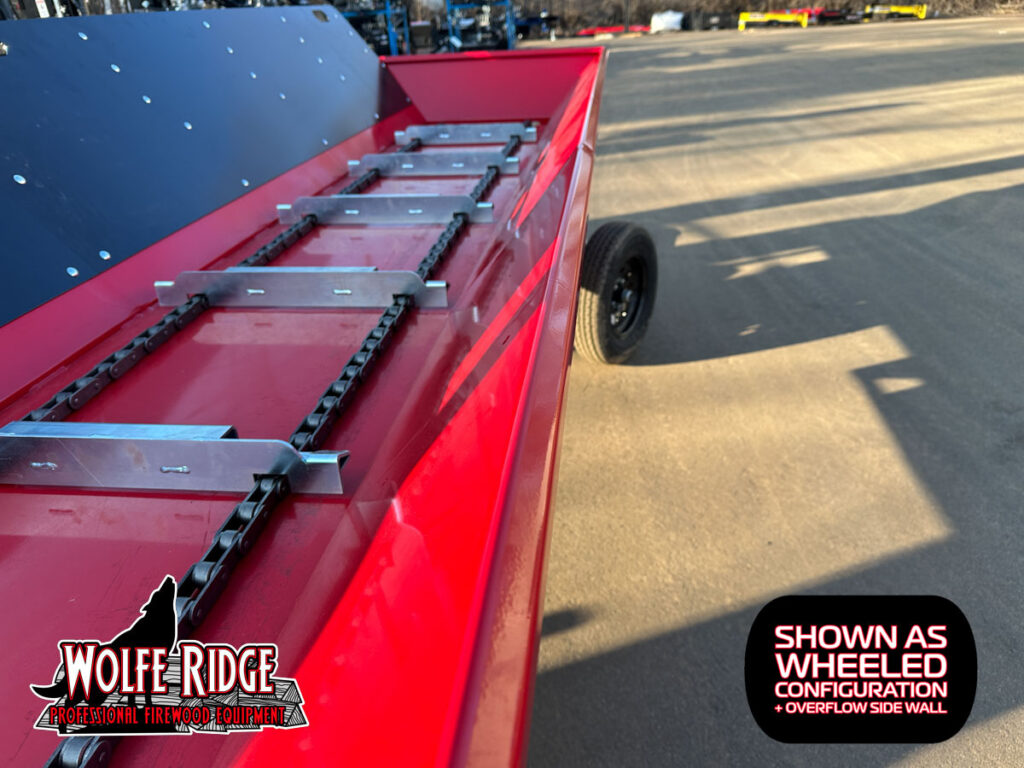

Heavy duty bolt-on paddles
IC-16 = 8 foot max exit height*
Approx weight standard configuration: 2,200LB
Approx weight wheeled configuration: 2,700LB
Sandblasted and powder coated for a tough, long lasting appearance
- Red, Orange, Gray, or Blue as standard color options
- Custom colors with any RAL color code for added fee
1 year warranty

If you already have a commercial log splitter, an IC-16 infeed conveyor from Wolfe Ridge can take your operation to the next level! Invest in a high-quality, made in USA, firewood infeed conveyor hopper that you can rely on day in and day out.

Shipping

Our firewood conveyors and infeed conveyor hoppers ship via partial flatbed / hotshot trucking. If a semi truck / hotshot can get to your address, we can arrange delivery to your location. You could also order and pick up your new conveyor from the closest Wolfe Ridge dealer – they may even have one in stock! Check out our dealer locator.

Please note:

If you have a machine shipped via partial flatbed or hotshot, you will need a piece of equipment for unloading. Such as a forklift, tractor or skid steer with pallet forks and sufficient lifting capacity.
